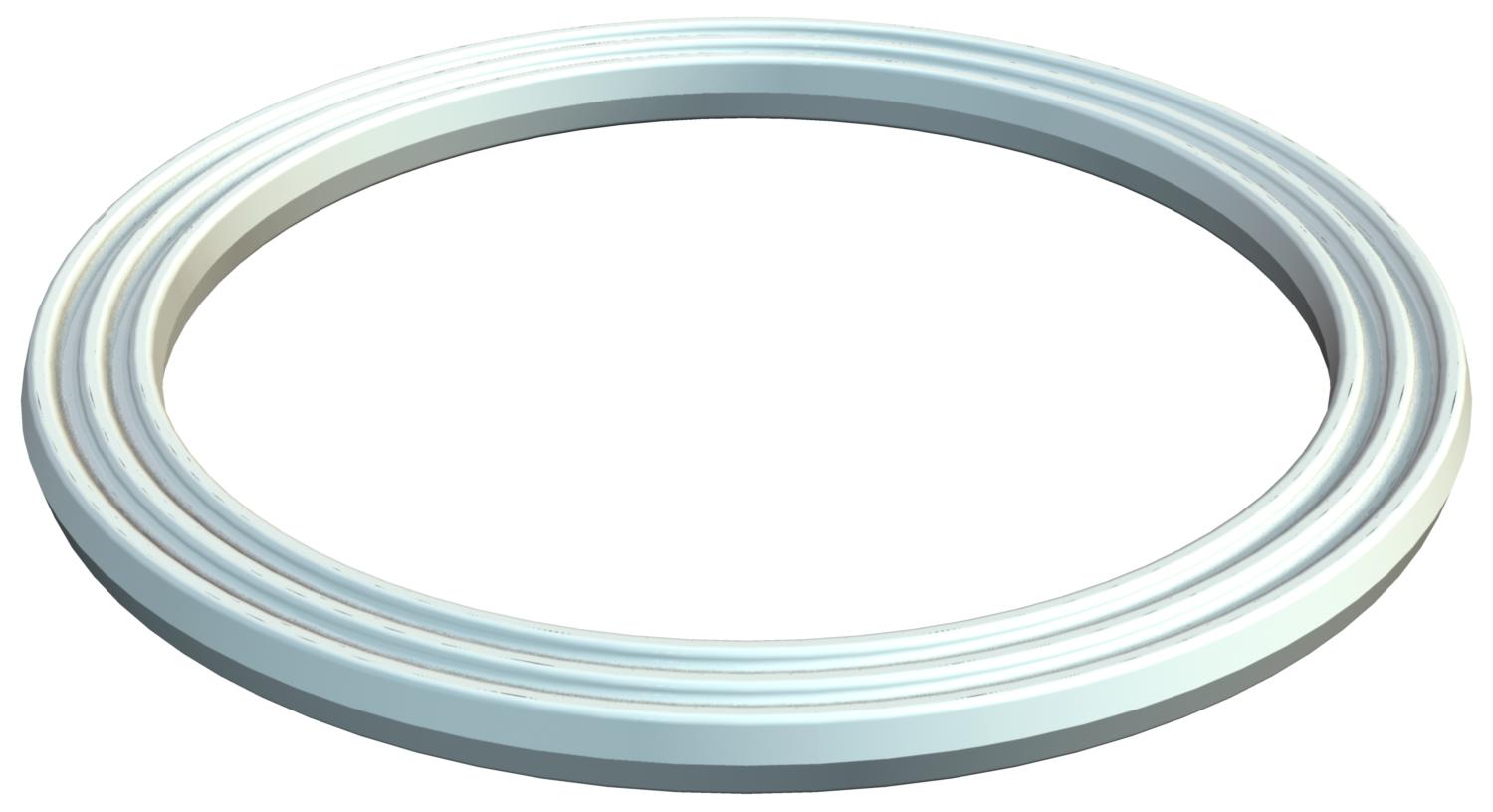

Connection thread sealing ring, metric 37.6 | 32 | 1.7

Connection thread sealing ring, metric

Item no. 2030020 | EAN 4012195376156

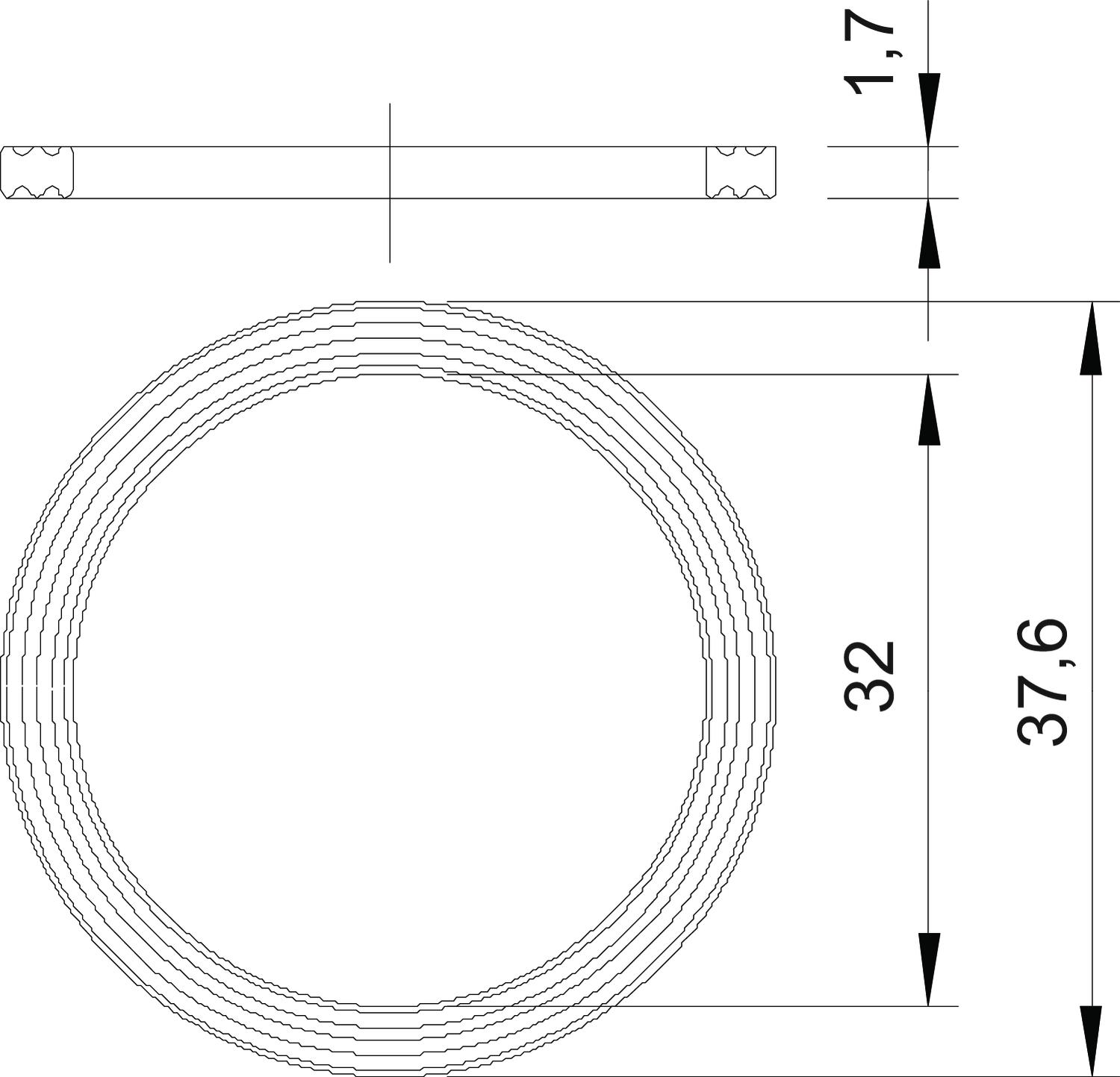

Item no. / Types

Dimension D1

Dimension D2

Dimension t

Product description

Product description

Connection thread sealing ring, suitable for all plastic cable glands, with metric thread according to DIN EN 60423 or ISO 68. The internal diameters of the sealing rings are designed in such a way that they can be pre-mounted in a captive manner.

Technical data

Technical data

Dimension	M32
Dimension D1	37,6 mm
Dimension D2	32 mm
Dimension t	1,7 mm
External diameter	37,6 mm

Inner diameter	32 mm
Material	Polyethylene
Suitable for metric thread dimension	32
Thickness	1,7 mm
Version for	Flat sealing ring

All types

All types

Types	Dimension D1	Dimension D2	Dimension t	Item no.	Quantity	SSU
107 F M12 PE	16.3 mm	12 mm	1 mm	2030004	piece	100 piece
107 F M16 PE	20.9 mm	16 mm	1.1 mm	2030008	piece	100 piece
107 F M20 PE	25.1 mm	20 mm	1.1 mm	2030012	piece	100 piece
107 F M25 PE	31.3 mm	25 mm	1.4 mm	2030016	piece	100 piece
107 F M32 PE	37.6 mm	32 mm	1.7 mm	2030020	piece	100 piece
107 F M40 PE	49.1 mm	40 mm	1.7 mm	2030024	piece	100 piece
107 F M50 PE	60.1 mm	50 mm	2 mm	2030028	piece	100 piece
107 F M63 PE	73.8 mm	63 mm	2 mm	2030032	piece	100 piece
