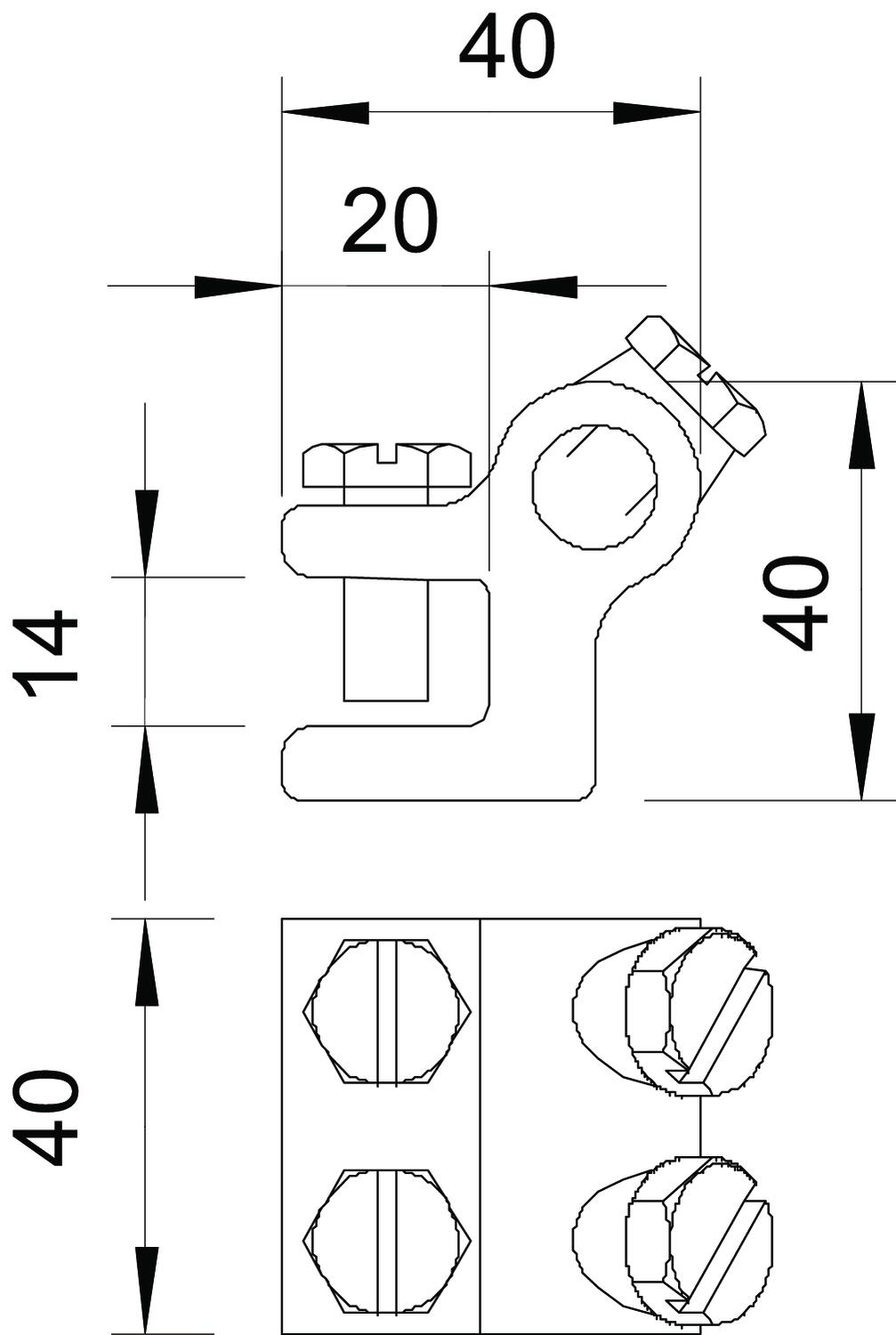

Connection terminal to 14 mm
Item no. 5318149 | EAN 4012195421092
- Product description
-
Product description
• Flange thickness to 8 and/or 14 mm
• With 4 hexagonal bolts M8
• Conforms to the requirements according to DIN V VDE V 0185-3, Section 4.5
-
- Technical data
-
Technical data
Clamping range, max. 14 mm Dimension 14mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material cast steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Hot-dip galvanised Type of connector Connection terminal Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 272 14 / 5318149 , 0.18MB , pdfDeclaration of conformity 272 14 / 5318149 , 0.06MB , pdfREACH Declaration of conformity 272 14 / 5318149 , 0.12MB , pdfRoHS Declaration of conformity 272 14 / 5318149 , 0.12MB , pdf
