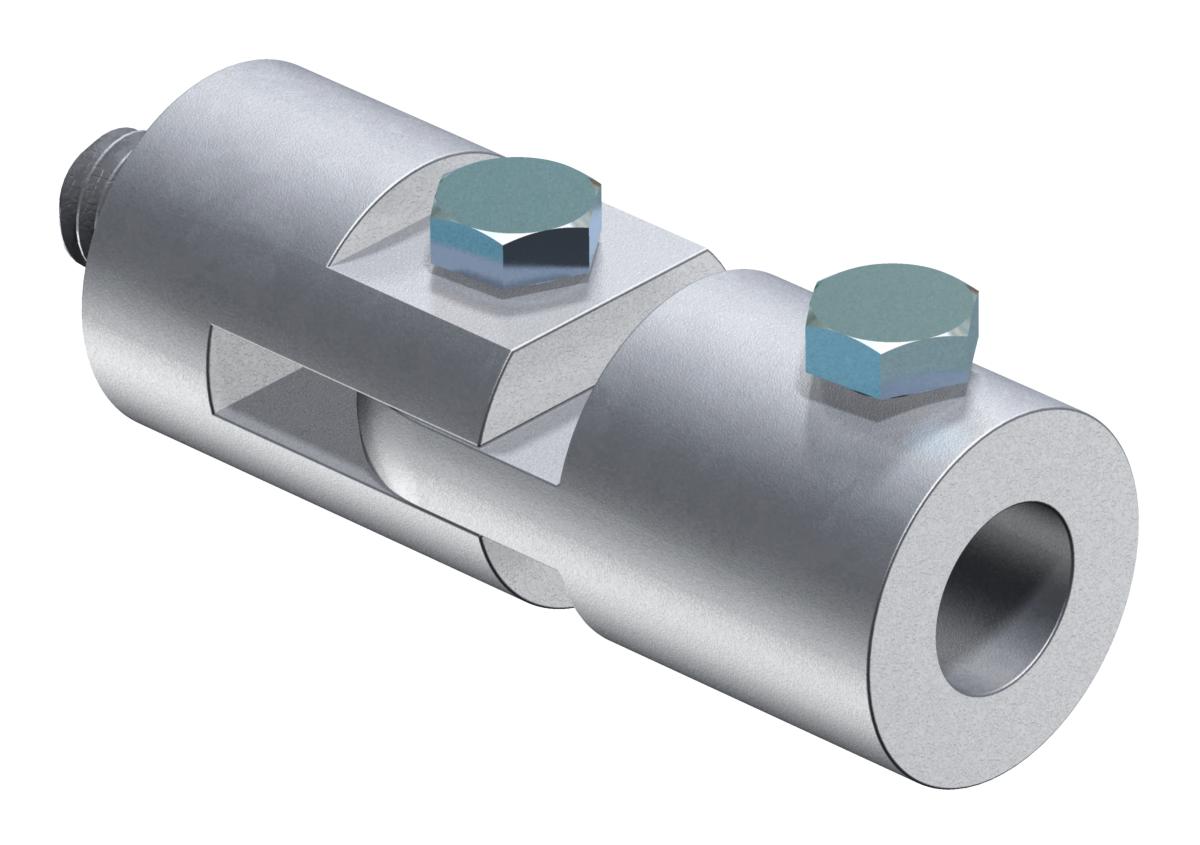

Connection joint
Item no. 5408504 | EAN 4012195674290
- Product description
-
Product description
• Attaching link for installation on concrete stones
• With thread M16 on slanting roof surfaces
• With M10 bolts
- Technical data
-
Technical data

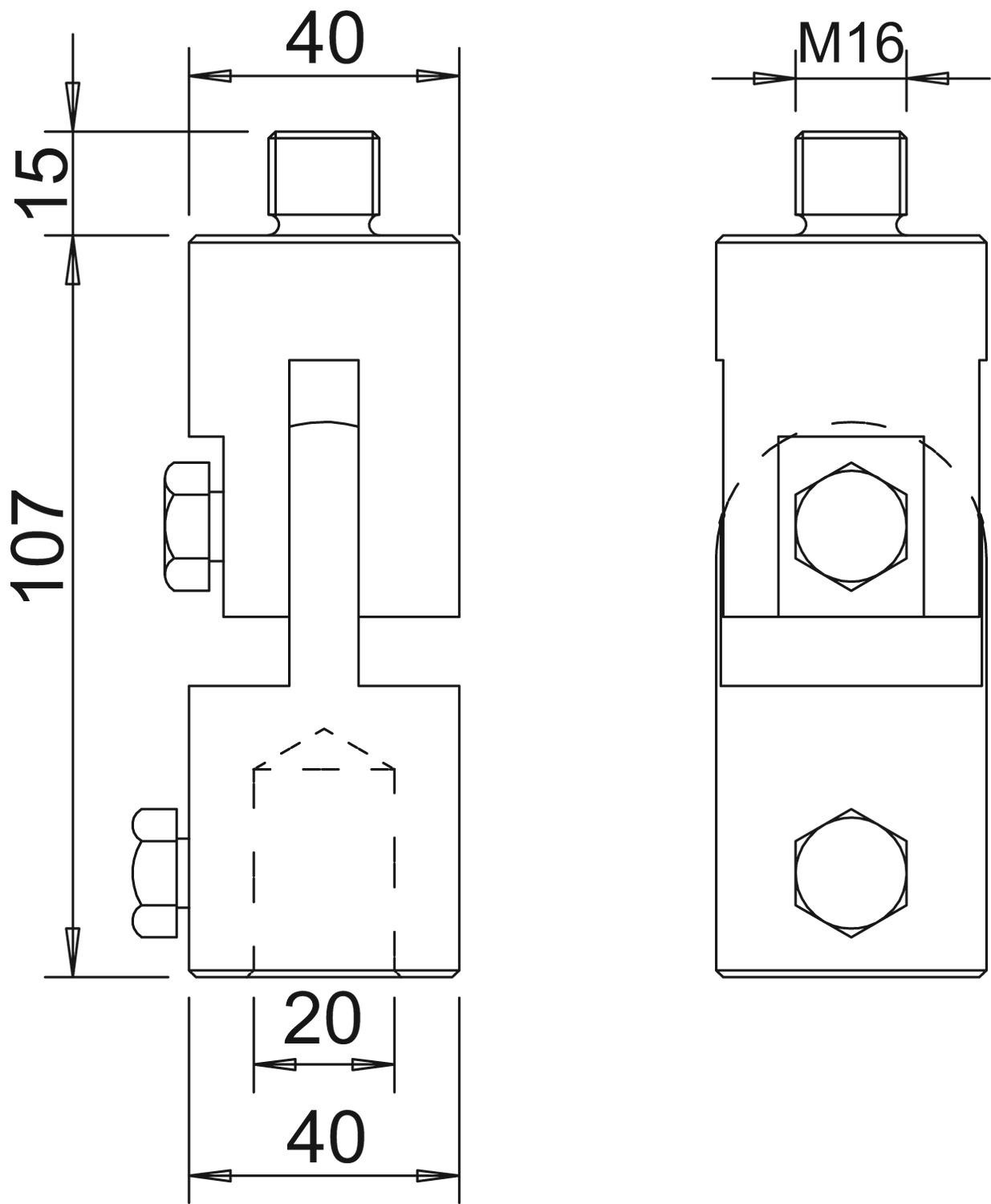

Connection Round conductor Dimension M16 Dimension d min. 40 mm Dimension d Ø 20 mm Dimension L 107 mm Length 107 mm Material Aluminium - All types
- Downloads
-
Data sheet 101 IAG / 5408504 , 0.15MB , pdf
