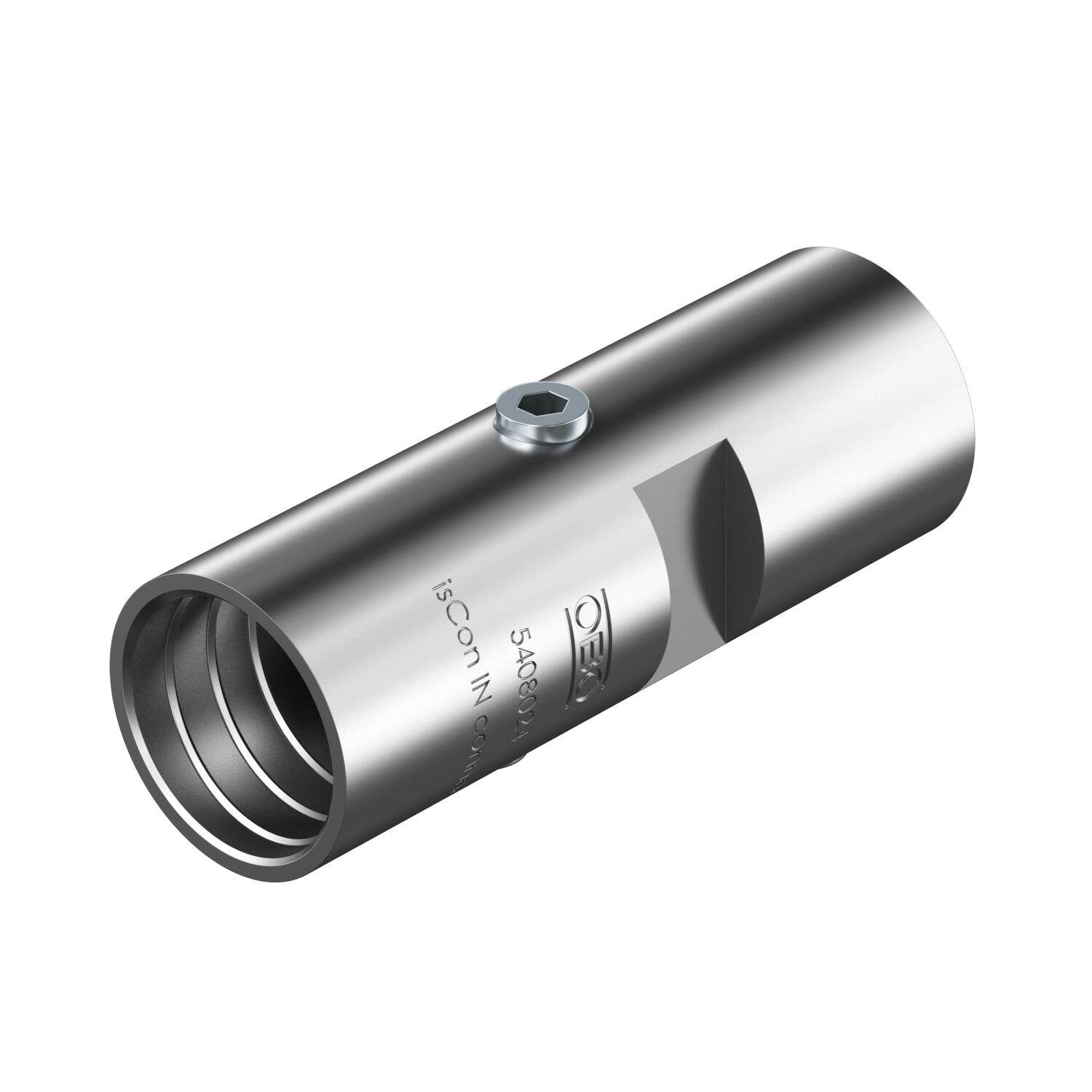

Connection element for installation in the insulated interception rod isFang IN
Item no. 5408024 | EAN 4012195864172
- Product description
-
Product description
• Screw-on termination of the connection for the isCon® cable
• Connection and installation of the cable in the insulated interception rod
• Tested up to 150 kA (lightning protection Class II)
-
- Technical data
-
Technical data
Clamping range, max. 23 mm Dimension Ø23mm Fit 23 mm Lightning current carrying capacity H1/150 kA Material Stainless steel Suitable for connection Miscellaneous Dimensions
Dimension d min. 28 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Stripping tool for isCon® conductor
isCon stripper 2 5408013 1 piece - Downloads
-
Data sheet isCon IN connect / 5408024 , 0.16MB , pdfDeclaration of conformity isCon IN connect / 5408024 , 0.06MB , pdfMounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdfSafety data sheet Safety datasheet, screw lock varnish , 2.00MB , pdf
