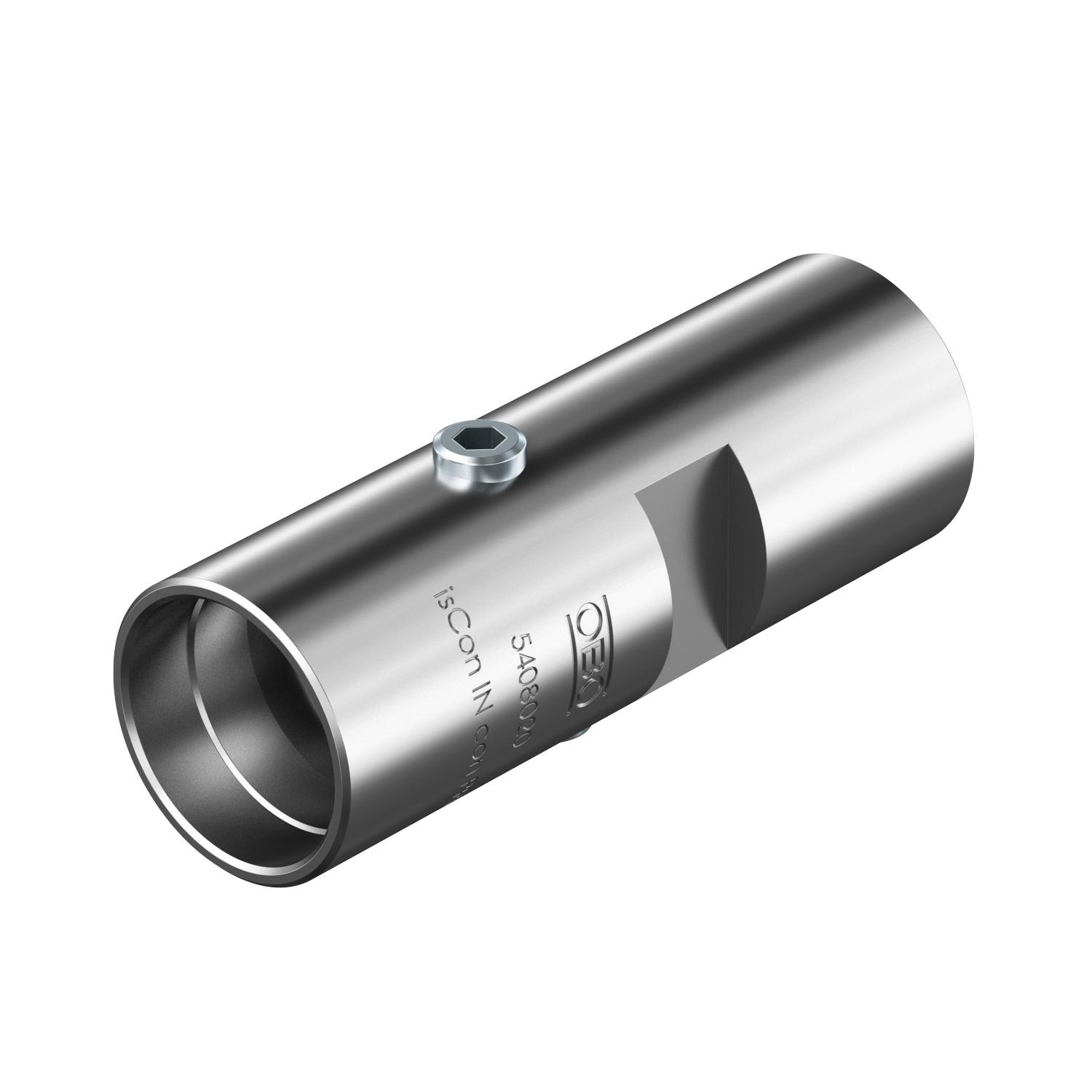

Connection element for installation in the insulated air-termination rod isFang IN
Item no. 5408020 | EAN 4012196591701
- Product description
-
Product description
• For the isCon® Premium conductor
• Cable connection and routing in the insulated air-termination rod
• Screw-on termination
• Including heat-shrinkable sleeve and hexagonal wrench
• Tested to up to 200 kA (lightning protection class I)
-
- Technical data
-
Technical data
Clamping range, max. 23 mm Dimension Ø23mm Fit 23 mm Lightning current carrying capacity H2/200 kA Material Stainless steel Suitable for connection Miscellaneous Dimensions
Dimension d min. 28 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Stripping tool for isCon® conductor
isCon stripper 2 5408013 1 piece - Downloads
-
Data sheet isCon IN con PRE / 5408020 , 0.18MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,Mounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdf
