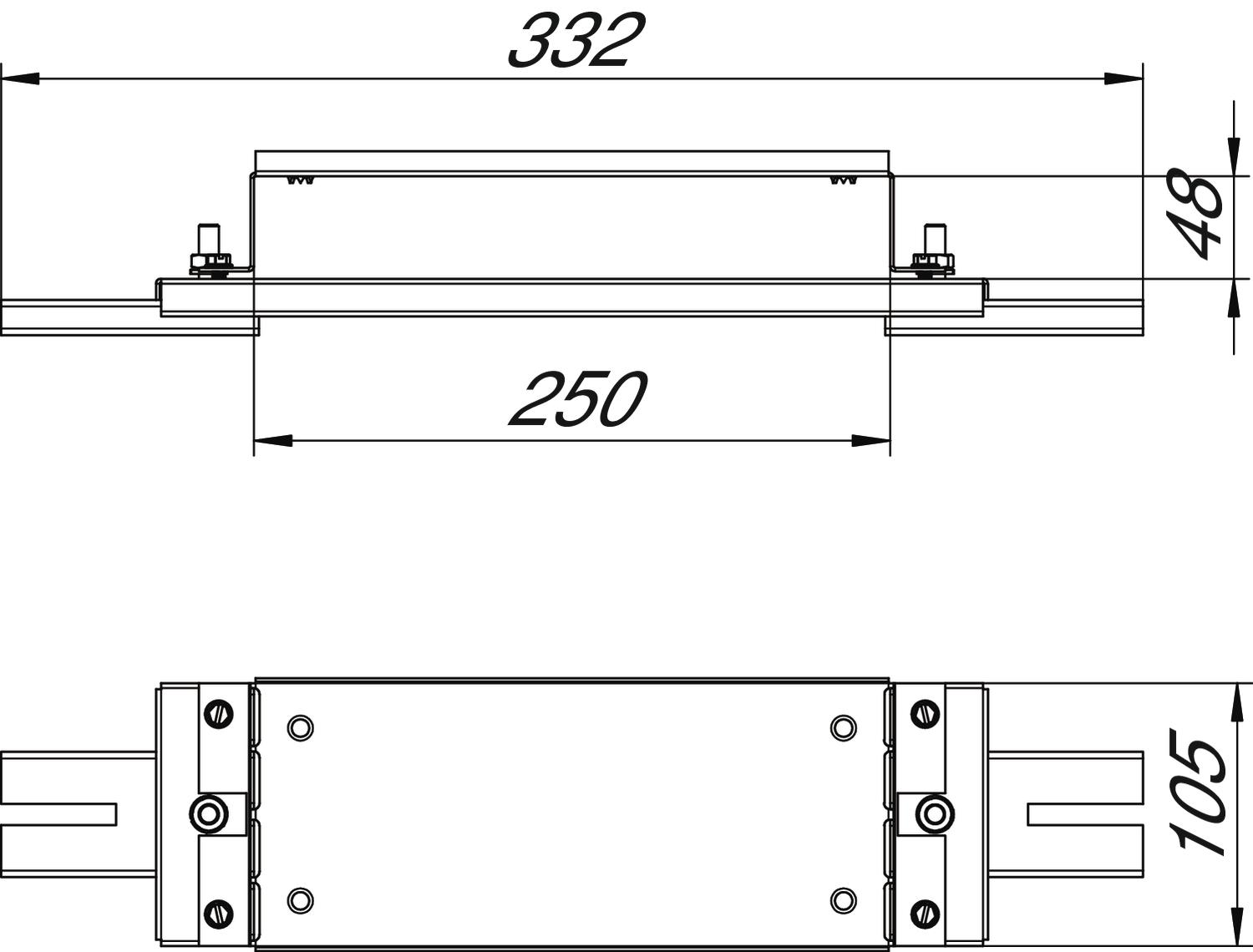

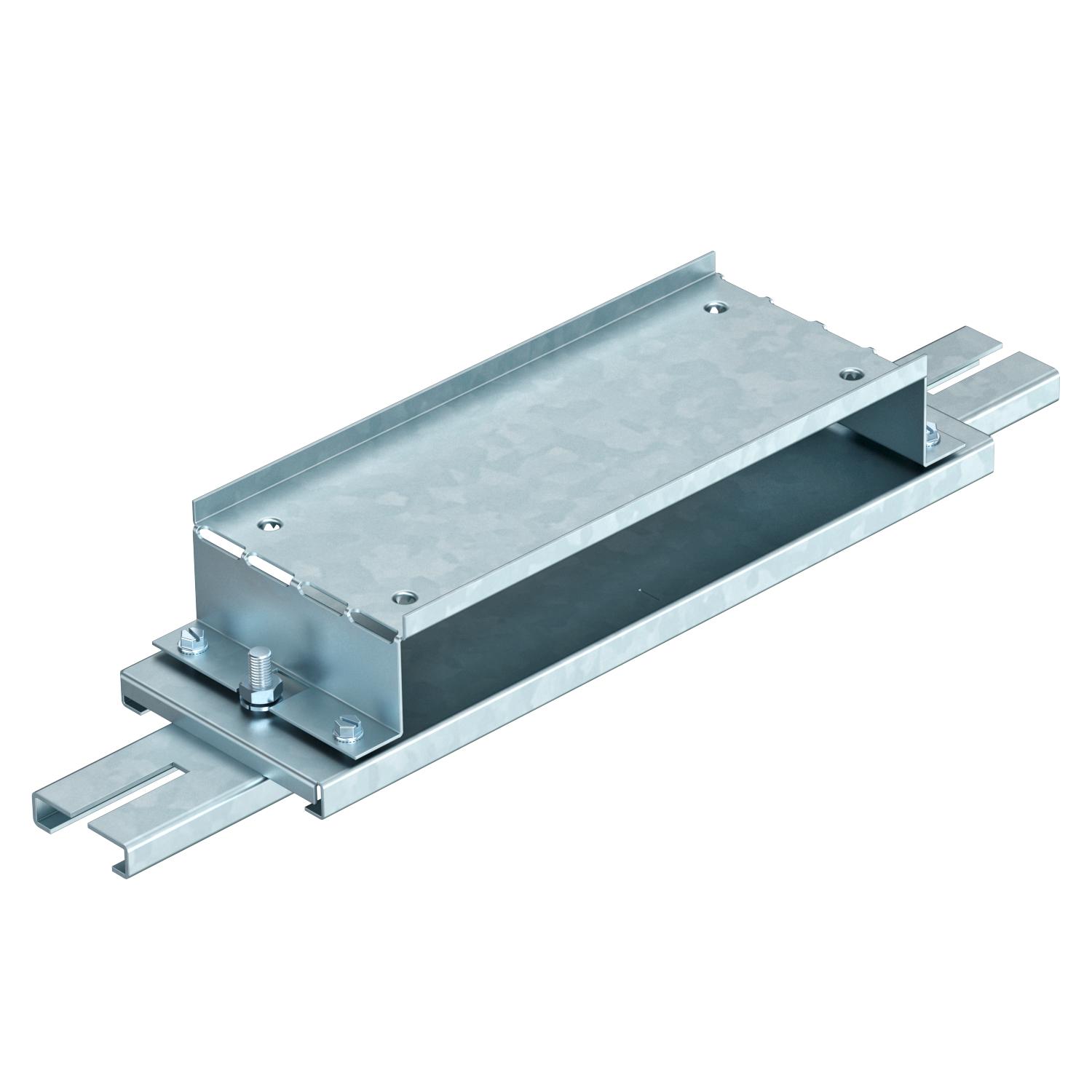

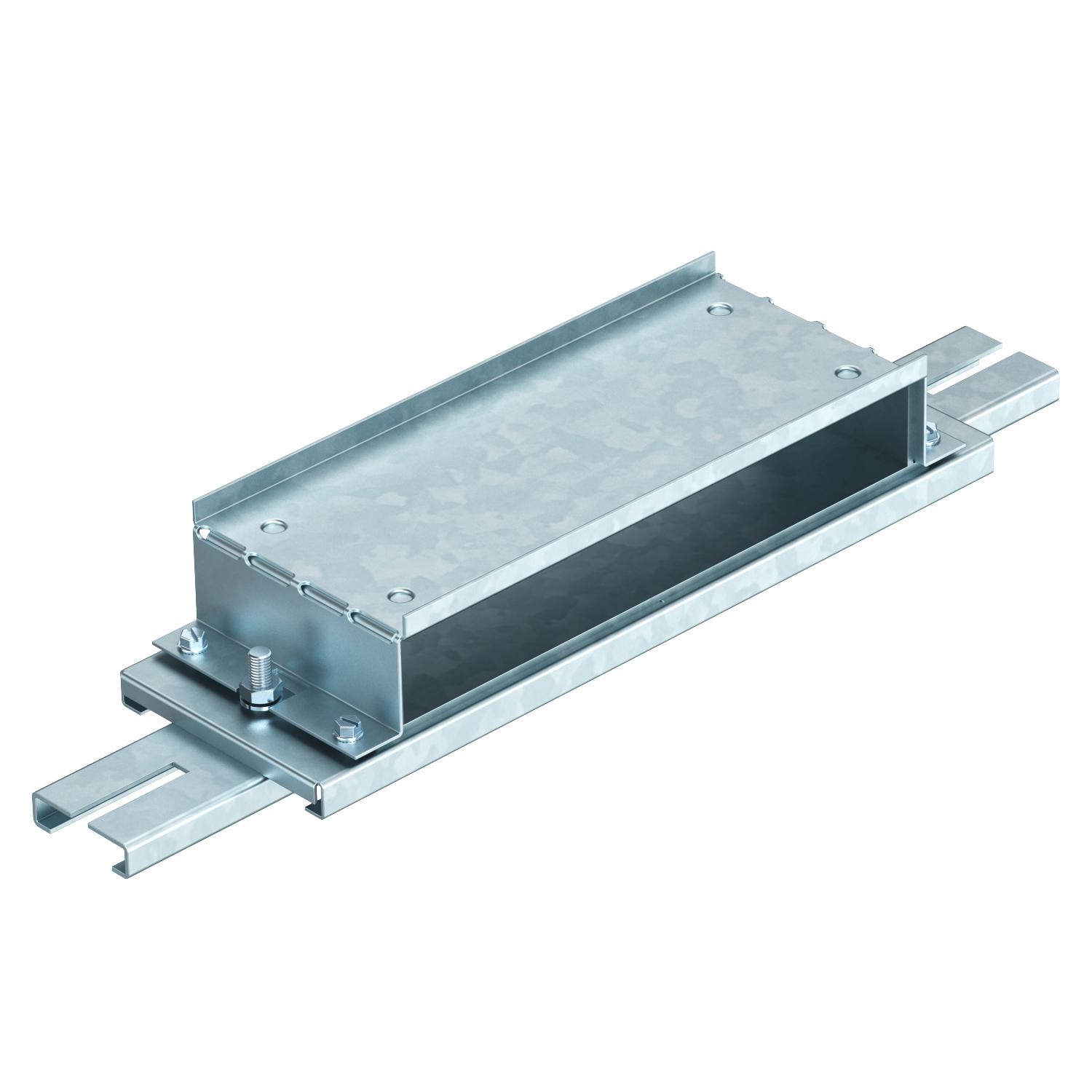

Connection element 48 mm

Item no. / Types

Width	105 mm

Trunking width, min.

Duct height, min.	48 mm

Product description

Product description

To connect underfloor installation ducts (width 250 mm)
With two adjustable seats for height-adjustment units.

Technical data

Suitable for expansion joint	no
Surface	Strip galvanized
Trunking width, min.	250 mm
Version for	Strap
Width	105 mm
With equipotential bonding	yes

All types

All types

Types	Width	Trunking width, min.	Duct height, min.	Item no.	Quantity	SSU
IBVE 25048	105 mm	250 mm	48 mm	7399892	piece	1 piece
IBVE 35048	105 mm	350 mm	48 mm	7399898	piece	1 piece

Downloads

Data sheet IBVE 25048 / 7399892 , 0.18MB , pdf

Brochure IBK in-concrete duct system , 2.10MB , pdf

Mounting instructions Im-Beton-Kanalsystem IBK , 3.27MB , pdf

IBVE 25048 / 7399892
