Connection component with double crossbar | N/50 | 8
morepic-1 morepic-2 video-1

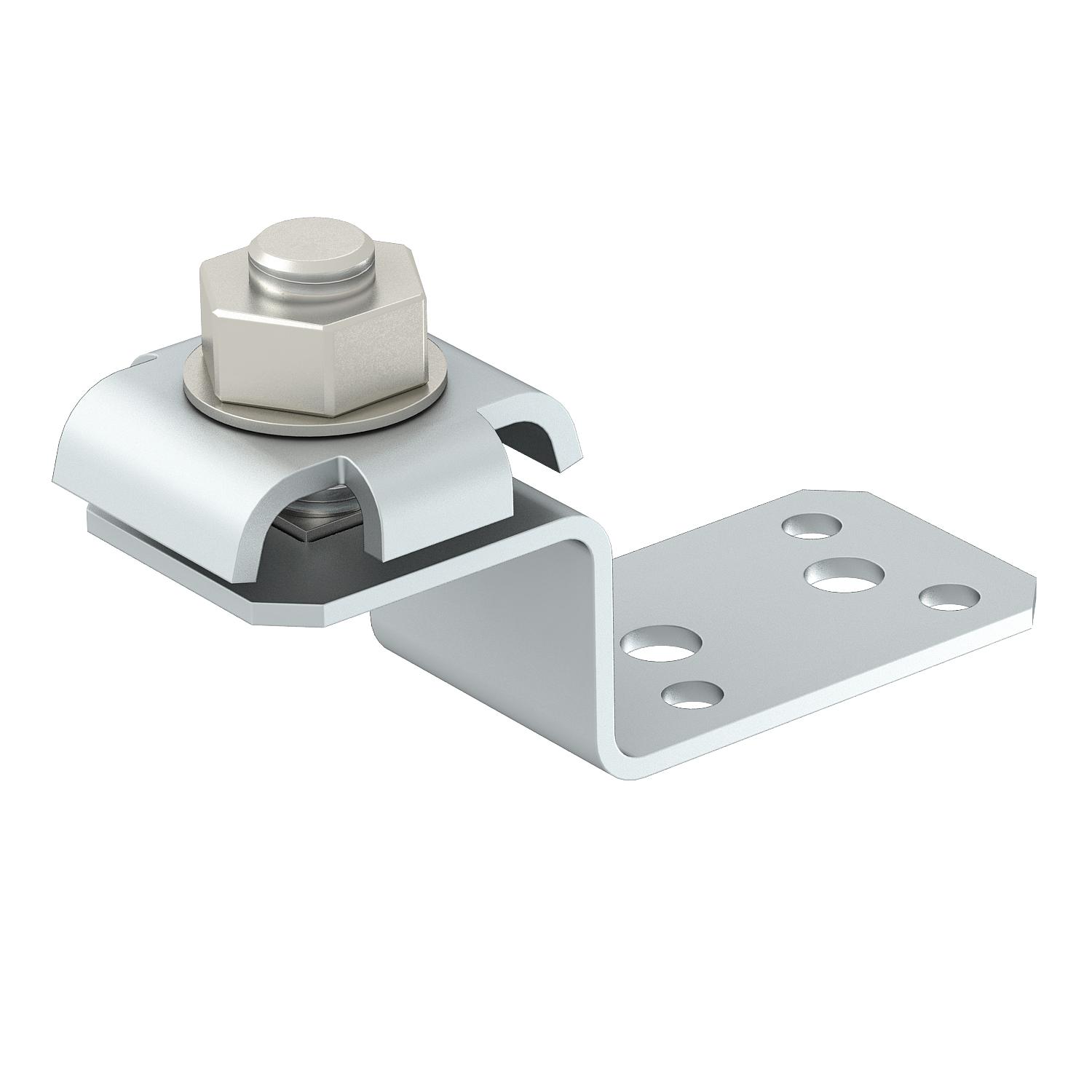

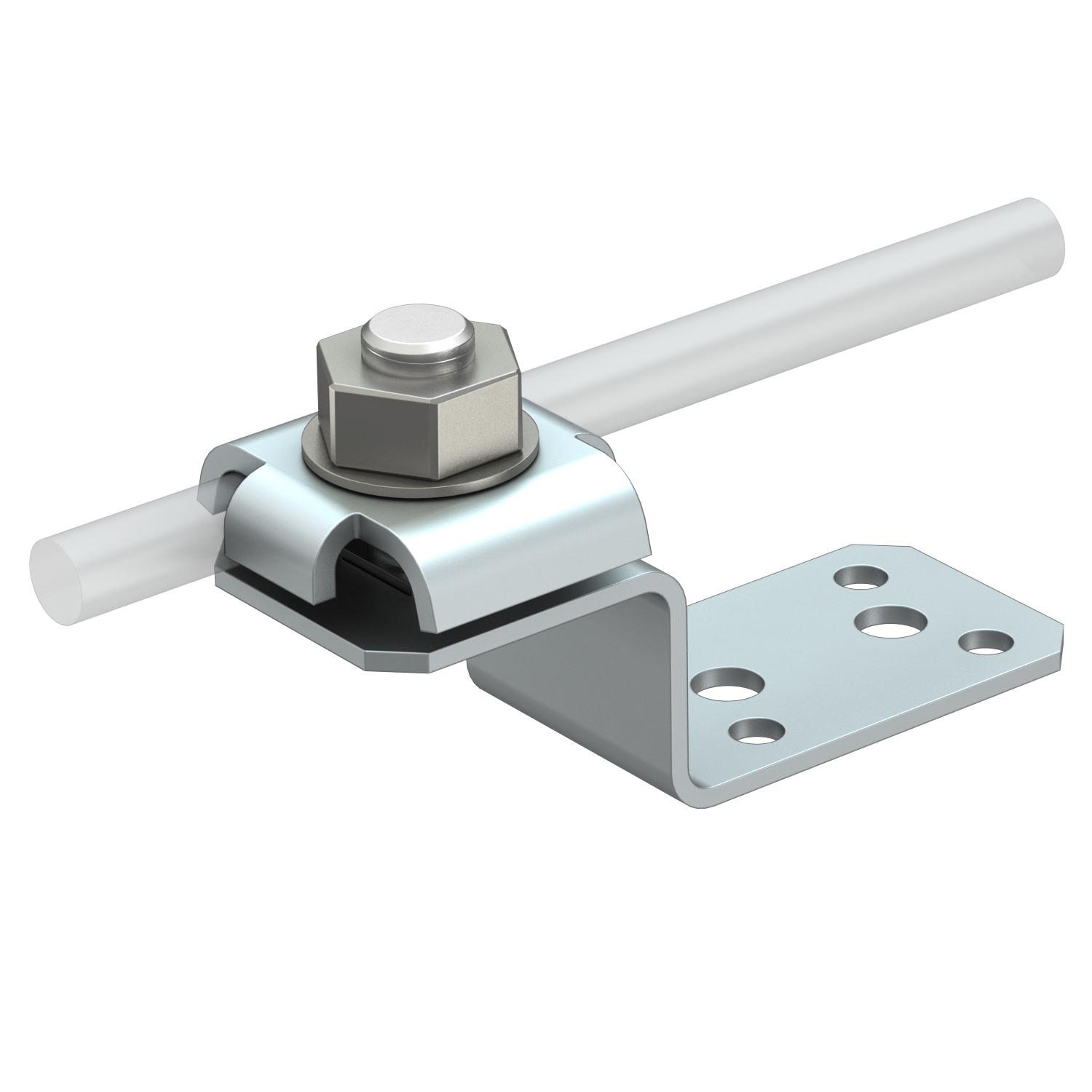

Connection component with double crossbar

Item no. 5320707 | EAN 4012196127504

5320707 / 287 DCT
N/50 kA
8 mm
Product description
Product description
• Corresponds to the requirements according to VDE 0185-305 (IEC 62305)
• Quick mounting thanks to an M10x30 bolt made of rustproof stainless steel
• With spring washer
• 4 fastening holes Ø 5.2 mm
• 2 fastening holes Ø 6.9 mm
  • Lightning current-tested
Technical data

Technical data

Clamping range, min. 8 mm
Colour aluminium
Dimension 82x30x26
Fit 8 mm
Lightning current carrying capacity N/50 kA
Material Aluminium
Suitable for round conductor diameters, min. 8 mm
Type of connector Connection terminal
Type of fastening screw Gutter bolt
All types

All types

Types Lightning current carrying capacity Fit Item no. Quantity SSU
287 DCT N/50 kA 8 mm 5320707
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 287 DCT / 5320707 , 0.06MB , pdf
Download
REACH Declaration of conformity 287 DCT / 5320707 , 0.12MB , pdf
Download
RoHS Declaration of conformity 287 DCT / 5320707 , 0.12MB , pdf
