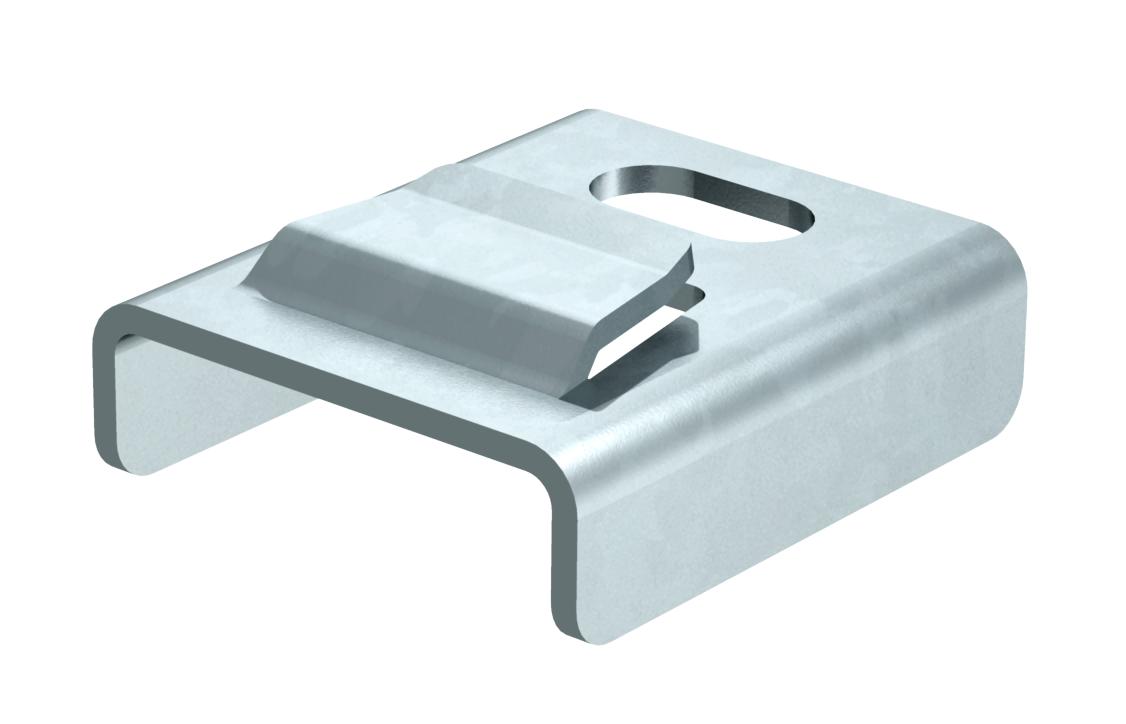

Connection component
Item no. 6221467 | EAN 4012196976881
- Product description
-
Product description
The connection component is the connection between the threaded rod lock and the suspension system for the routing types with cable ladders that maintain electrical function to DIN 4102 Part 12.
It is attached to the under-belt of the ladder rail at a distance of max. 100 mm from the bracket. When the threaded rod has been mounted, the connection component is secured against slipping.
-
- Technical data
-
Technical data

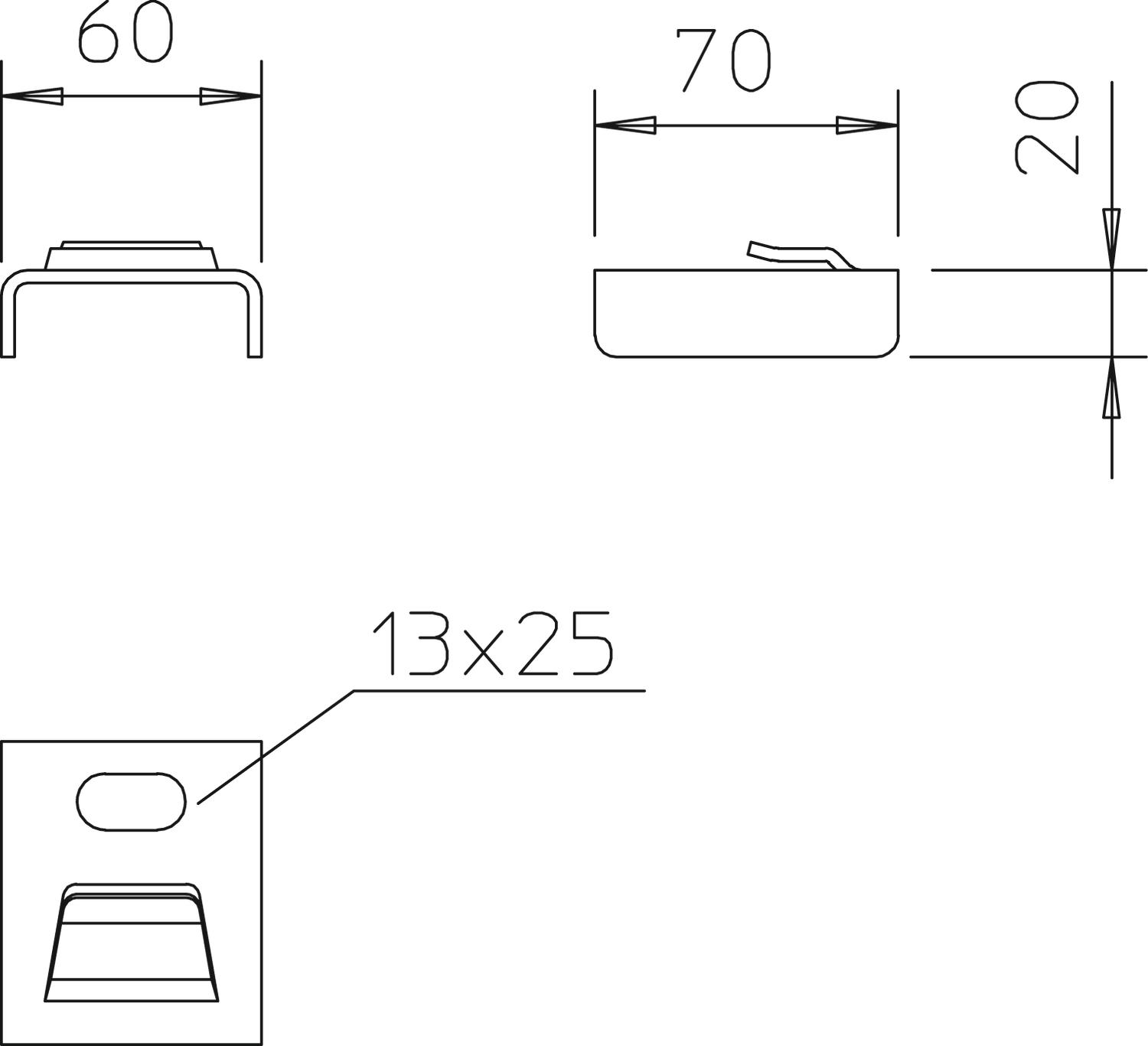

Dimension 70x60x20 Material Steel Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet ABL FT / 6221467 , 0.11MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity ABL FT / 6221467 , 0.12MB , pdfRoHS Declaration of conformity ABL FT / 6221467 , 0.13MB , pdfNo invitation to tender text is available for this product.
