- Product description
-

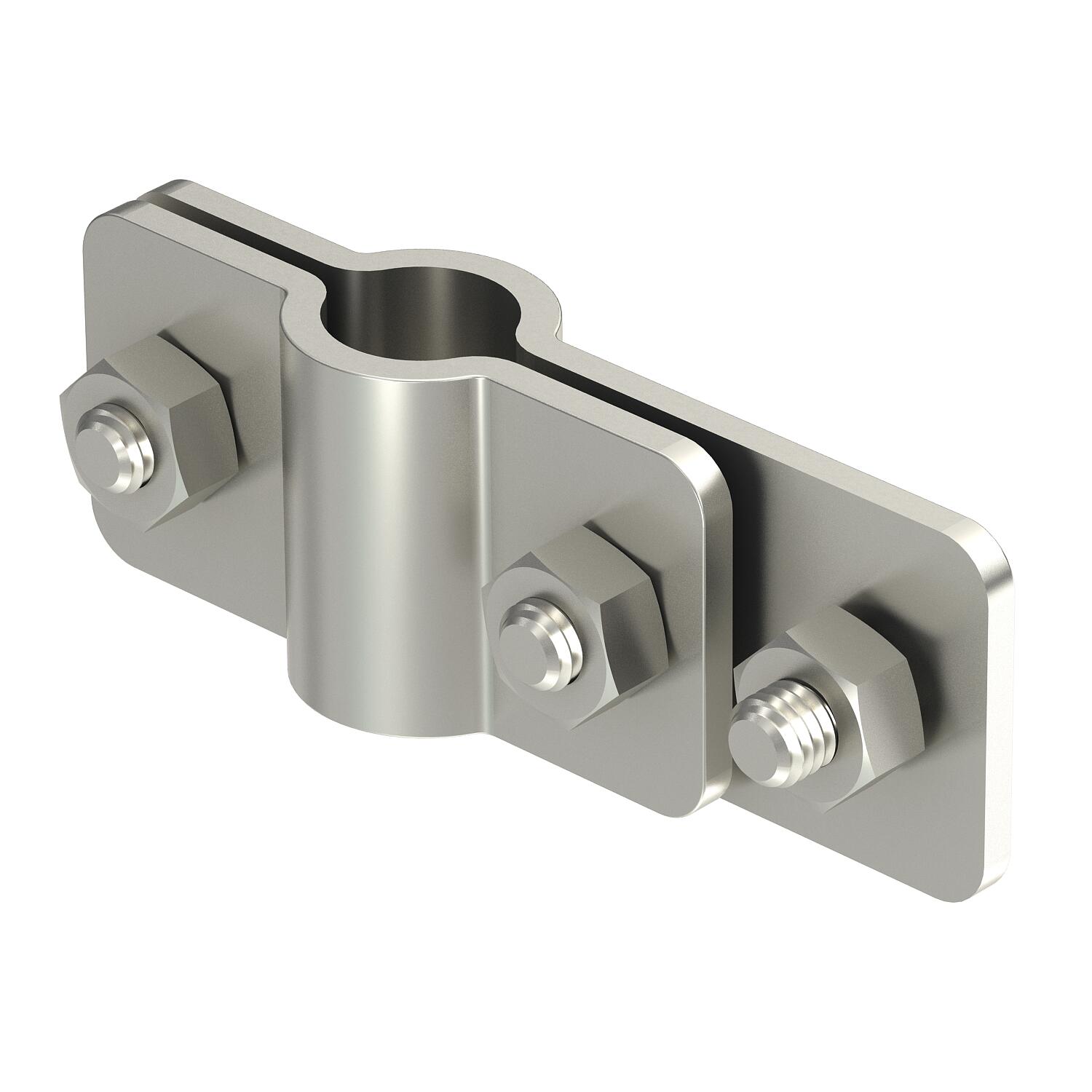

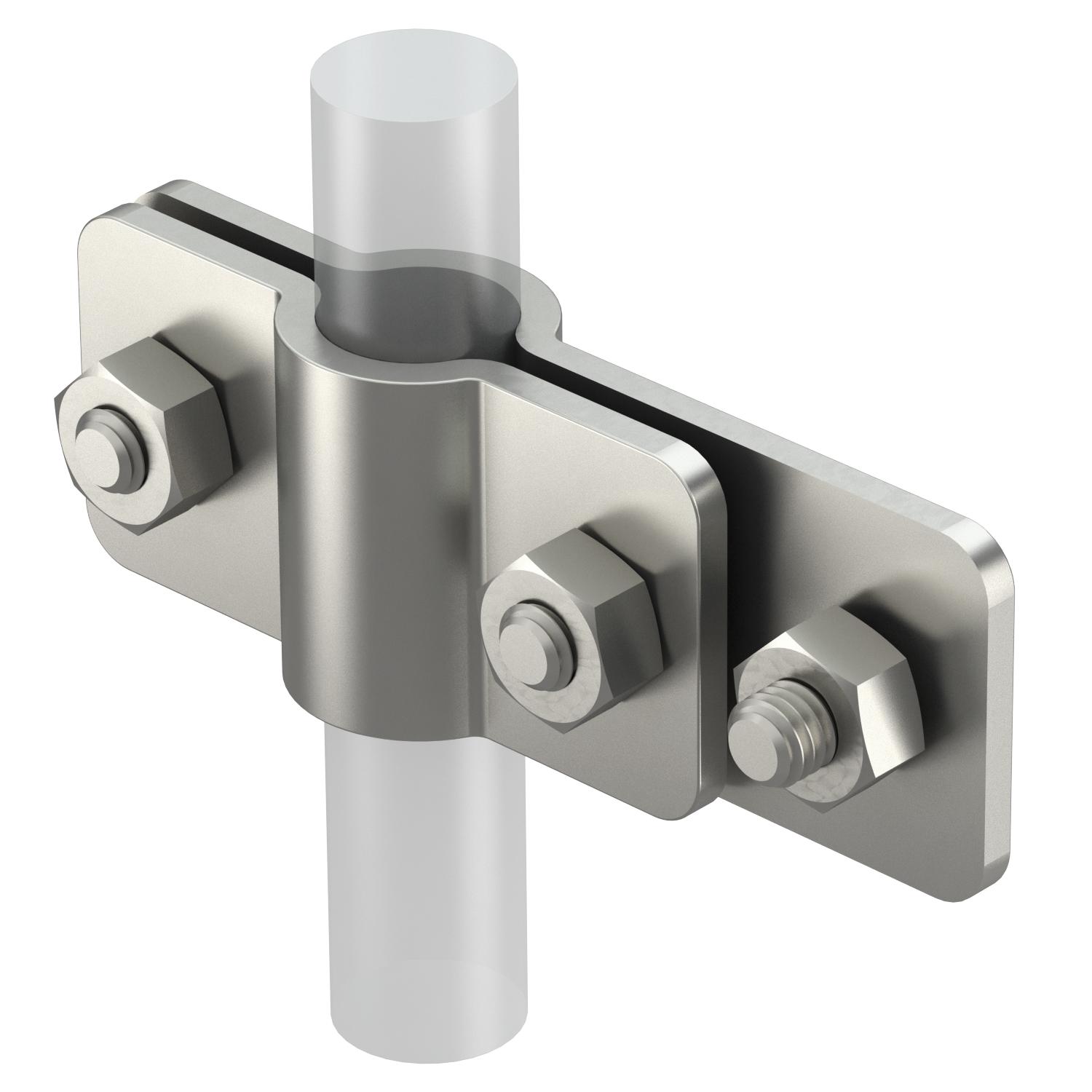

Product description• ST, BP, OMEX and LightEarth systems
• On flat conductors
• Including hex-head screw for attaching flat conductors
- Technical data
-
Technical data

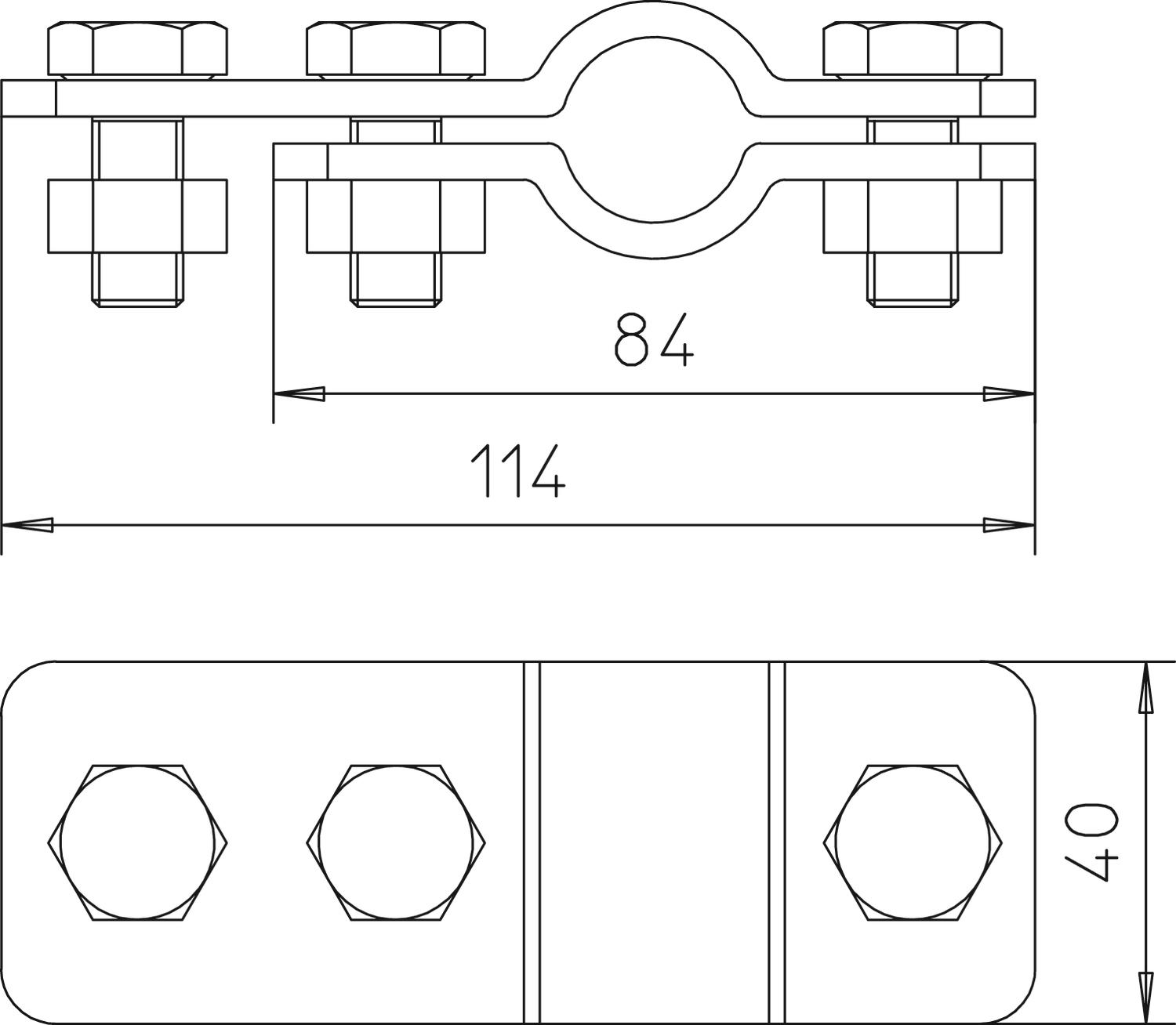

Dimension 20mm Dimension A 84 mm Dimension B 114 mm Earthing connection diameter 20 mm for earth rods 20 mm Intermediate plate no Material Stainless steel Type Connection clip - All types
- Downloads
-
Data sheet 2730 20 VA / 5001366 , 0.20MB , pdfEU declaration of conformity 2730 20 VA / 5001366 , 0.06MB , pdf
