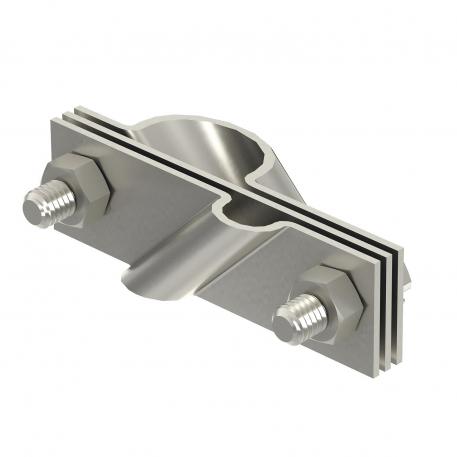

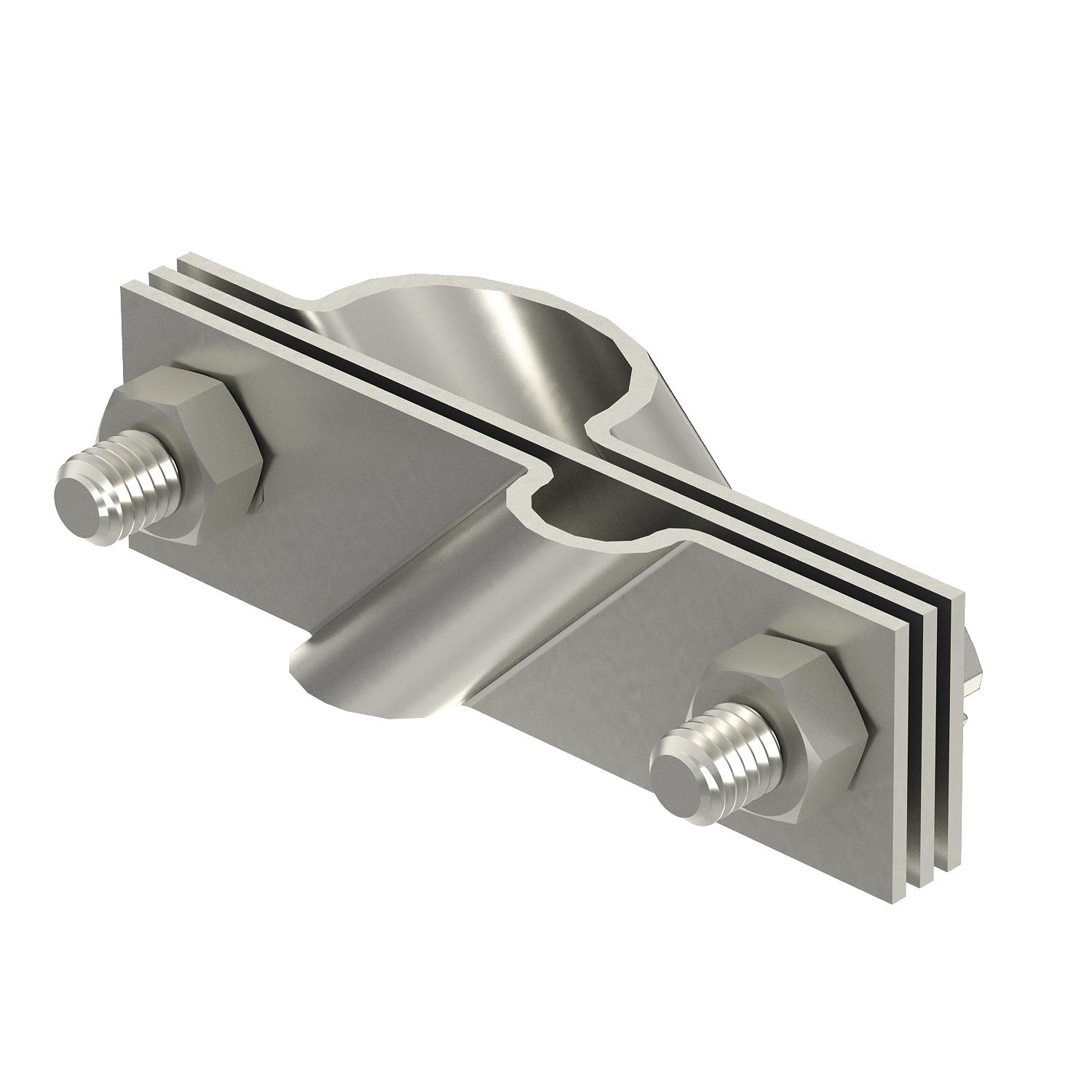

Connection clip for earth rod, universal A2
Item no. 5001617 | EAN 4012195635239
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

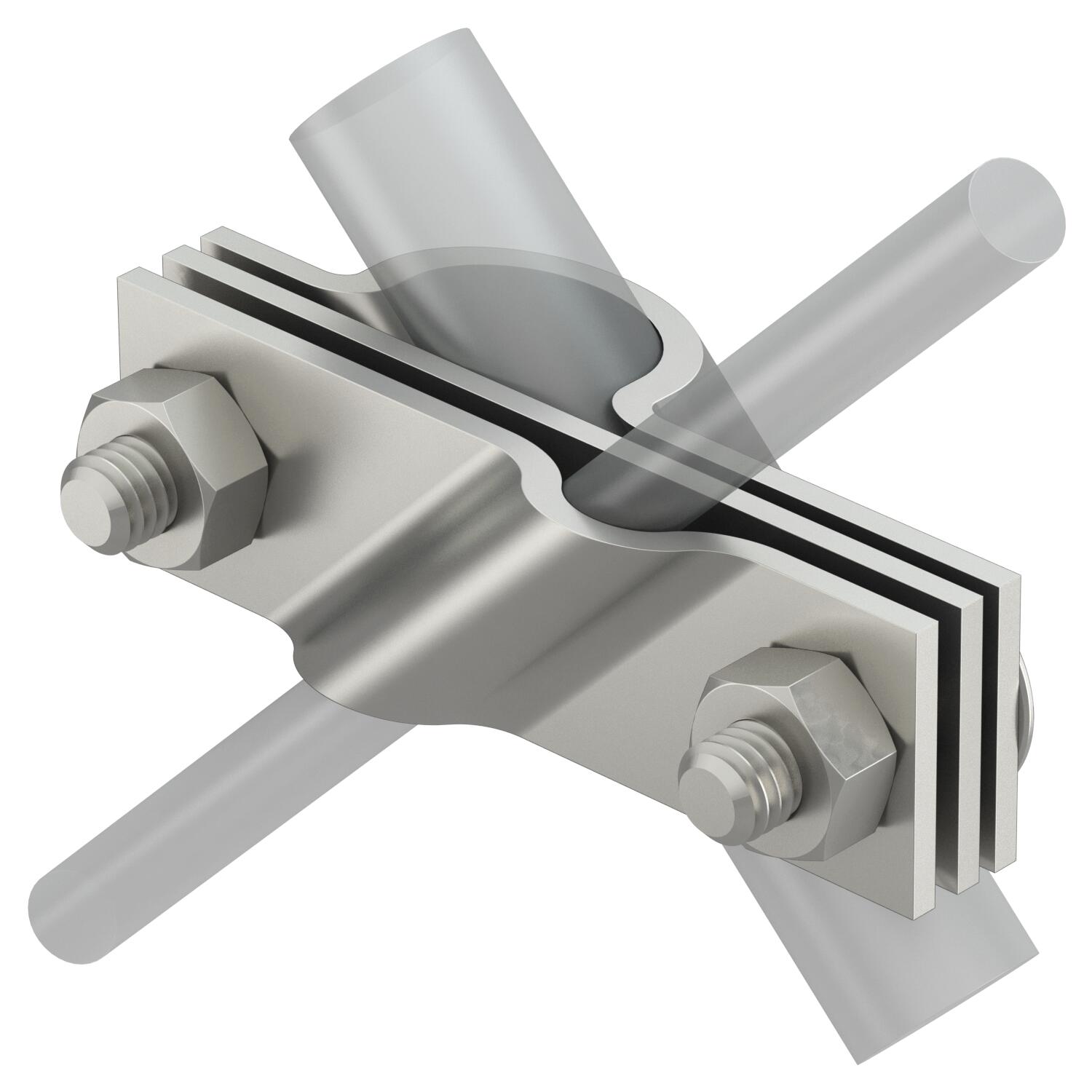

• Suitable for connecting round conductors Rd 8-10 or flat conductors to FL 40
• With adapter plate
• Mounted with 2 hexagonal bolts M10 x 30 and 2 hexagonal bolts M10
-
- Technical data
-
Technical data

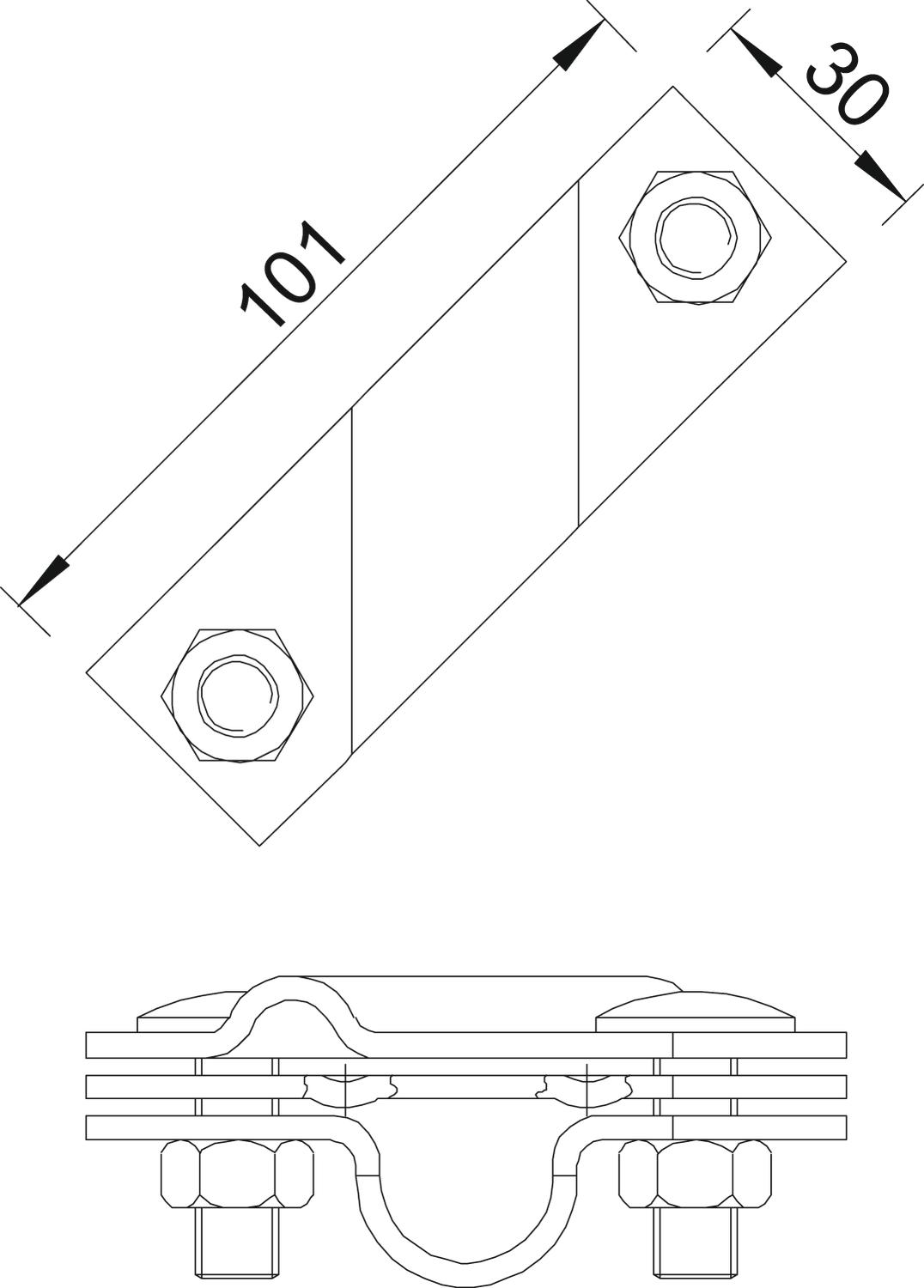

Clamping range, max. 10 mm Clamping range, min. 8 mm Dimension 20mm Dimension A 101 mm Earthing connection diameter 20 mm Fit Rd 8-10/FL40 mm for earth rods 20 mm Intermediate plate yes Material Stainless steel Suitable for flat conductor width max. 10 mm Suitable for flat conductor width min. 8 mm Suitable for round conductor diameters, max. 10 mm Suitable for round conductor diameters, min. 8 mm Type Connection clip - All types
