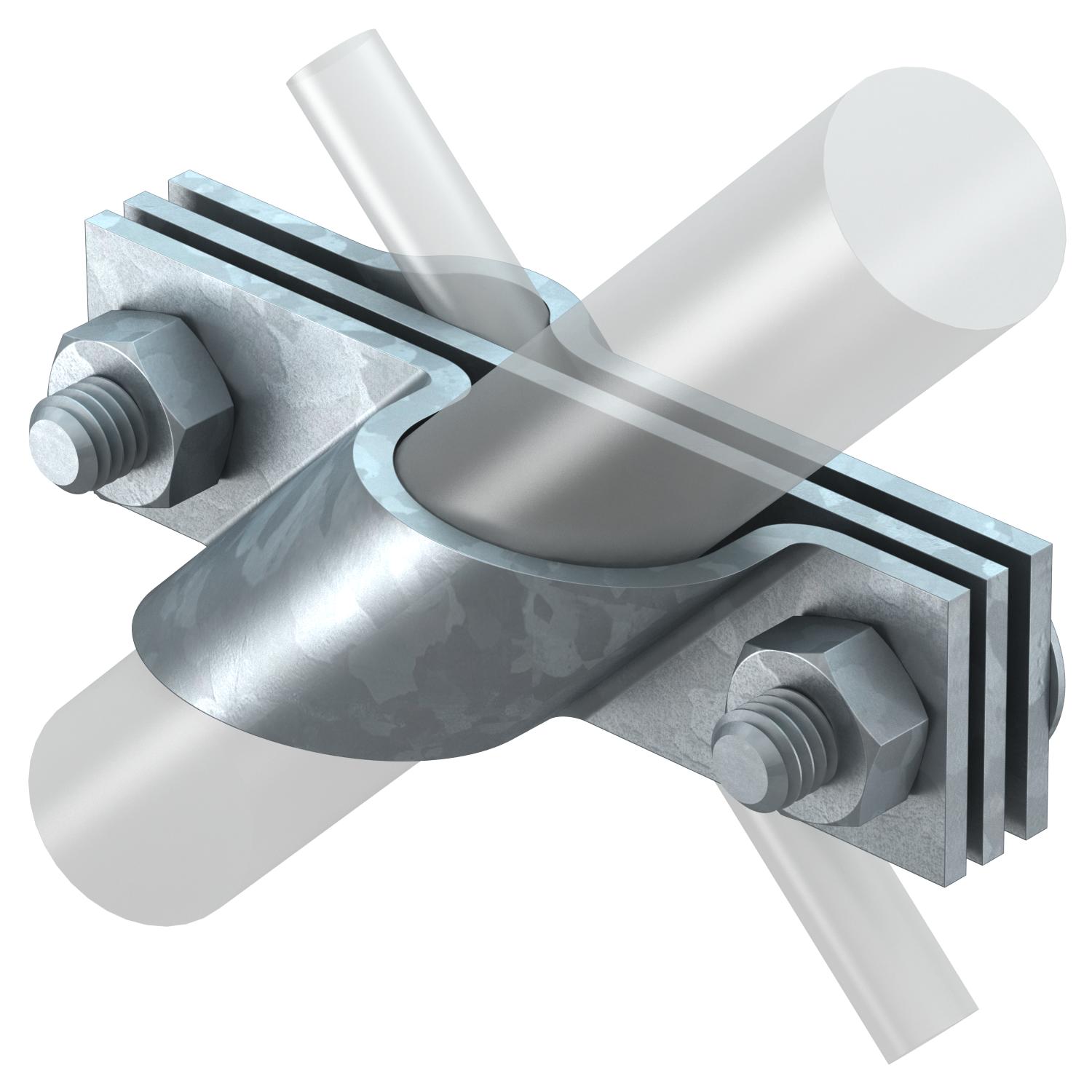

Connection clamp for earth rod, universal FT
Item no. 5001668 | EAN 4012195372974
- Product description
-
Product description
• Suitable for attaching round conductors Rd 8-10 or flat conductors to FL 40
• With separator plate
• Installed with 2 hexagonal bolts M10 x 30 and 2 hexagonal nuts M10
-
- Technical data
-
Technical data
Clamping range, max. 10 mm Clamping range, min. 8 mm Dimension 25mm Earthing connection diameter 25 mm Fit Rd 8-10/FL40 mm for earth rods 25 mm Intermediate plate yes Material Steel Short-circuit current (50 HZ)(1 s;≤300°C) 8,5 Suitable for flat conductor width max. 10 mm Suitable for flat conductor width min. 8 mm Suitable for round conductor diameters, max. 10 mm Suitable for round conductor diameters, min. 8 mm Surface Hot-dip galvanised Type Connection clip Dimensions

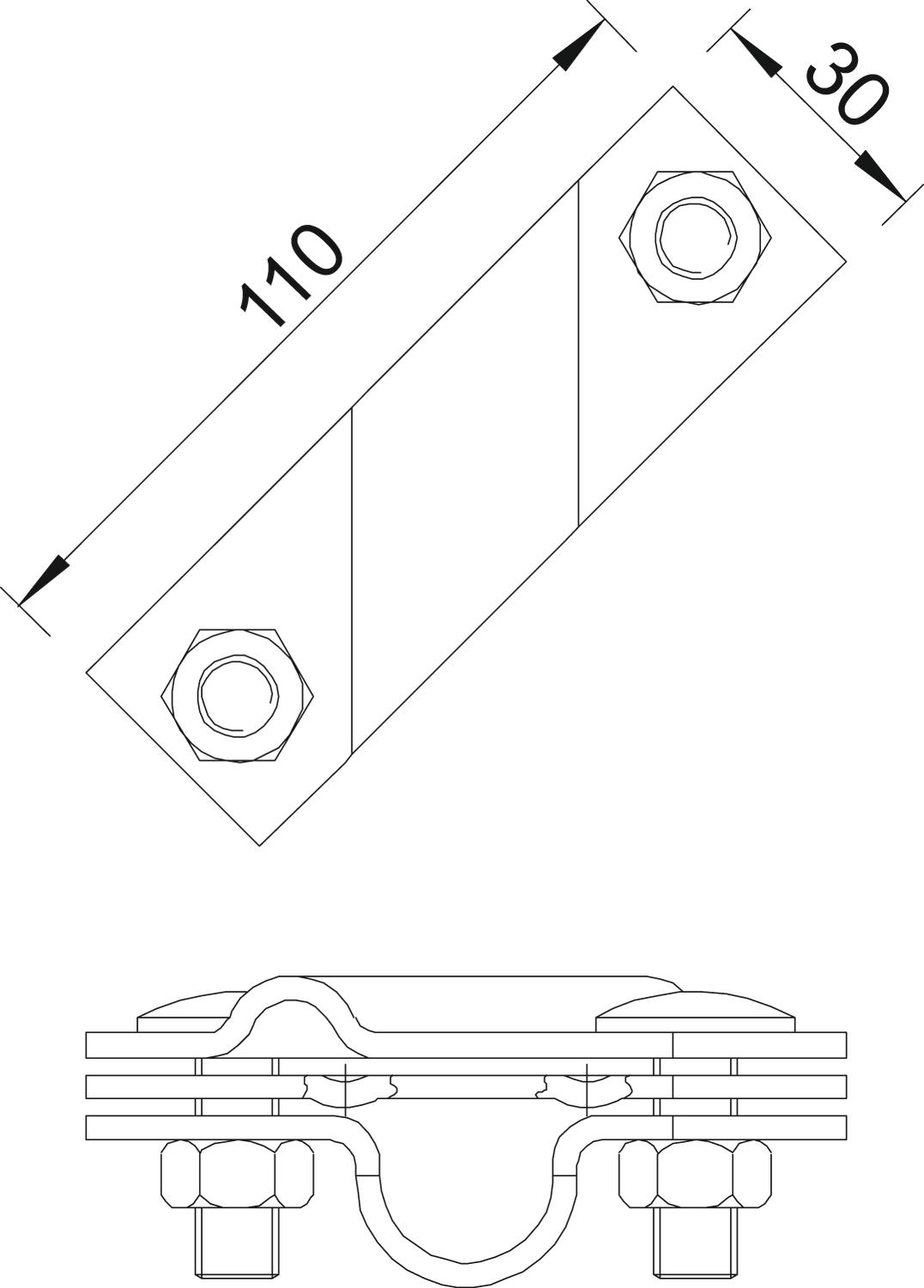

Dimension A 110 mm - All types
