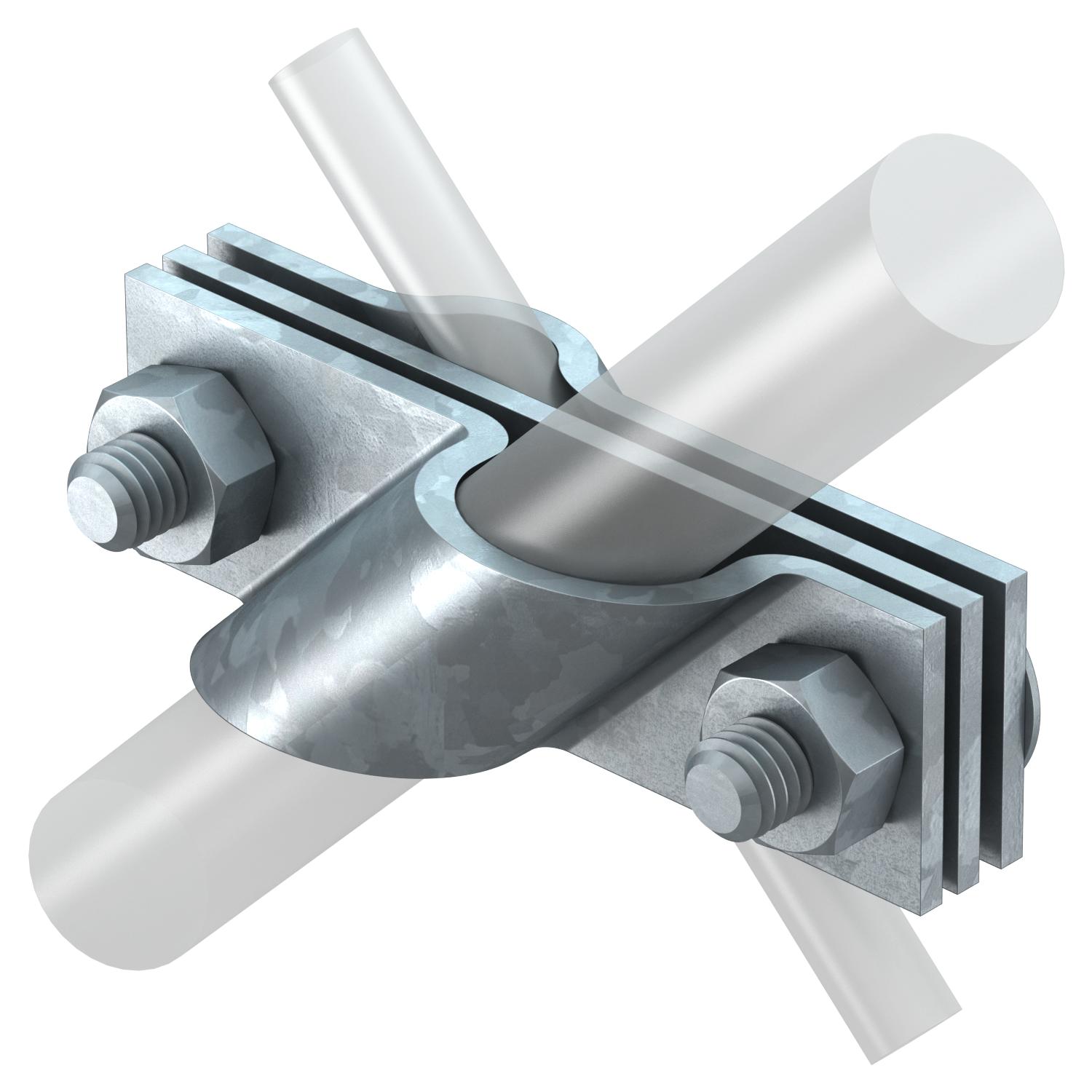

Connection clamp for earth rod, universal FT 20

Connection clamp for earth rod, universal FT

Item no. 5001749 | EAN 4012195754879

Item no. / Types

for earth rods

Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Suitable for connecting round conductors Rd 8-10 or flat conductors to FL 40
• With adapter plate
• Mounted with 2 hexagonal bolts M10 x 30 and 2 hexagonal bolts M10

Technical data

Technical data

Clamping range, max.	10 mm
Clamping range, min.	8 mm
Dimension	20mm

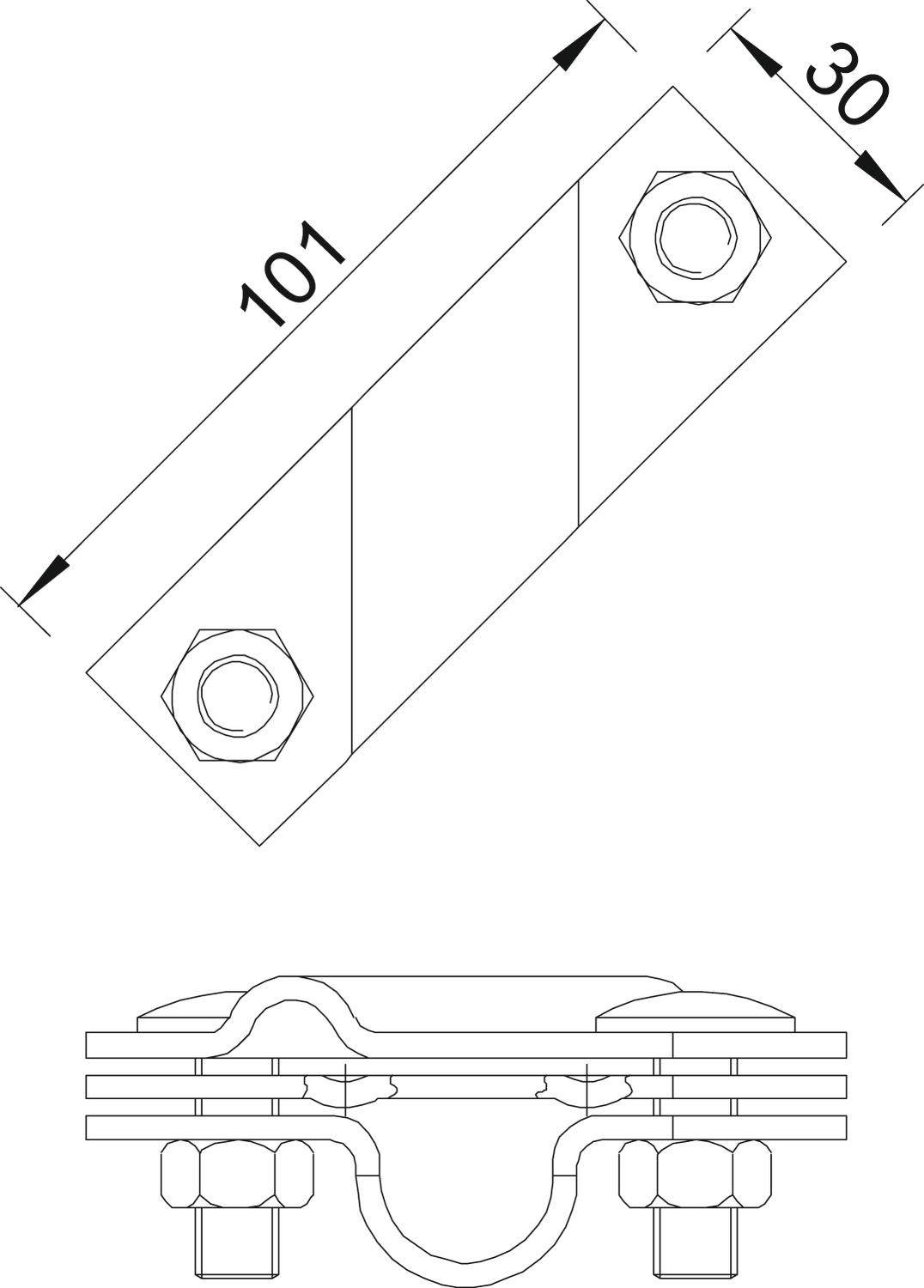

Dimension A	101 mm
Earthing connection diameter	20 mm
Fit	Rd 8-10/FL40 mm
for earth rods	20 mm
Intermediate plate	yes

Material	Steel
Short-circuit current (50 HZ)(1 s;≤300°C)	7,9
Suitable for flat conductor width max.	10 mm
Suitable for flat conductor width min.	8 mm
Suitable for round conductor diameters, max.	10 mm
Suitable for round conductor diameters, min.	8 mm
Surface	Hot-dip galvanised
Type	Connection clip
