- Product description
-
Product description

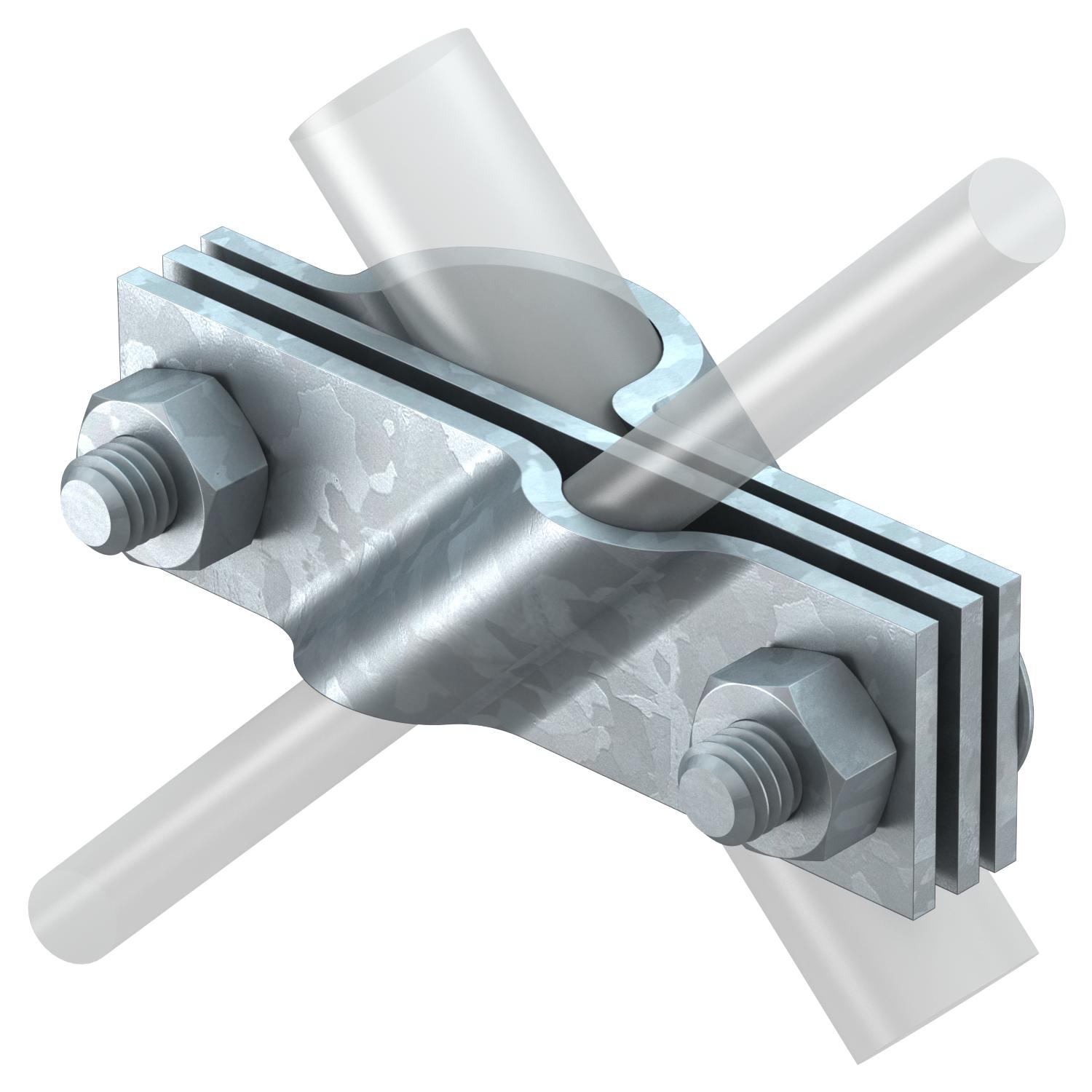

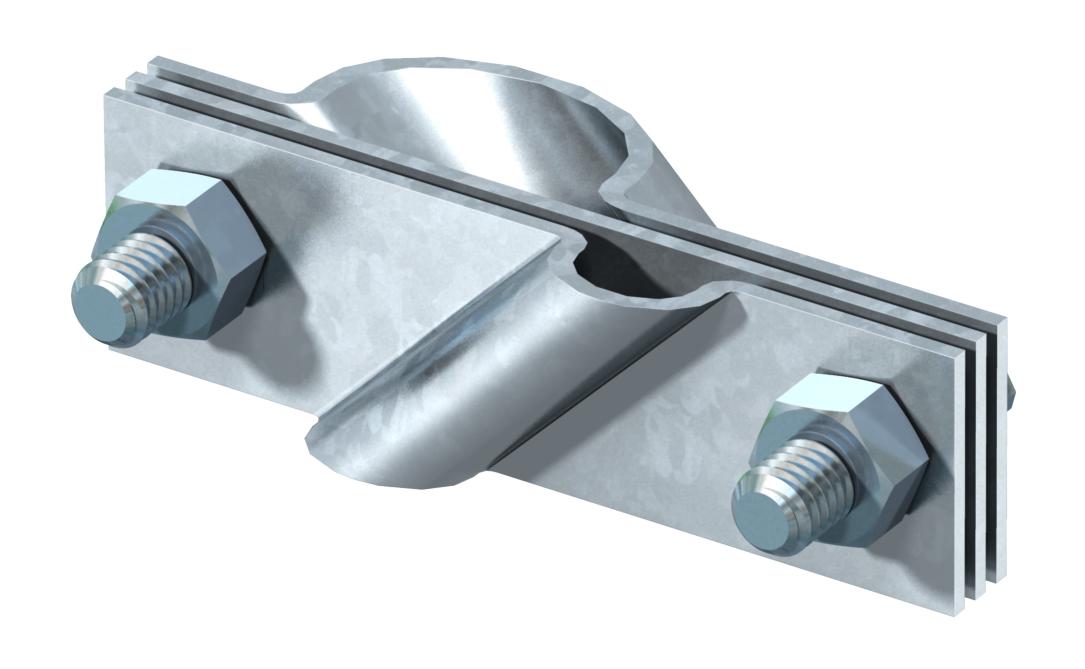

• Suitable for attaching round conductors Rd 8-10 or flat conductors to FL 40
• With separator plate
• Installed with 2 hexagonal bolts M10 x 30 and 2 hexagonal nuts M10
- Technical data
-
Technical data

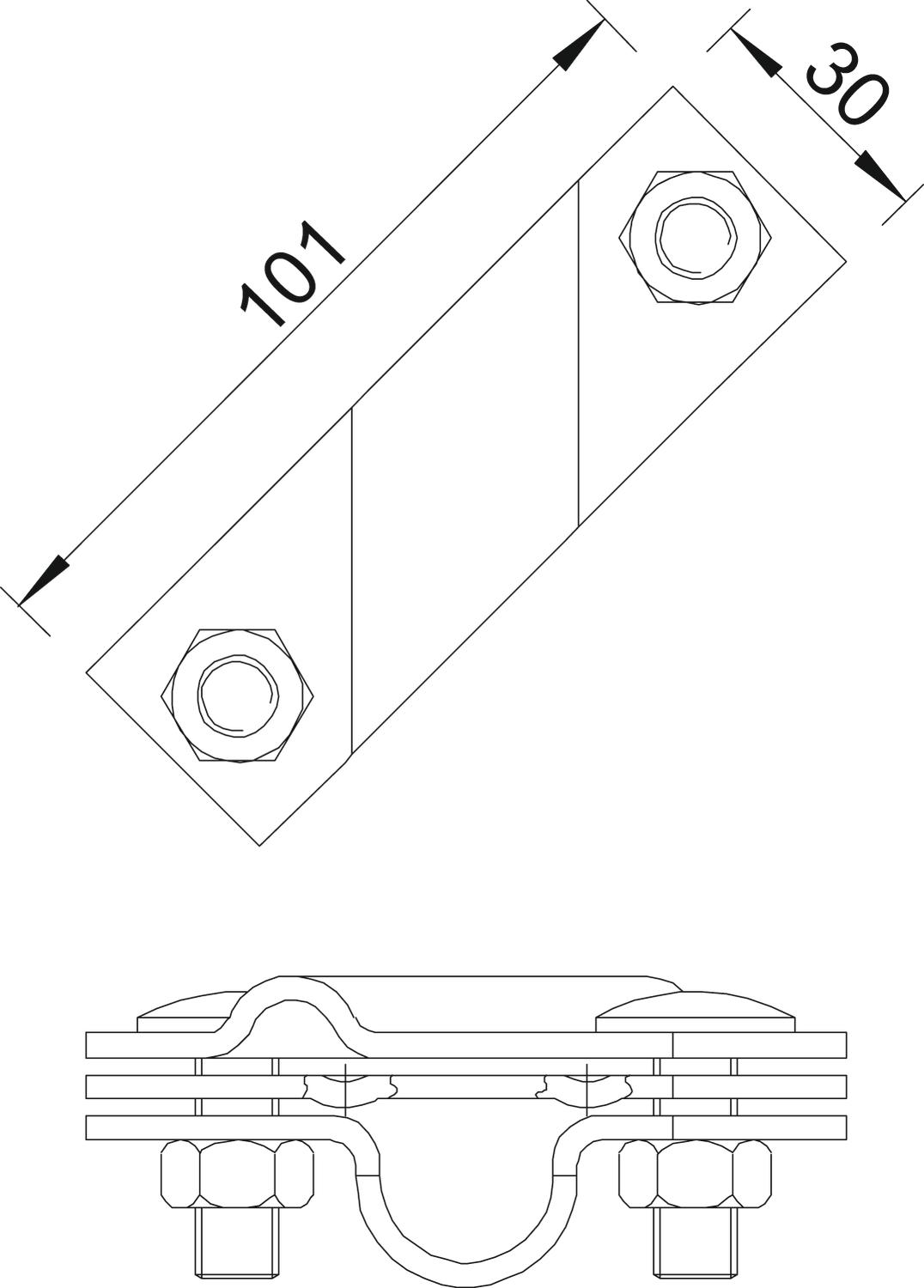

Clamping range, max. 10 mm Clamping range, min. 8 mm Dimension 20mm Dimension A 101 mm Earthing connection diameter 20 mm Fit Rd 8-10/FL40 mm for earth rods 20 mm Intermediate plate yes Material Steel Short-circuit current (50 HZ)(1 s;≤300°C) 7,9 Suitable for flat conductor width max. 10 mm Suitable for flat conductor width min. 8 mm Suitable for round conductor diameters, max. 10 mm Suitable for round conductor diameters, min. 8 mm Surface Hot-dip galvanised Type Connection clip - All types
- Downloads
-
Data sheet 2760 20 FT / 5001641 , 0.19MB , pdfDeclaration of conformity 2760 20 FT / 5001641 , 0.06MB , pdfREACH Declaration of conformity 2760 20 FT / 5001641 , 0.12MB , pdfRoHS Declaration of conformity 2760 20 FT / 5001641 , 0.12MB , pdf
