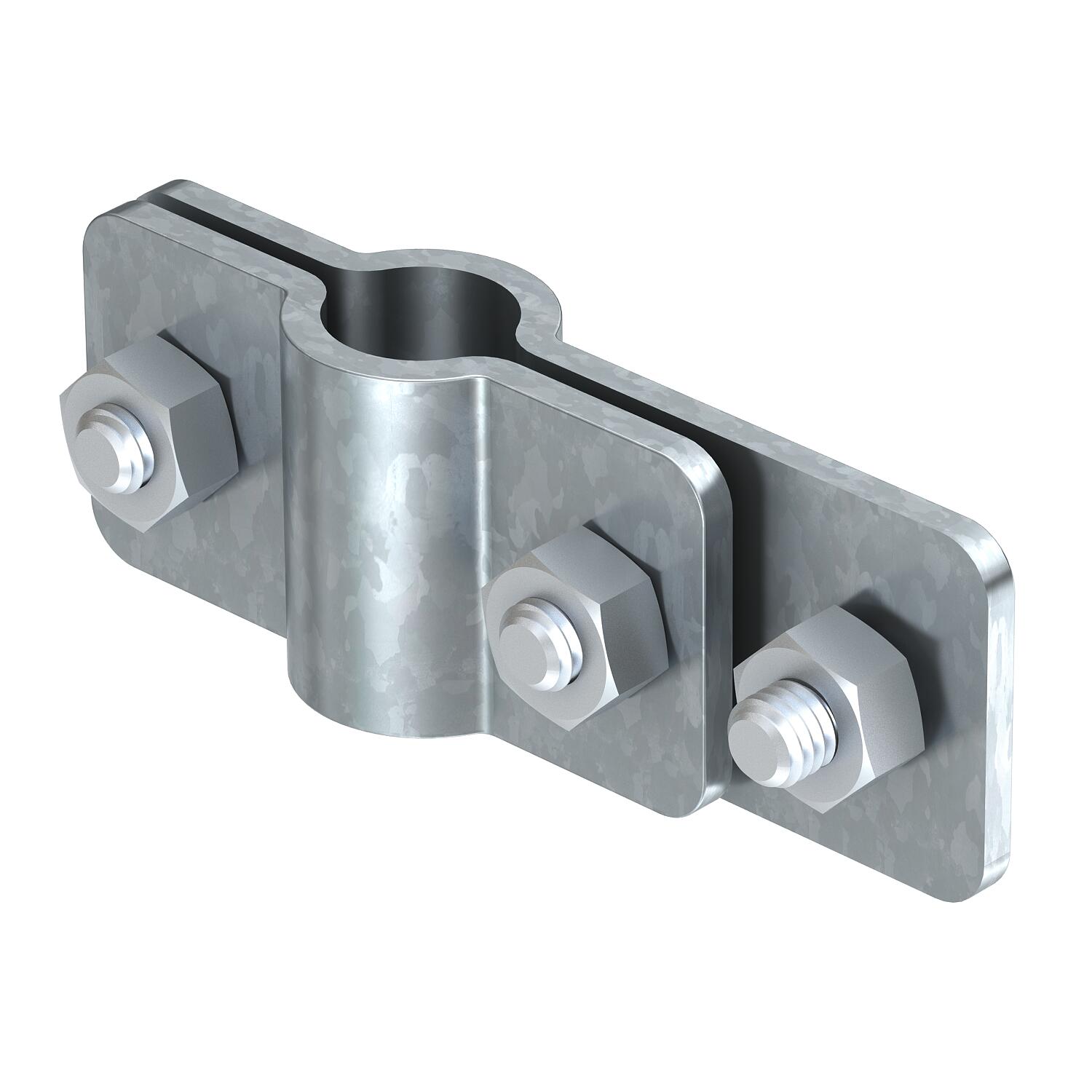

Connection clamp for earth rod on flat conductor FT

Item no. 5001412 | EAN 4012195372615

Product description

Product description

• ST, BP, OMEX and LightEarth systems
• On flat conductors
• Including hex-head screw for attaching flat conductors
  • Lightning current-tested
Technical data

Technical data

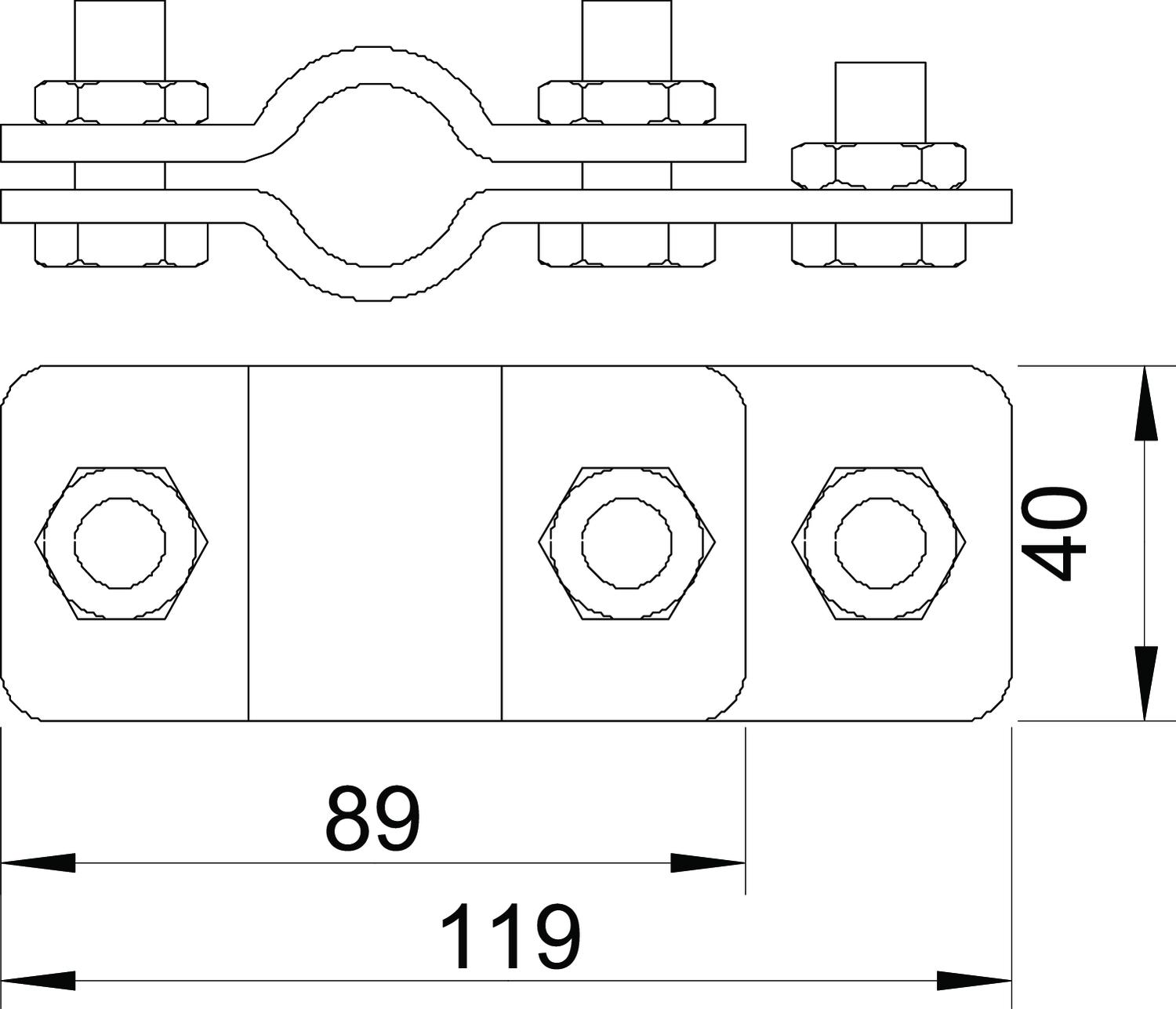

Dimension 25mm
Dimension A 89 mm
Dimension B 119 mm
Earthing connection diameter 25 mm
for earth rods 25 mm
Intermediate plate no
Material Steel
Short-circuit current (50 HZ)(1 s;≤300°C) 8,5
Surface Hot-dip galvanised
Type Connection clip
All types

All types

Types for earth rods Item no. Quantity SSU
2730 20 FT 20 mm 5001404
5 piece
2730 25 FT 25 mm 5001412
5 piece
2730 25 M12 FT 25 mm 5001416
5 piece
