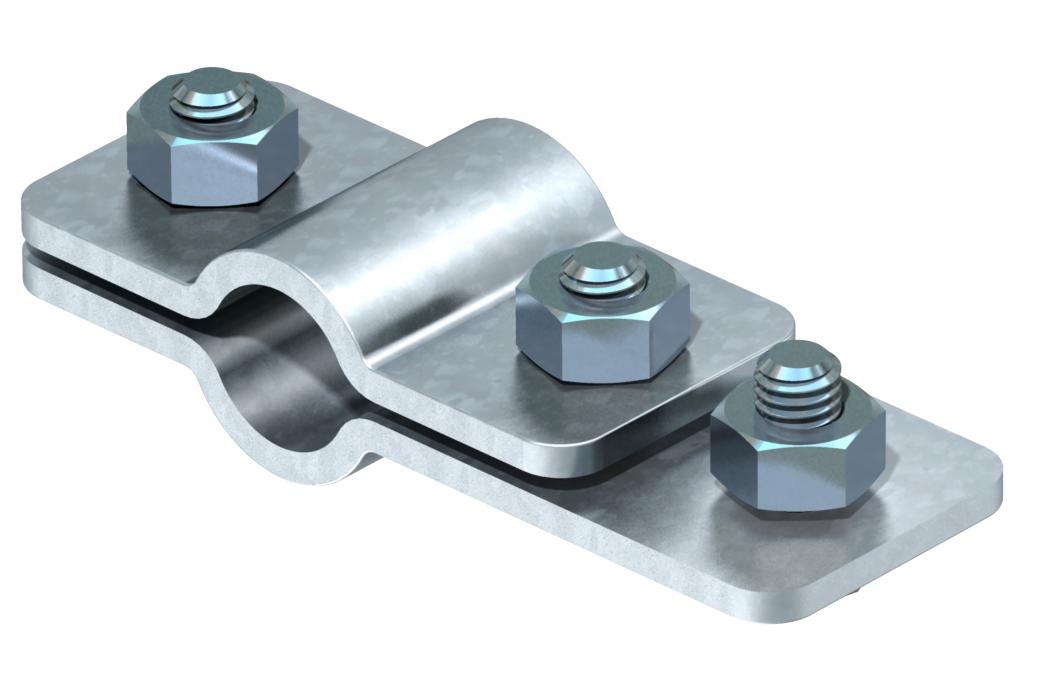

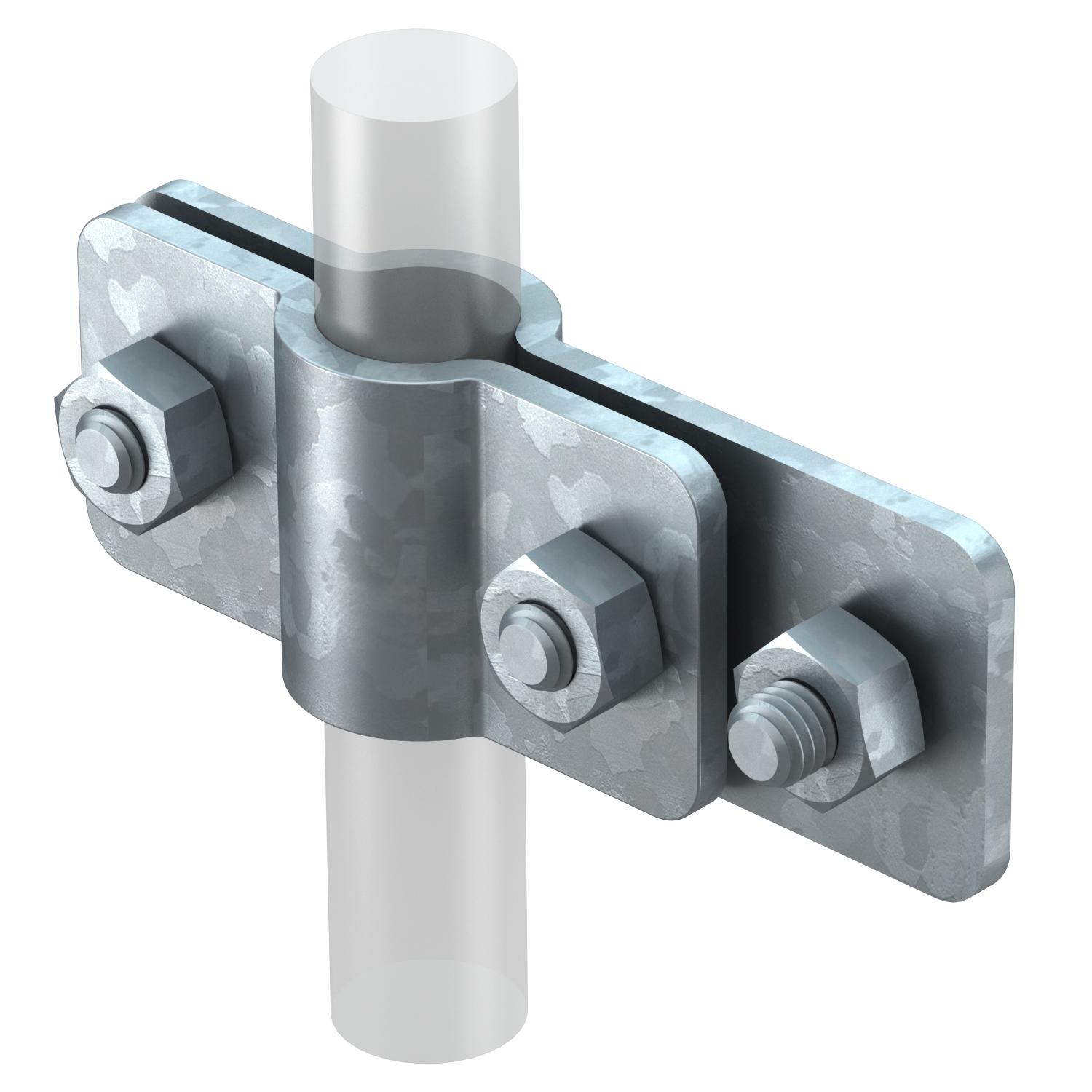

Connection clamp for earth rod on flat conductor FT
Item no. 5001404 | EAN 4012195372554
- Product description
-
Product description
• ST, BP, OMEX and LightEarth systems
• On flat conductors
• Including hex-head screw for attaching flat conductors
-
- Technical data
-
Technical data
Dimension 20mm Earthing connection diameter 20 mm for earth rods 20 mm Intermediate plate no Material Steel Short-circuit current (50 HZ)(1 s;≤300°C) 7,9 Surface Hot-dip galvanised Type Connection clip Dimensions

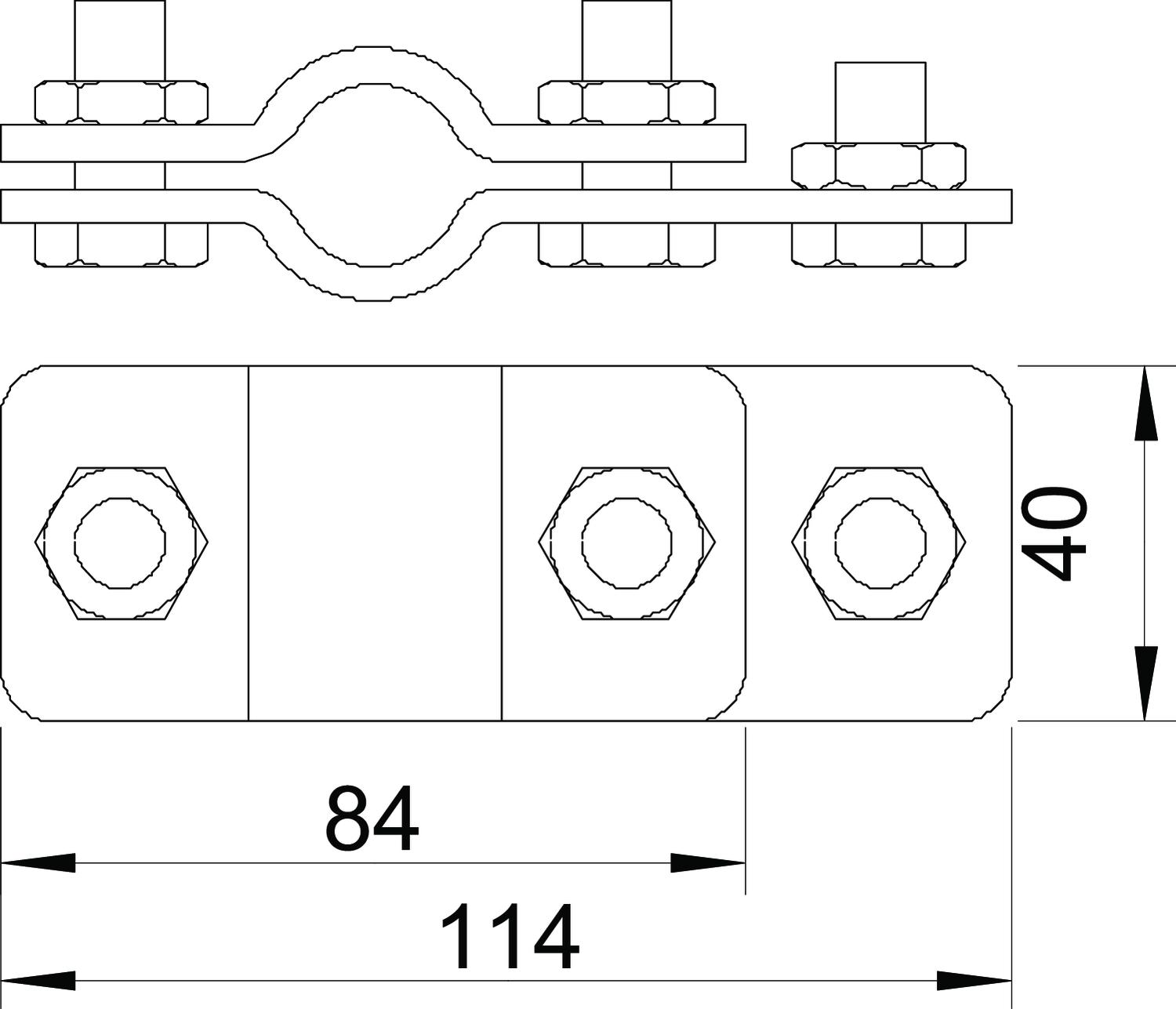

Dimension A 84 mm Dimension B 114 mm - All types
- Downloads
-
Data sheet 2730 20 FT / 5001404 , 0.25MB , pdfDeclaration of conformity 2730 20 FT / 5001404 , 0.06MB , pdfREACH Declaration of conformity 2730 20 FT / 5001404 , 0.12MB , pdfRoHS Declaration of conformity 2730 20 FT / 5001404 , 0.12MB , pdfLabel approval Connection terminal 2730 20 FT , 0.09MB , pdf
