Connection clamp AB EX ISG, straight

Item no. / Types

Drill hole diameter, min.

Version for

Product description

Product description

Connection clamp for mounting the OBO Ex spark gap, type EX ISG, on insulating flanges and insulating pieces.

Technical data

All types

All types

Types	Drill hole diameter, min.	Version for	Item no.	Quantity	SSU
AB EX ISG S M10	11 mm	For M10 bolt	5240360	piece	2 piece
AB EX ISG S M12	14 mm	For M12 bolt	5240362	piece	2 piece
AB EX ISG S M16	18 mm	For M16 bolt	5240366	piece	2 piece
AB EX ISG S M20	22 mm	For M20 bolt	5240370	piece	2 piece

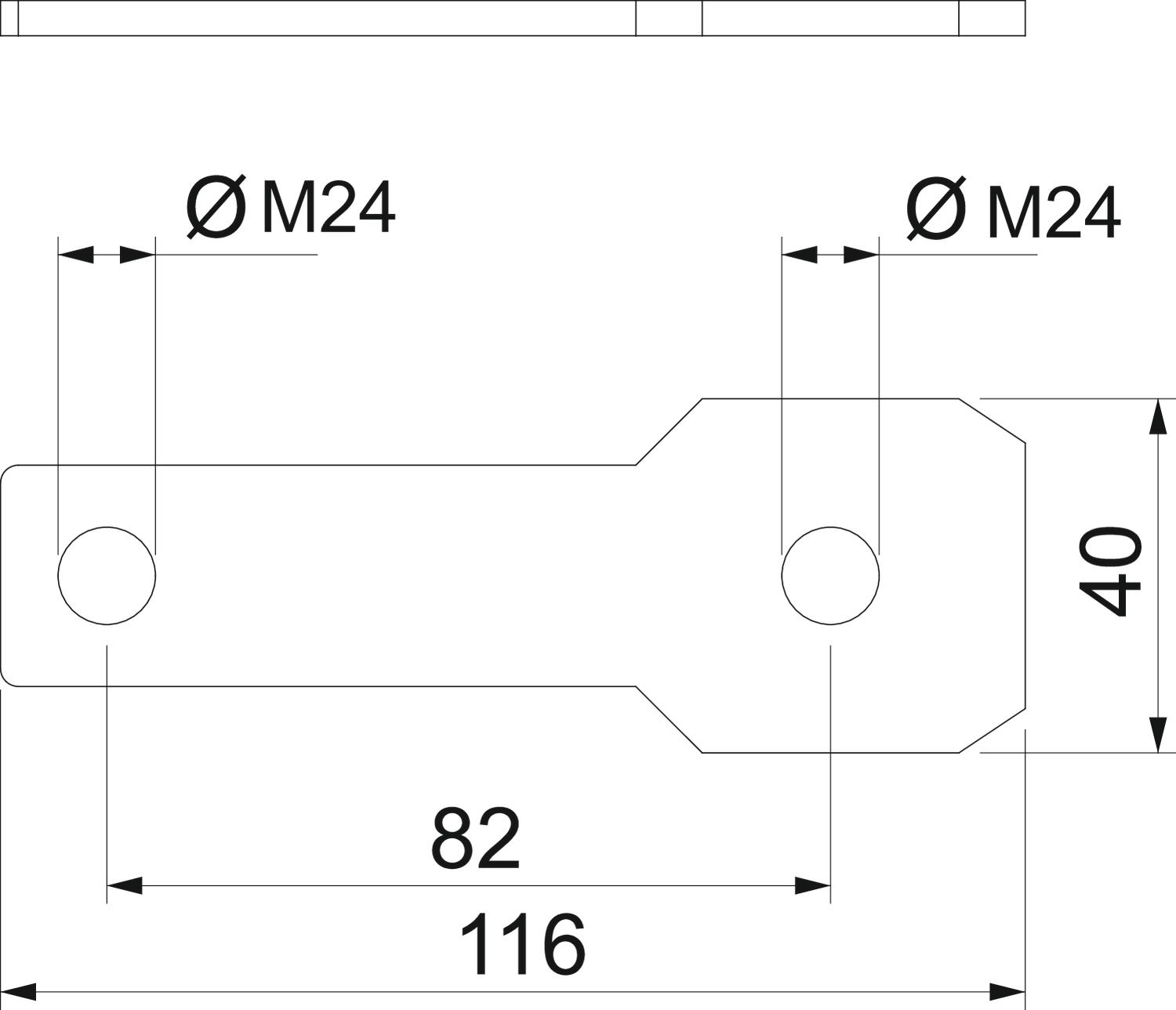

AB EX ISG S M24	26 mm	For M24 bolt	5240374	piece	2 piece
