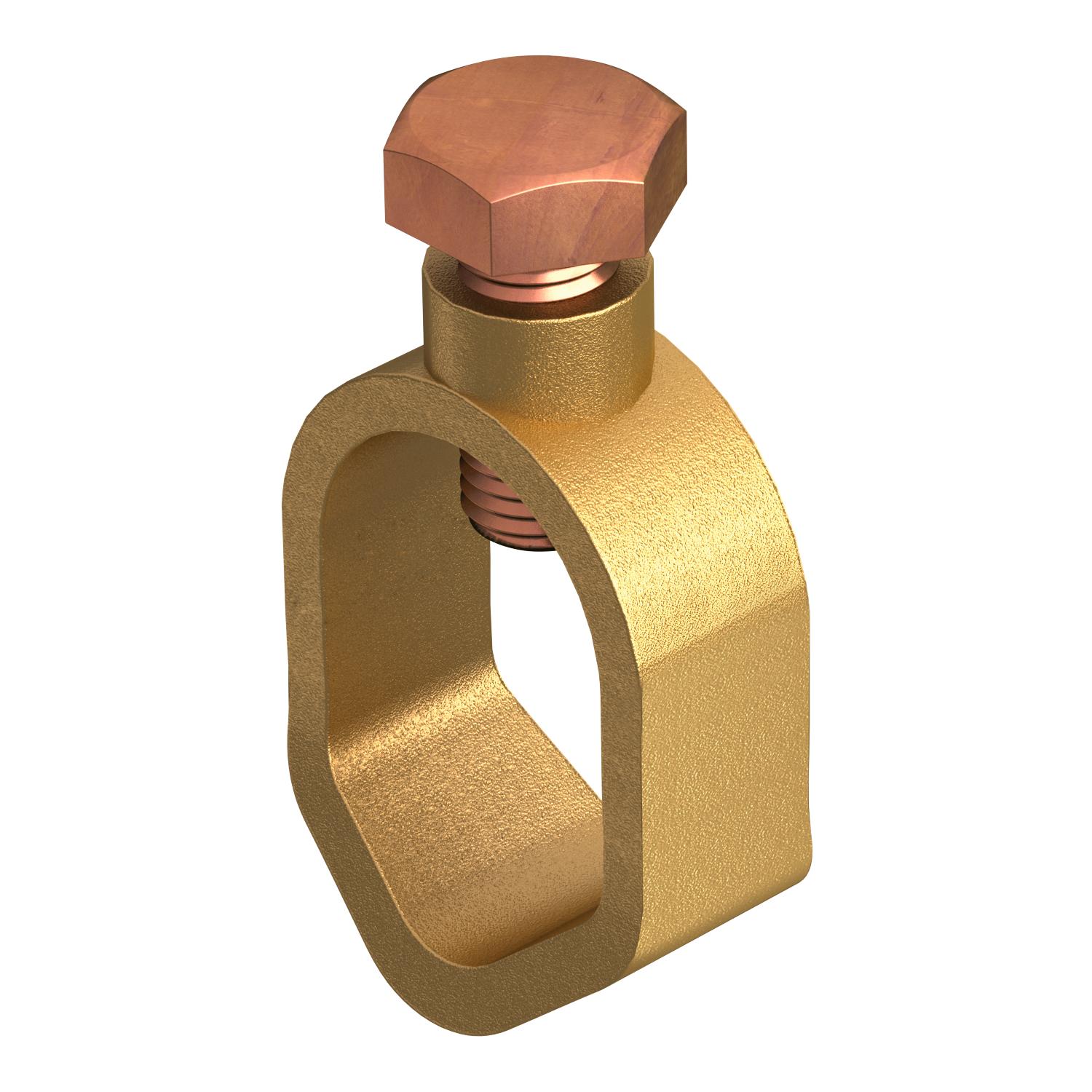

Connection clamp

Item no. 5001594 | EAN 4012196431267

Product description

Product description

• For connection of the copper-plated earth rod, type 219 16 CU, with cables/round conductors 16 mm² to 70 mm²
• Type A terminal
Technical data

Technical data

Connection Round conductor

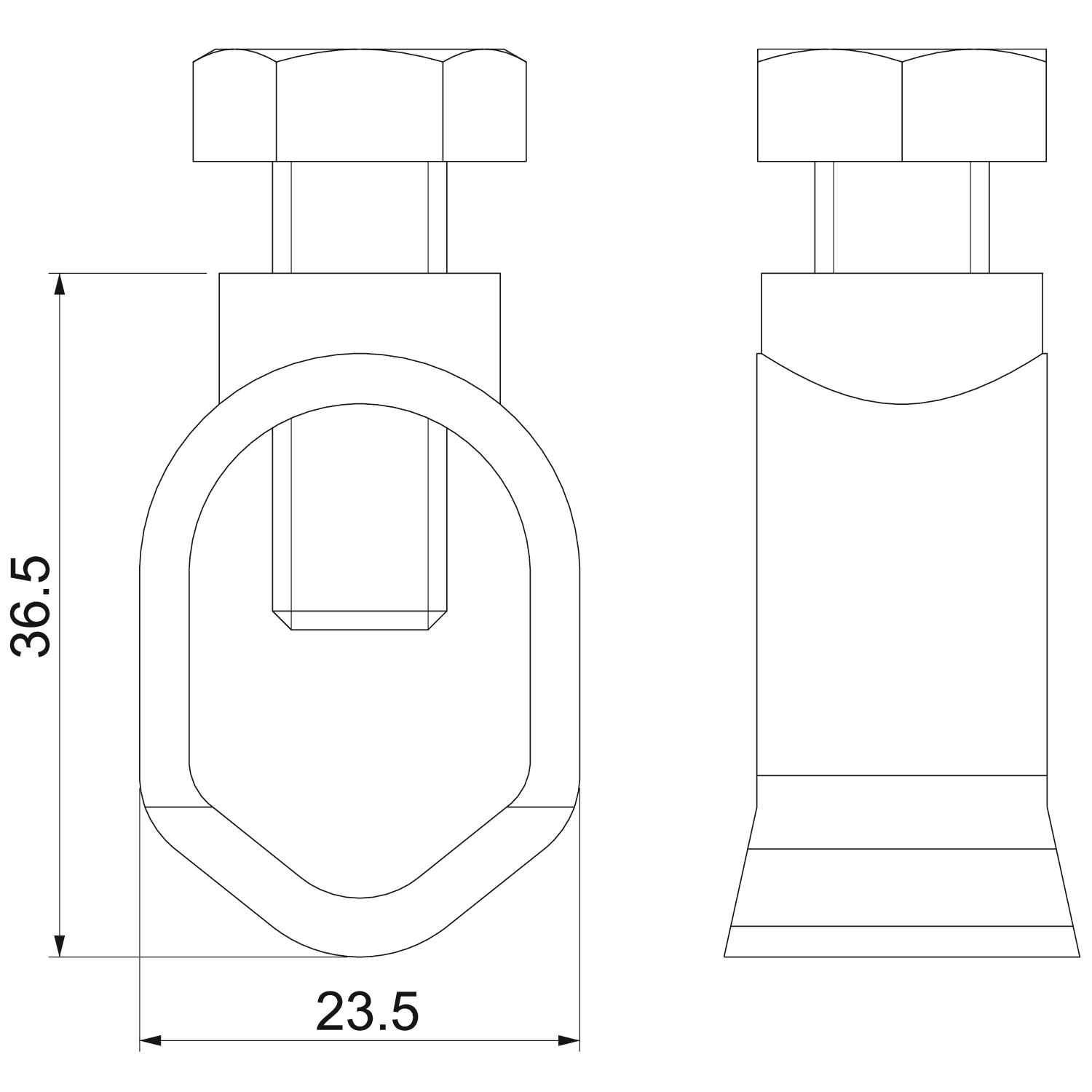

Dimension 24x37x24
Fit Rd 14,2 mm
Intermediate plate no
Material Red bronze
Type Connection sleeve
All types

All types

Types for earth rods Item no. Quantity SSU
2745 16 25 5001590
10 piece
2745 16 30 5001592
10 piece
2745 16 70 5001594
10 piece
