- Product description
-
Product description

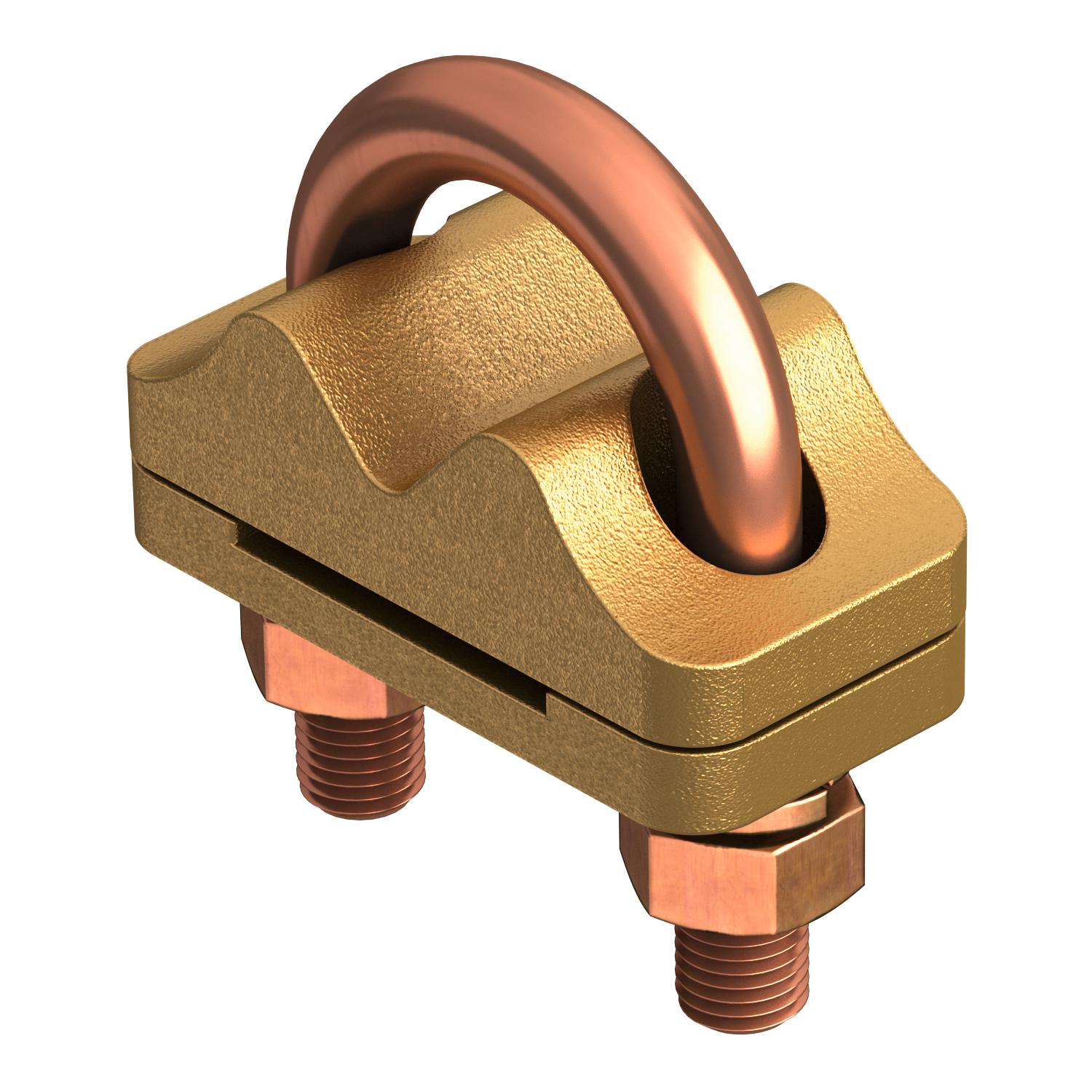

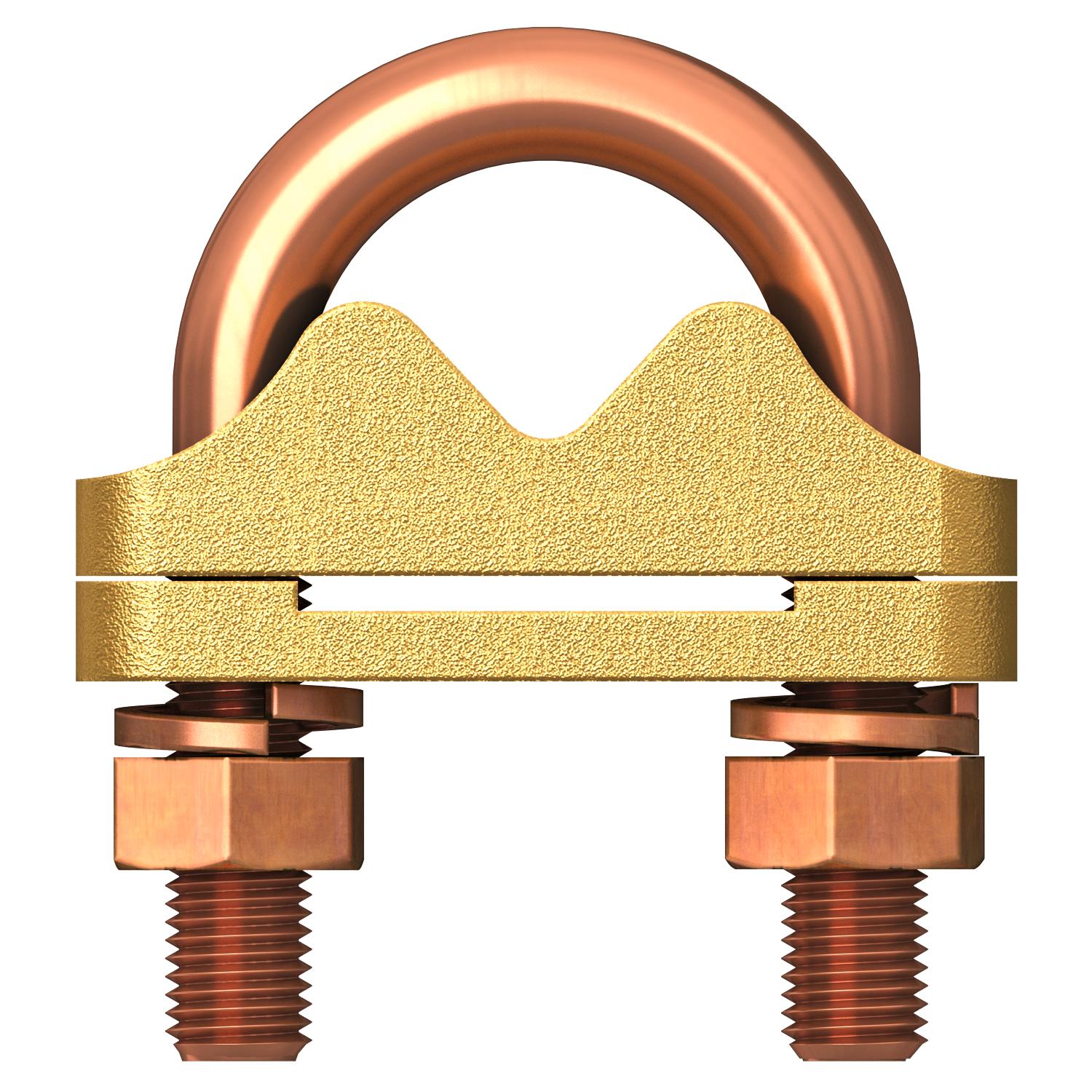

• Suitable for connecting round conductors Rd 8-10 or flat conductors with earth rod 219 16 CU
- Technical data
-
Technical data

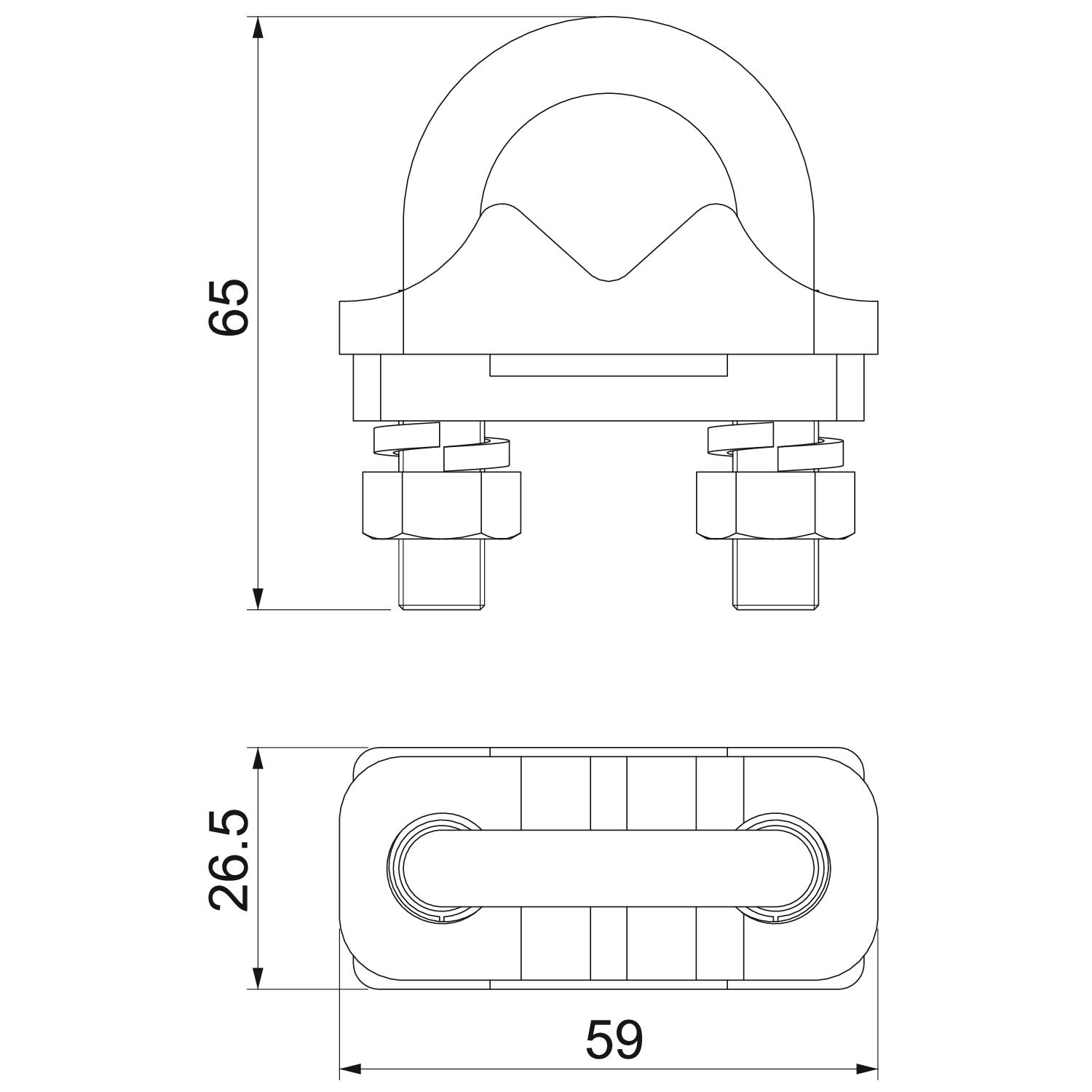

Clamping range, max. 10 mm Clamping range, min. 8 mm Connection Flat conductor Dimension 59x25x65 Earthing connection diameter 16 mm Fit Rd 8-10/FL max. 26 mm for earth rods 14,2 mm Height 65 mm Intermediate plate no Length 59 mm Material Red bronze Suitable for flat conductor width max. 25 mm Suitable for round conductor diameters, max. 10 mm Suitable for round conductor diameters, min. 8 mm Type Connection terminal Type of connector Connectors Width 27 mm - All types
- Downloads
-
Data sheet 2740 16 KL / 5001513 , 0.21MB , pdfDeclaration of conformity 2740 16 KL / 5001513 , 0.06MB , pdf
