Connection and expansion strip
Item no. 5331501 | EAN 4012195423430
- Product description
-
Product description

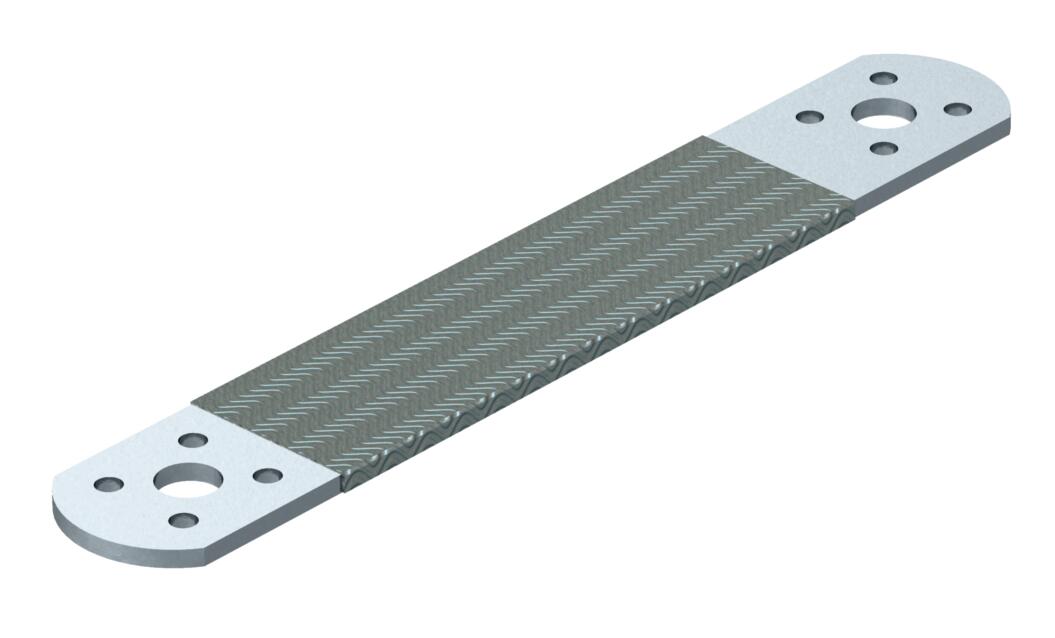

• Copper strip 35 mm², tin-plated
• Highly flexible with rigid ends

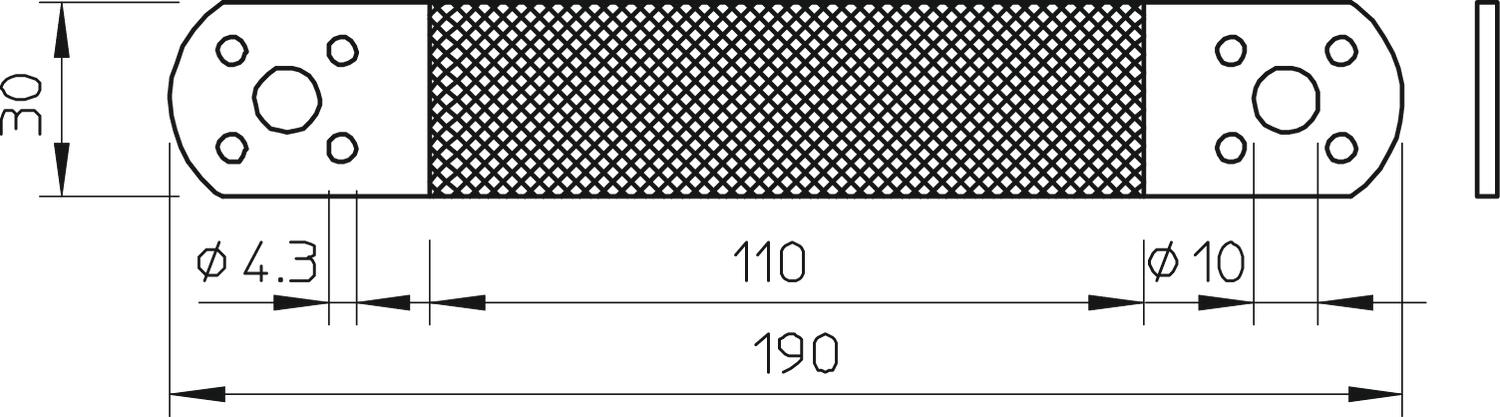

• Each end with 1 fastening hole Ø 10 mm and 4 fastening holes Ø 4.3 mm
-
- Technical data
-
Technical data
Dimension 35mm² Material Copper Dimensions
Height 3 mm Length 190 mm Width 30 mm - All types
- Downloads
-
Data sheet 856 / 5331501 , 0.13MB , pdfDeclaration of conformity 856 / 5331501 , 0.06MB , pdfREACH Declaration of conformity 856 / 5331501 , 0.12MB , pdfRoHS Declaration of conformity 856 / 5331501 , 0.12MB , pdf
