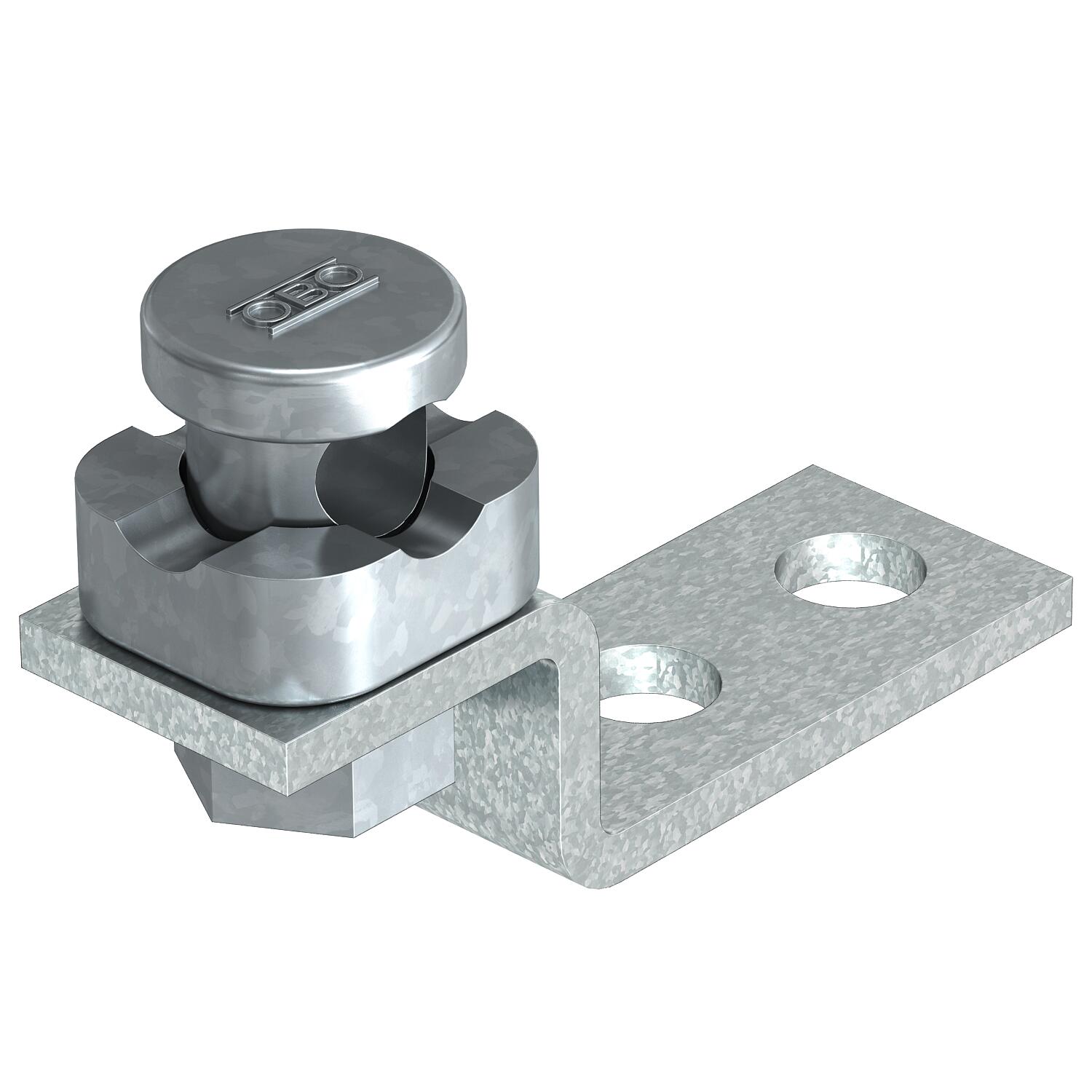

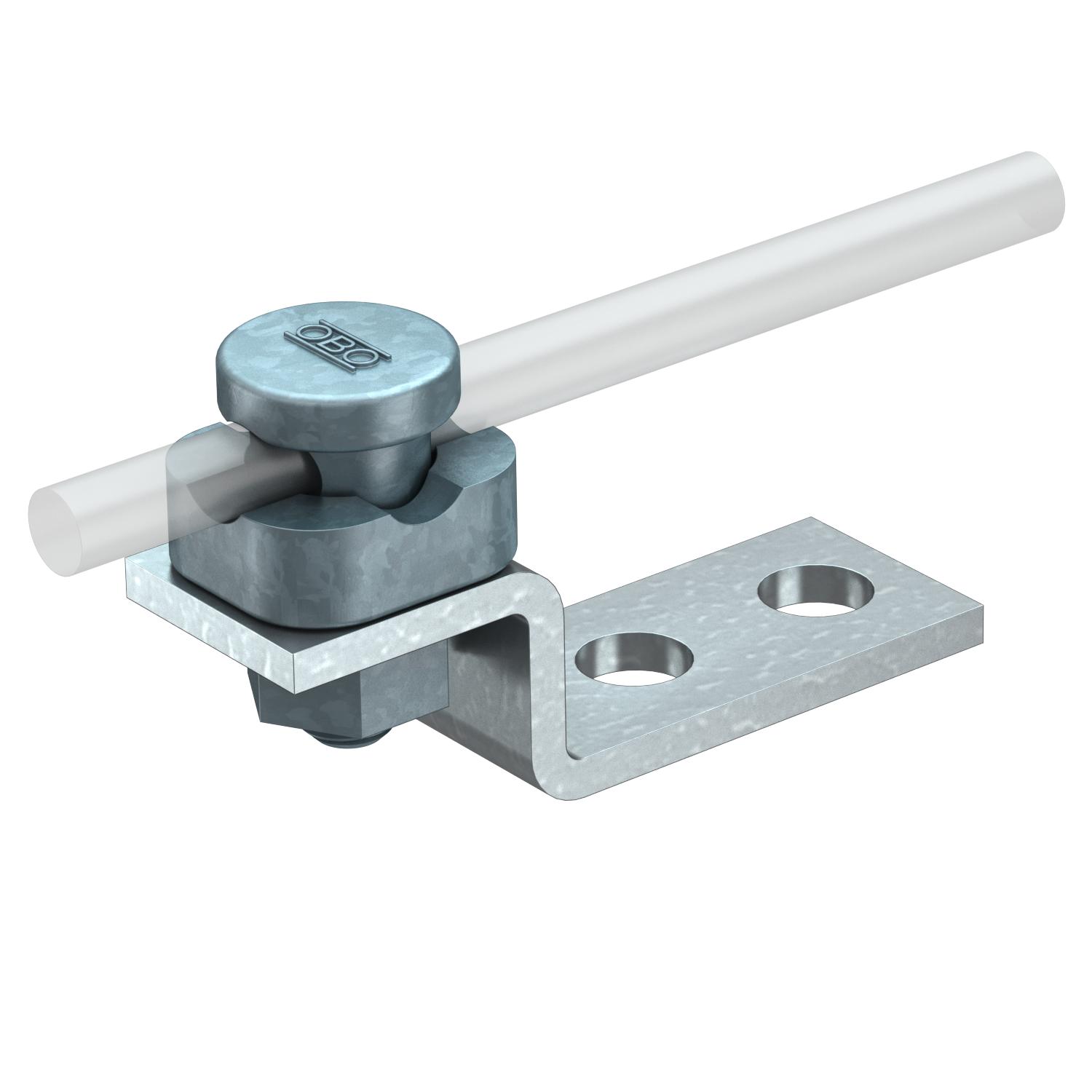

Connection and end piece with connector
Item no. 5304970 | EAN 4012195416951
- Product description
-
Product description

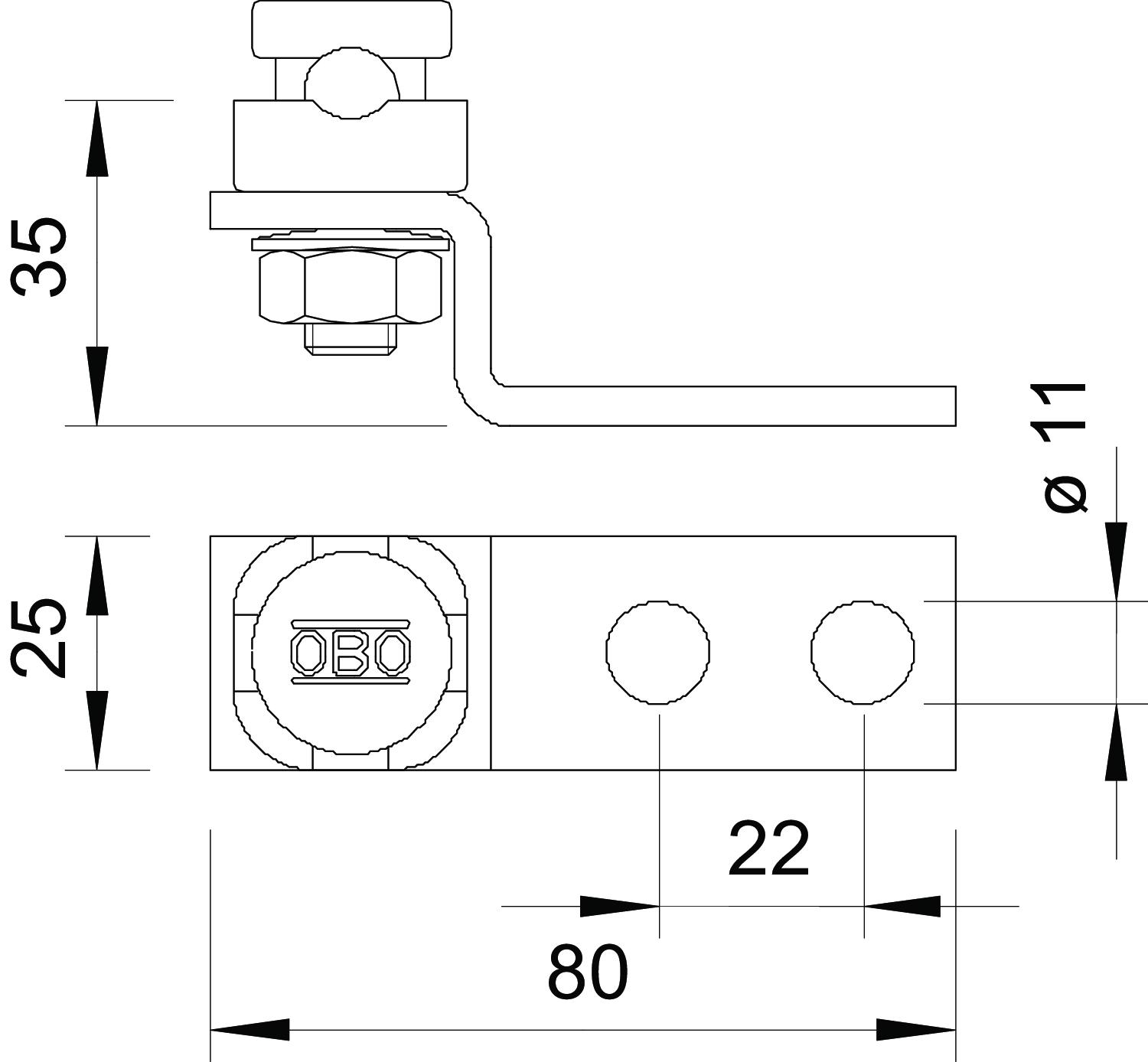

• With 2 attaching holes Ø 11 mm
• Installed with connector (single-piece) type 5001 DIN-FT
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Miscellaneous Surface Hot galvanized Type of connector End piece Type of fastening screw Clamping screw - All types
- Downloads
-
Data sheet 5009 / 5304970 , 0.18MB , pdfDeclaration of conformity 5009 / 5304970 , 0.06MB , pdfREACH Declaration of conformity 5009 / 5304970 , 0.27MB , pdfRoHS Declaration of conformity 5009 / 5304970 , 0.12MB , pdfLabel approval BET testing certificate, Connector 5009 , 0.08MB , pdf
