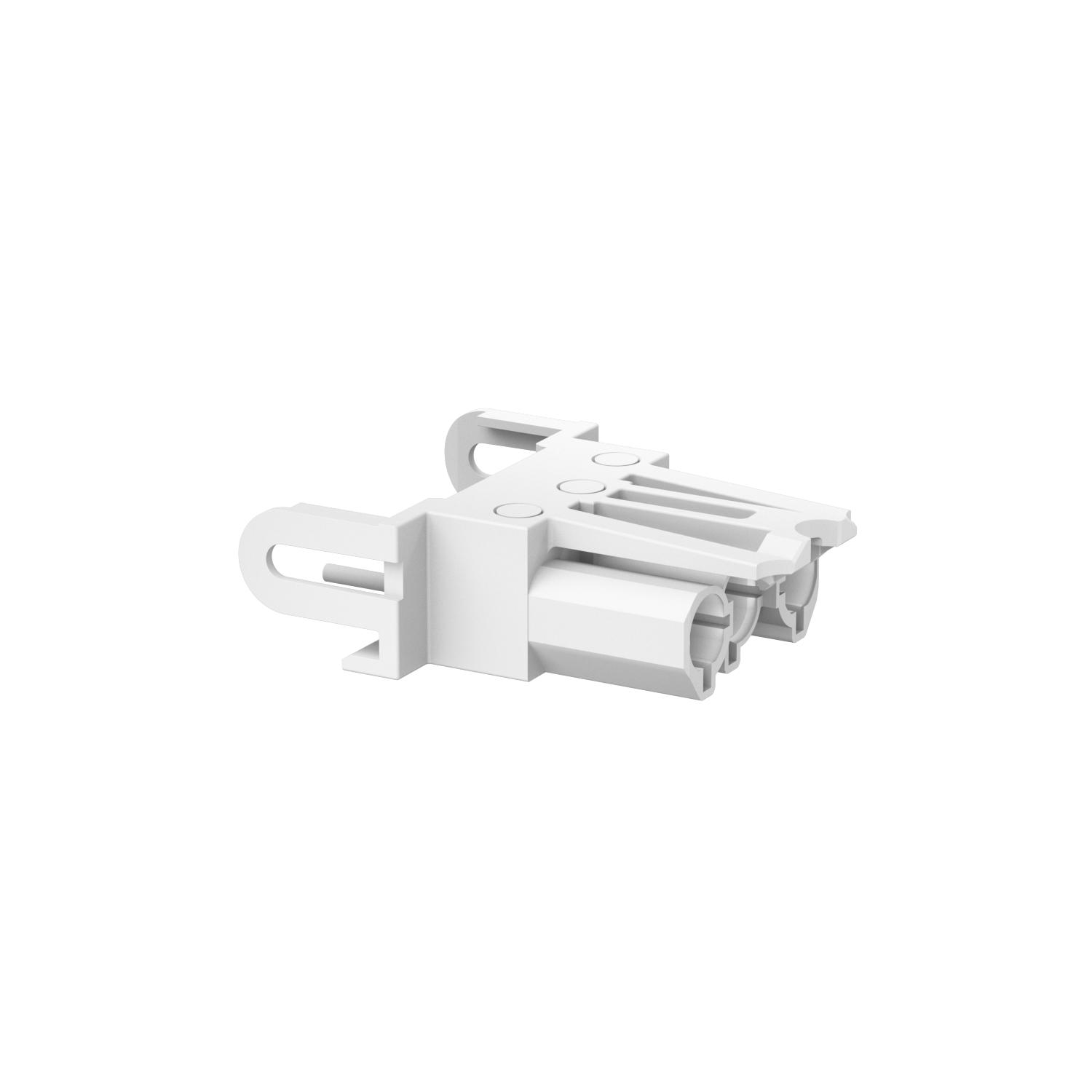

Connection adapter, straight, connector part
Item no. 6117193 | EAN 4012195483571
- Product description
-
Product descriptionConnector part adapter, straight, for connection to an STD-D0C / STD-D3C or STD-F0C / STD-F3C socket from the side, for VL extension cable with Wieland connector GST 18i 3p.
-
- Technical data
-
Technical data

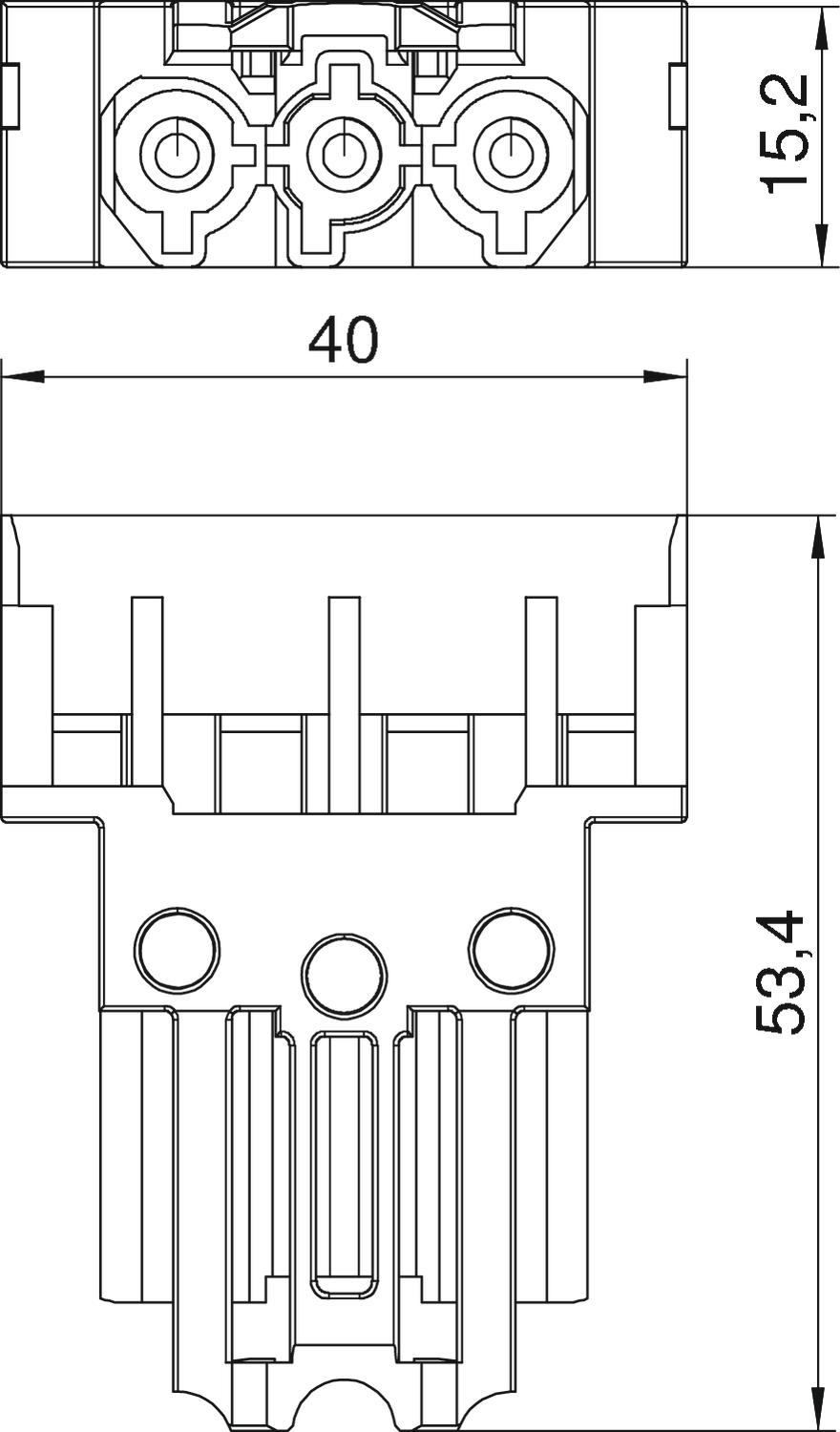

Built-in variants Installation part/plug connection Colour White Colour of the coding/contact insert White Colour of the separate adapter White Contact material CuZn Direction of insertion Straight Halogen-free yes Height 15,2 mm Length 53,4 mm Material Polyamide Mechanical encoding yes Nominal current 16 A Nominal voltage 250 V Pin labelling L, N, PE Plug-in system GST18 Pole number 3 Protection rating IP20 Surface treatment of the contacts Tin-plated Thread connection dimension No threaded connection Type of locking Integrated in plug connector Version of the device connection Connector Width 40 mm - All types
- Downloads
-
Data sheet STA-SKS S1 W / 6117193 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity STA-SKS S1 W / 6117193 , 0.12MB , pdfRoHS Declaration of conformity STA-SKS S1 W / 6117193 , 0.12MB , pdfNo invitation to tender text is available for this product.
