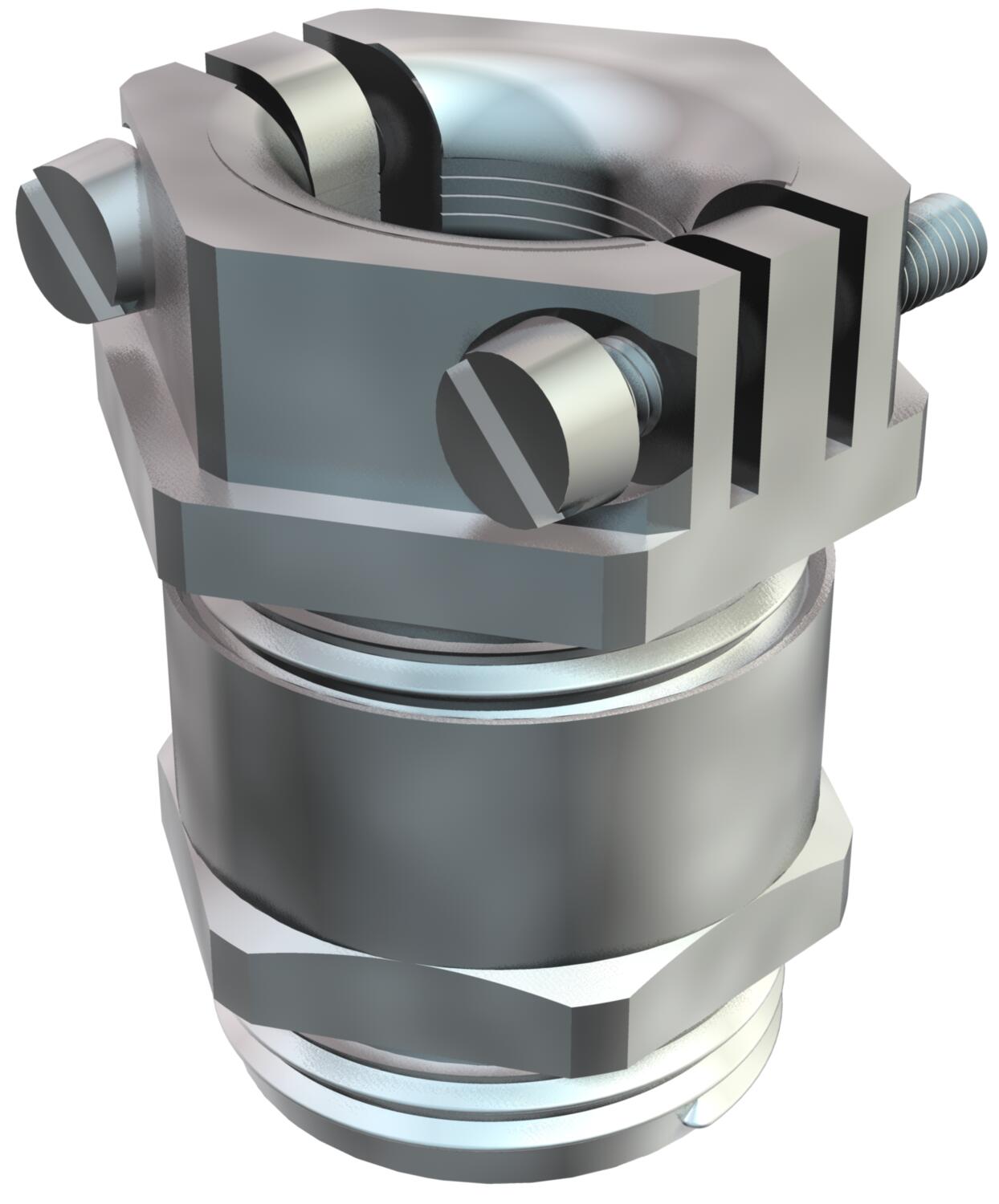

Cone cable gland, PG thread, strain relief, nickel-plated
Item no. 2046423 | EAN 4012195182290
- Product description
-
Product descriptionCable gland with centrically acting transverse clip strain relief in the pressure screw, bend protection of movable cables through strongly rounded pressure screw.
With Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With hexagonal intermediate support (similar to shape C 4 to DIN 46320).
* Prices according to DEL notation.
-
- Technical data
-
Technical data

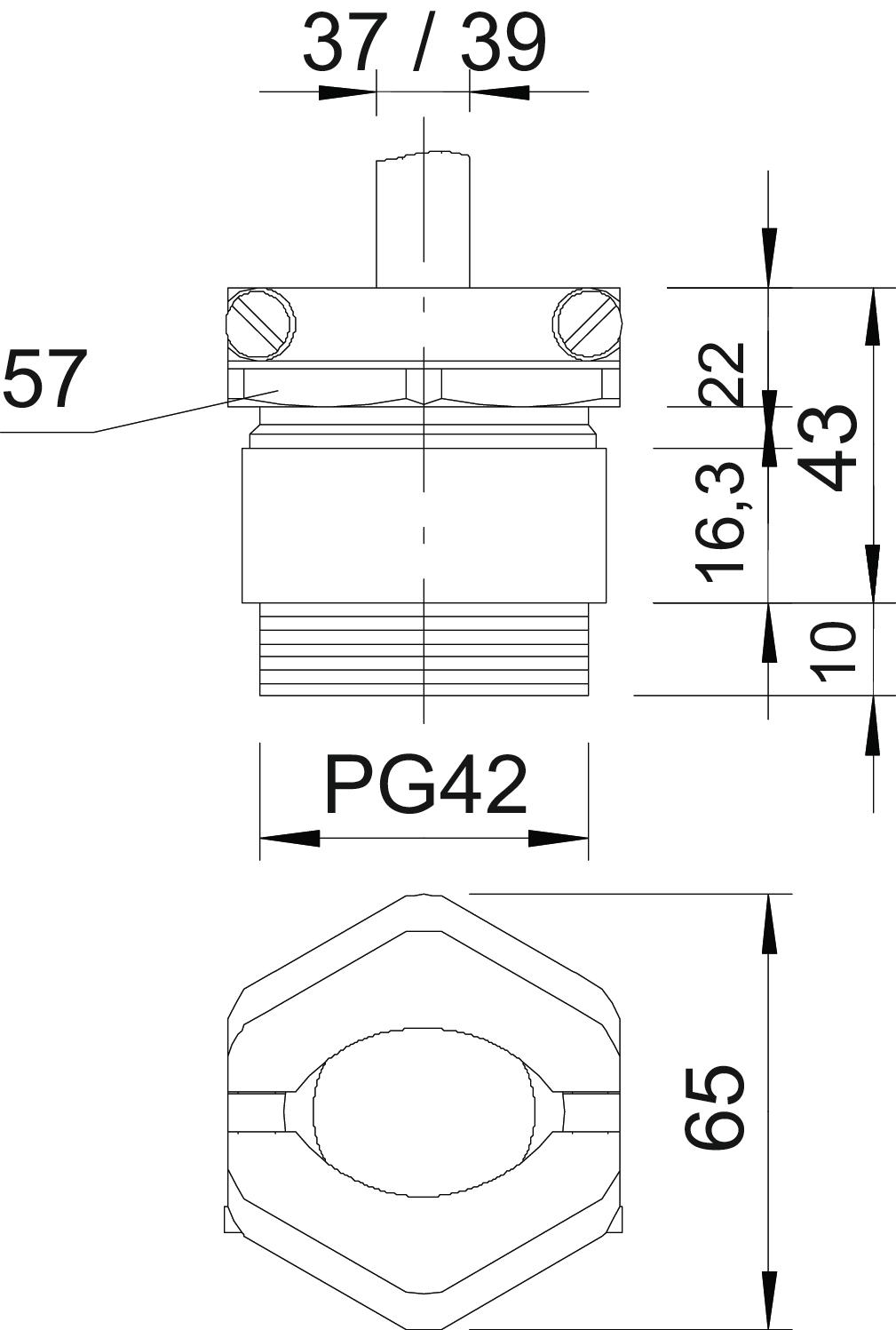

Bend protection no Dimension PG42 Dimension E 65 mm Dimension L max. 43 mm Dimension L1 10 mm Dimension L2 22 mm Dimension L3 16,3 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP65 Sealing area D, max. 39 mm Sealing area D, min. 37 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread Pg 42 Thread length 10 mm Thread type PG Type of seal Sealing ring WAF 57 WAF 1 57 mm WAF 2 59 mm With locknut no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, PG thread
169 MS PG42 2091429 50 piece - Downloads
-
Data sheet 159 MS PG42 / 2046423 , 0.23MB , pdfEU declaration of conformity 159 MS PG42 / 2046423 , 0.03MB , pdfREACH Declaration of conformity 159 MS PG42 / 2046423 , 0.12MB , pdfRoHS Declaration of conformity 159 MS PG42 / 2046423 , 0.12MB , pdf
