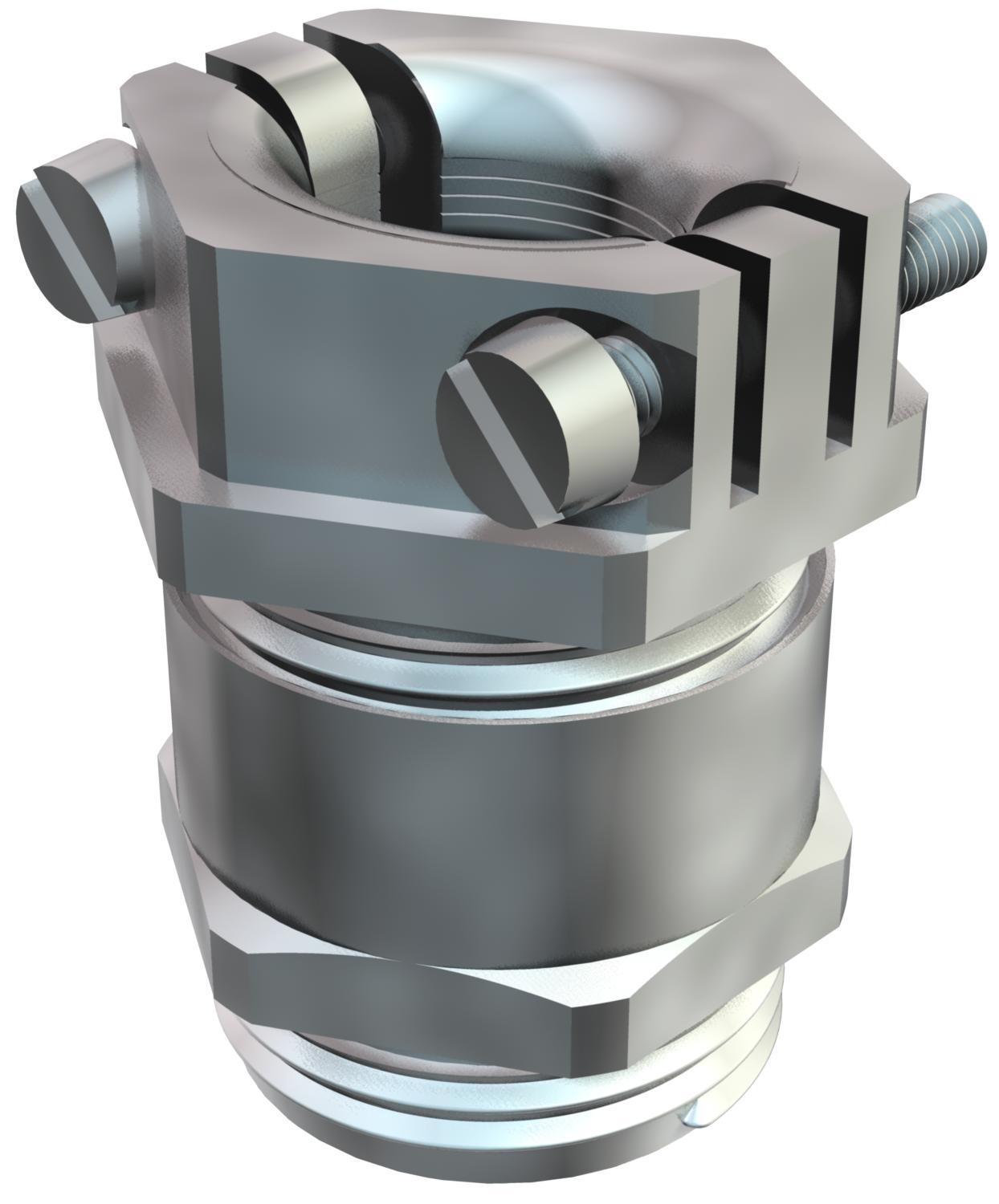

Cone cable gland, PG thread, strain relief, nickel-plated
Item no. 2046121 | EAN 4012195181996
- Product description
-
Product descriptionCable gland with centrically acting transverse clip strain relief in the pressure screw, bend protection of movable cables through strongly rounded pressure screw.
With Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With hexagonal intermediate support (similar to shape C 4 to DIN 46320).
* Prices according to DEL notation.
-
- Technical data
-
Technical data

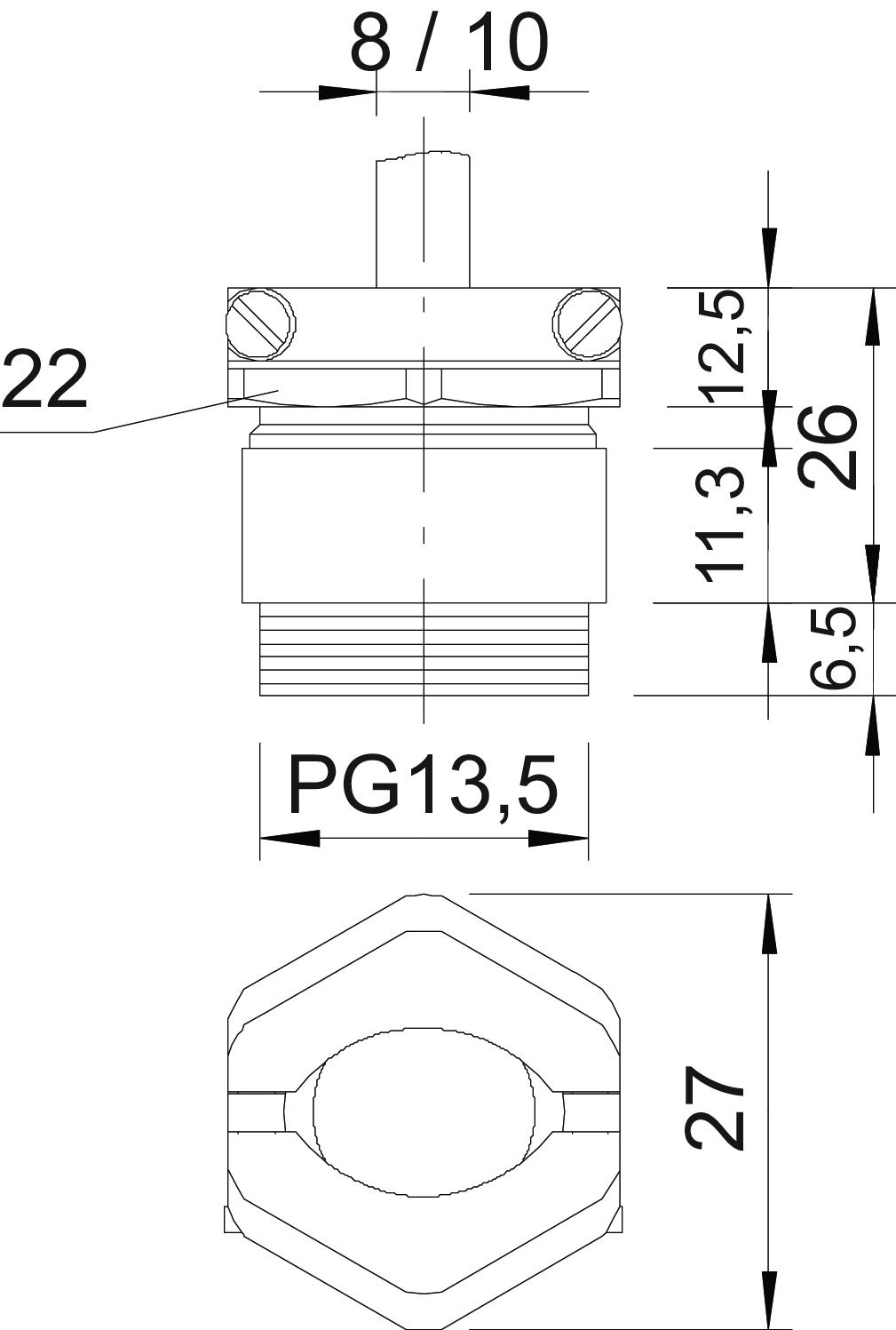

Bend protection no Dimension PG13,5 Dimension E 27 mm Dimension L max. 26 mm Dimension L1 6,5 mm Dimension L2 12,5 mm Dimension L3 11,3 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP65 Sealing area D, max. 10 mm Sealing area D, min. 8 mm Sealing insert, multiple no Strain relief option yes Surface Nickel-plated Thread Pg 13,5 Thread length 6,5 mm Thread type PG Type of seal Sealing ring WAF 22 WAF 1 22 mm WAF 2 24 mm With locknut no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, PG thread
169 MS PG13.5 2091135 100 piece - Downloads
-
