Cone cable gland, PG thread, small cutting ring, nickel-plated
Item no. 2082098 | EAN 4012195187035
- Product description
-
Product description
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With simple sealing ring, with small internal diameter.
* Prices according to DEL notation.
-
- Technical data
-
Technical data

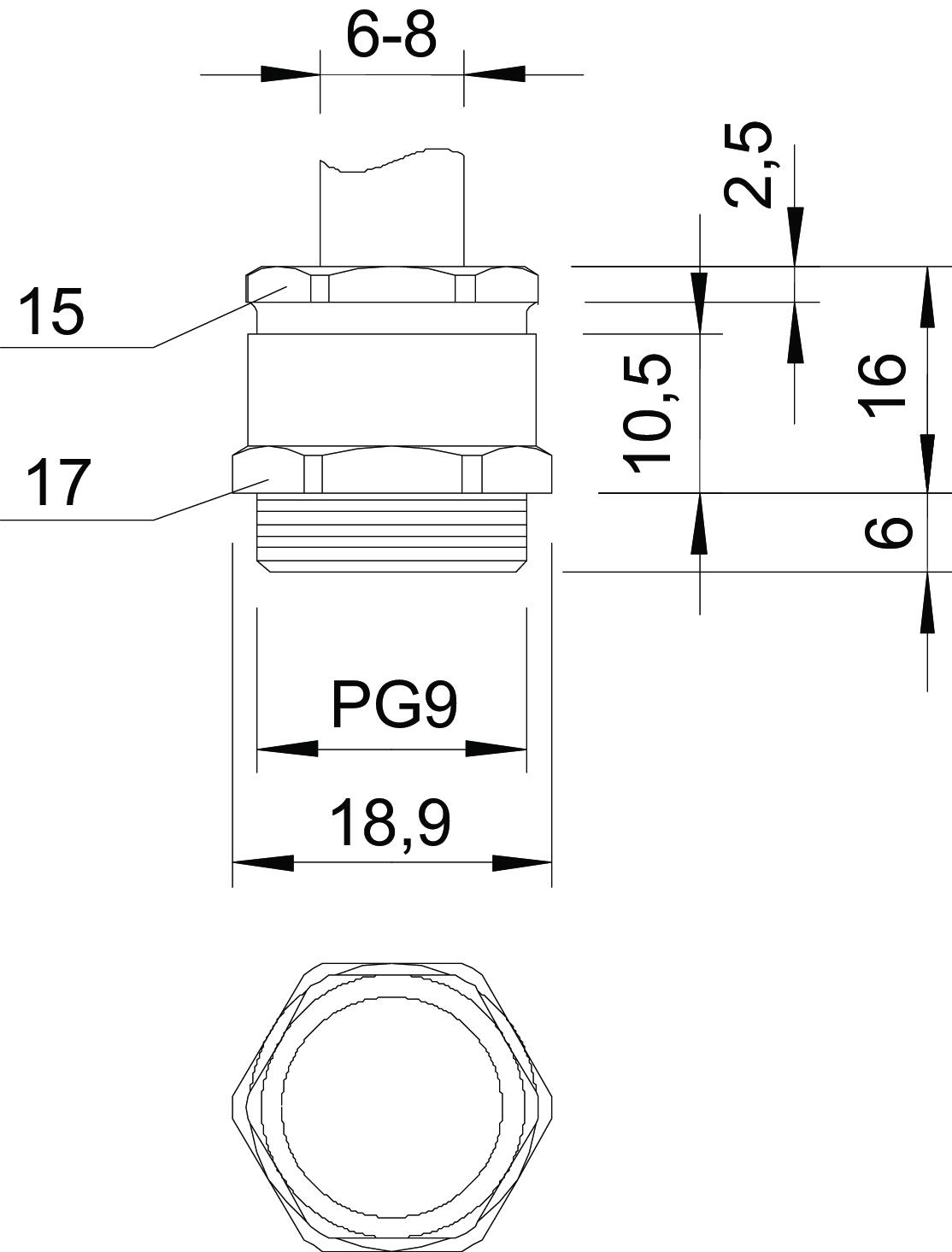

Bend protection no Dimension PG9 Dimension E 18,9 mm Dimension L 16 mm Dimension L max. 16 mm Dimension L1 6 mm Dimension L2 10,5 mm Dimension L3 2,5 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP65 Sealing area D, max. 8 mm Sealing area D, min. 6 mm Sealing insert, multiple no Strain relief option no Surface Nickel-plated Thread Pg 9 Thread length 6 mm Thread type PG Type of seal Sealing ring WAF 1 17 mm WAF 2 15 mm With locknut no - All types
- Downloads
-
Data sheet 163 MS PG 9 / 2082098 , 0.21MB , pdfREACH Declaration of conformity 163 MS PG 9 / 2082098 , 0.12MB , pdfRoHS Declaration of conformity 163 MS PG 9 / 2082098 , 0.12MB , pdf
