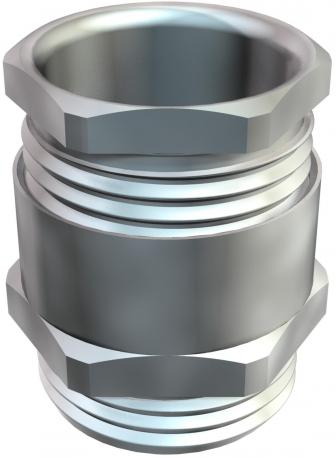

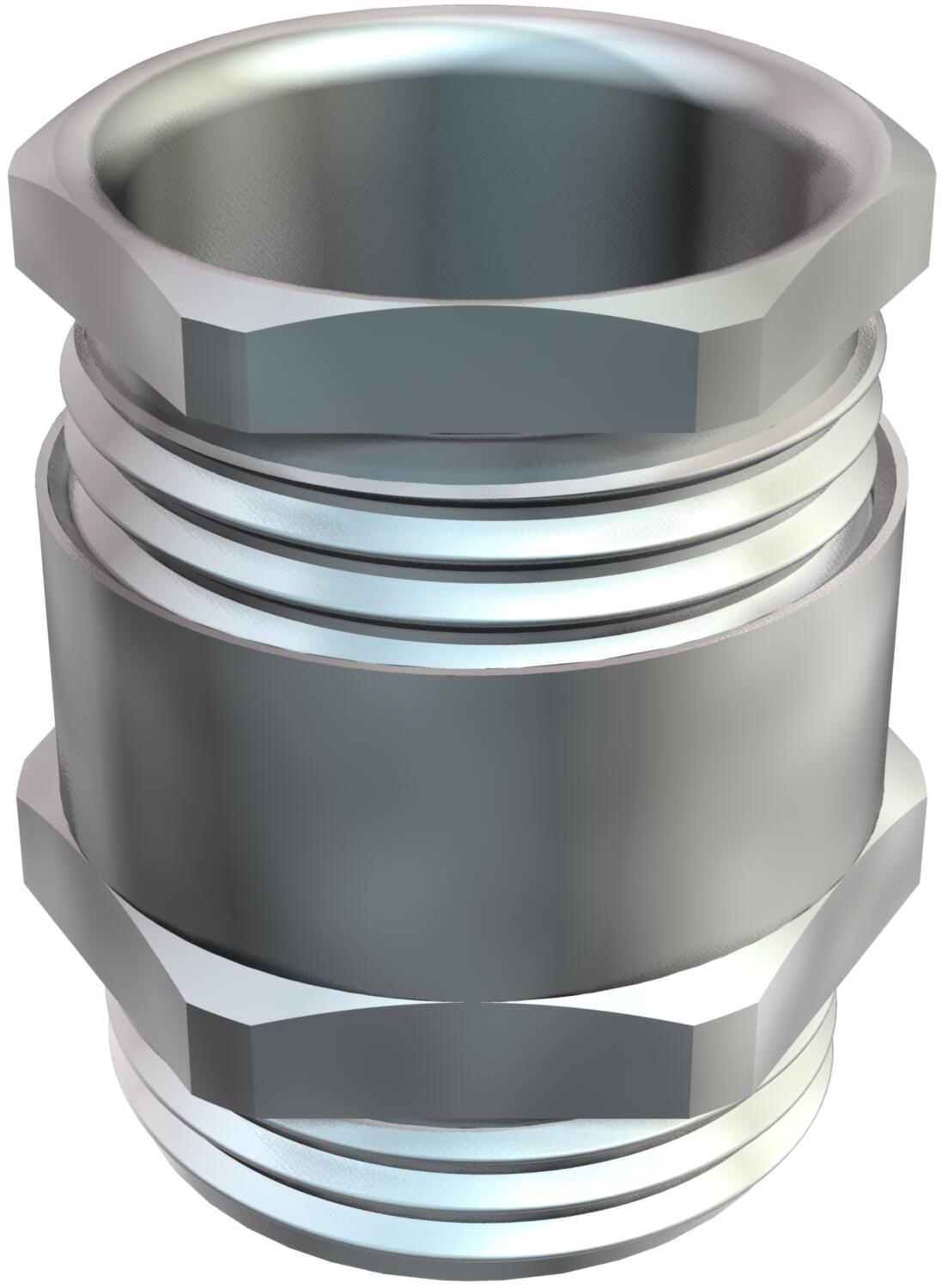

Cone cable gland, PG thread, small cutting ring, nickel-plated
Item no. 2082411 | EAN 4012195187455
- Product description
-
Product description
Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With simple sealing ring, with small internal diameter.
* Prices according to DEL notation.
-
- Technical data
-
Technical data
Bend protection no Dimension PG42 Dimension E 61 mm Dimension L 33 mm Dimension L max. 33 mm Dimension L1 10 mm Dimension L2 22 mm Dimension L3 6 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP54 Sealing area D, max. 39 mm Sealing area D, min. 37 mm Sealing insert, multiple no Strain relief option no Surface Nickel-plated Thread Pg 42 Thread length 10 mm Thread type PG Type of seal Sealing ring WAF 1 57 mm WAF 2 54 mm With locknut no - All types
- Downloads
-
Data sheet 163 MS PG42 / 2082411 , 0.21MB , pdfREACH Declaration of conformity 163 MS PG42 / 2082411 , 0.12MB , pdfRoHS Declaration of conformity 163 MS PG42 / 2082411 , 0.12MB , pdf
