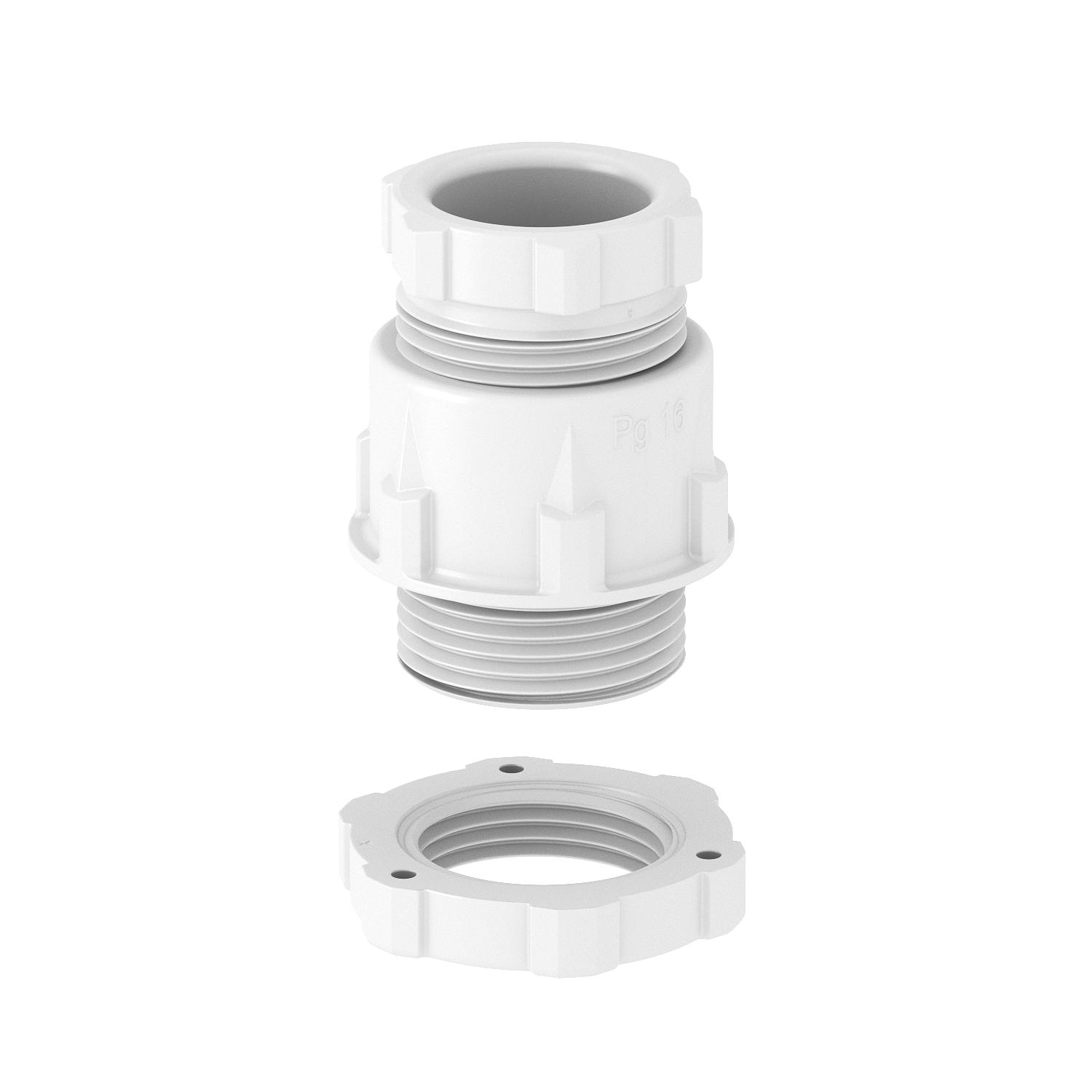

Cone cable gland, PG thread, light grey
Item no. 2038430 | EAN 4012196688722
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430
Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant
-
- Technical data
-
Technical data

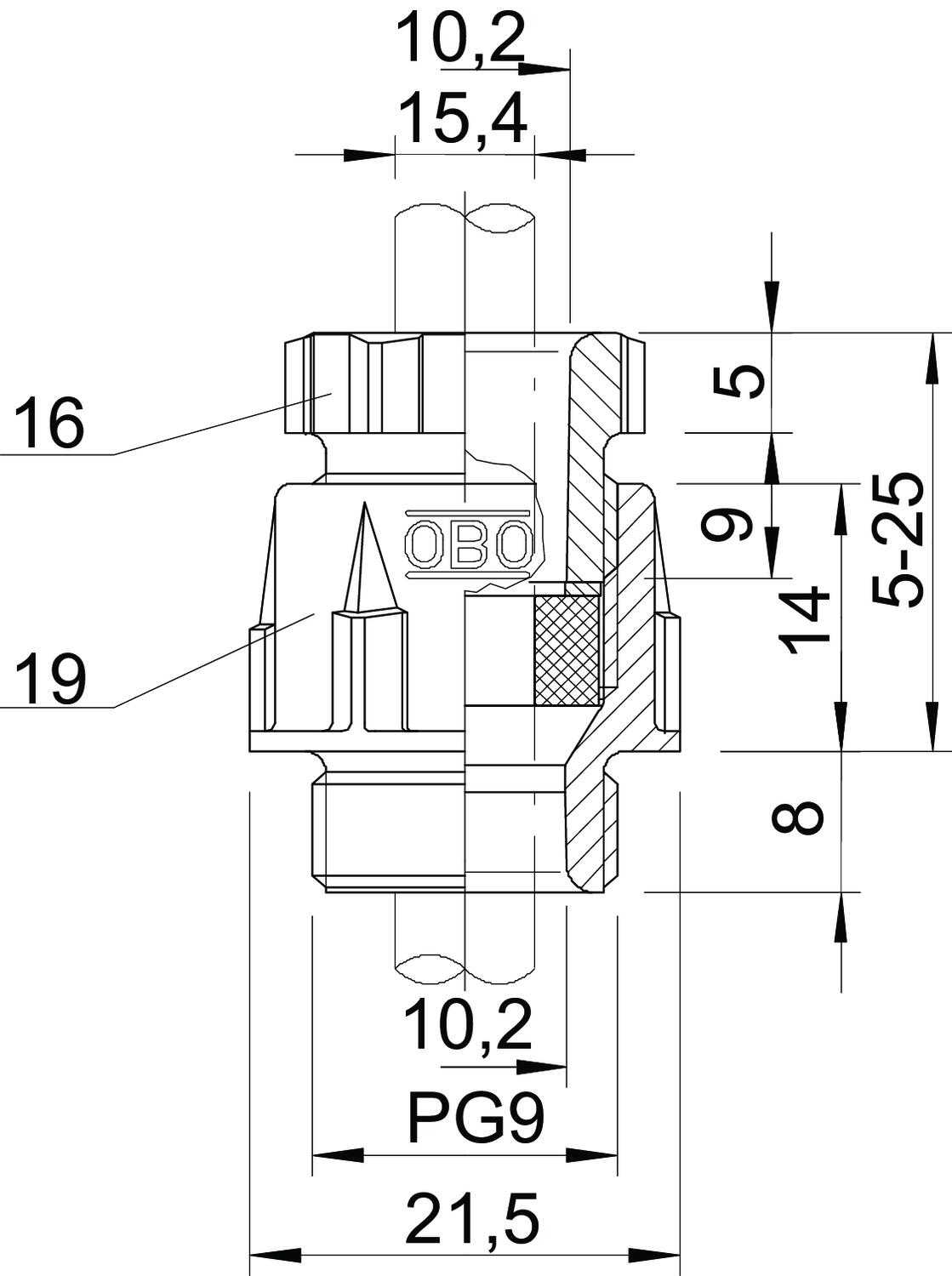

Bend protection no Colour Light grey; RAL 7035 Dimension PG9 Dimension D2 21,5 mm Dimension D3 10,2 mm Dimension D4 10,2 mm Dimension E1 (mm) 21,5 mm Dimension E2 10,2 mm Dimension E3 24 mm Dimension L max. 25 mm Dimension L min. 5 mm Dimension L1 8 mm Dimension L2 14 mm Dimension L3 5 mm Dimension L4 9 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polystyrene Nominal thread size 9 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP65 Sealing area D, max. 7 mm Sealing area D, min. 4,5 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 9 Thread type PG Type of seal Sealing ring Version for Straight WAF 1 19 mm WAF 2 16 mm WAF 3 22 mm With locknut no - All types
- Downloads
-
Data sheet 106+PG09 MG LGR / 2038430 , 0.25MB , pdfEU declaration of conformity 106+PG09 MG LGR / 2038430 , 0.13MB , pdf
