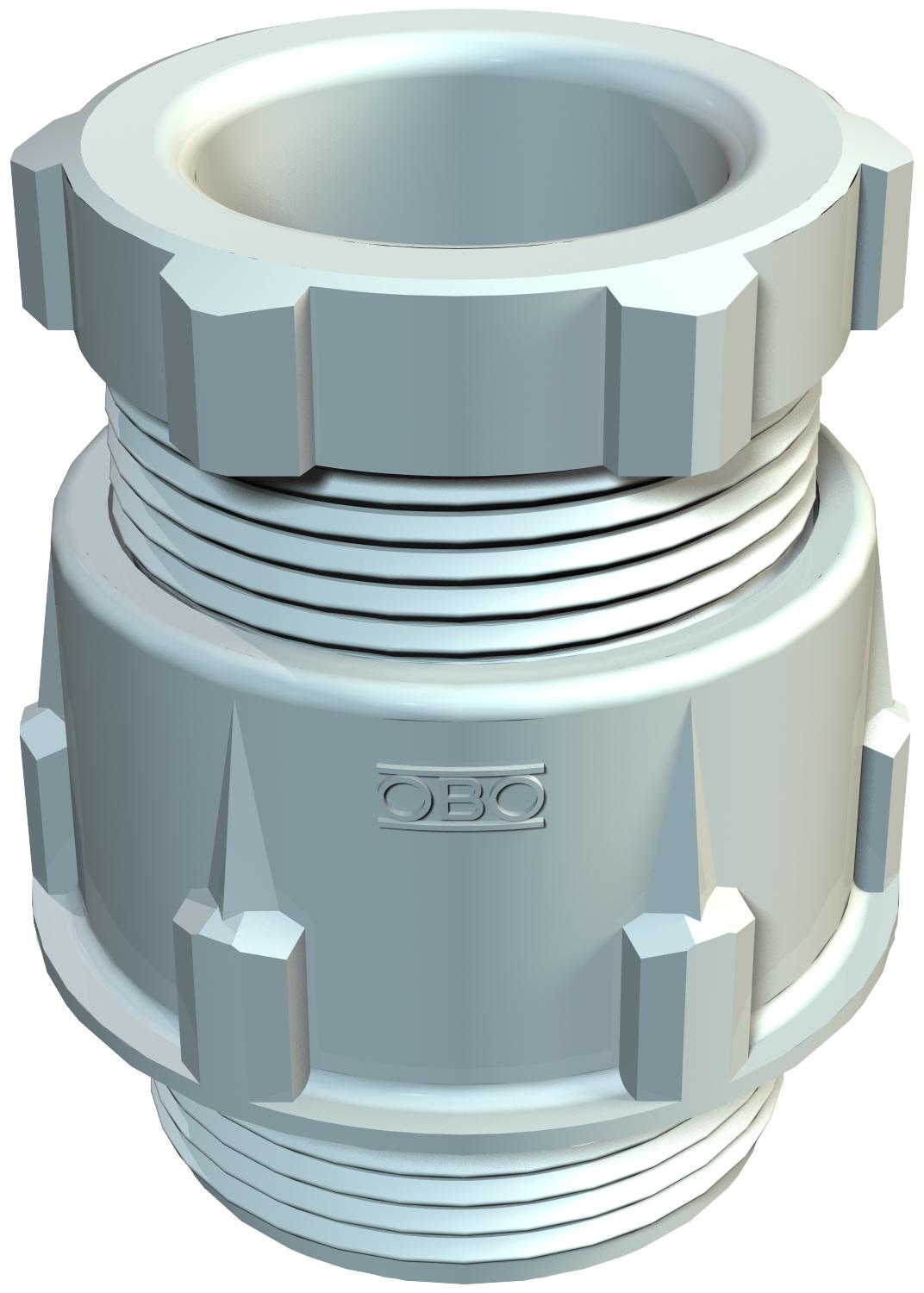

Cone cable gland, PG thread, light grey
Item no. 2036096 | EAN 4012195172215
- Product description
-
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG9 Dimension D1 7 mm Dimension D2 21,5 mm Dimension D3 10,5 mm Dimension D4 11 mm Dimension G Pg9 mm Dimension L max. 25 mm Dimension L1 8 mm Dimension L2 14 mm Dimension L3 5 mm Dimension L4 9 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 30 mm Impact-resistant no Length 21,5 mm Material Polystyrene Nominal thread size 9 Protection rating IP65 Sealing area D, max. 7 mm Sealing area D, min. 4,5 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 9 Thread length 8 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 19 mm WAF 2 16 mm Width 21,5 mm With locknut no - All types
