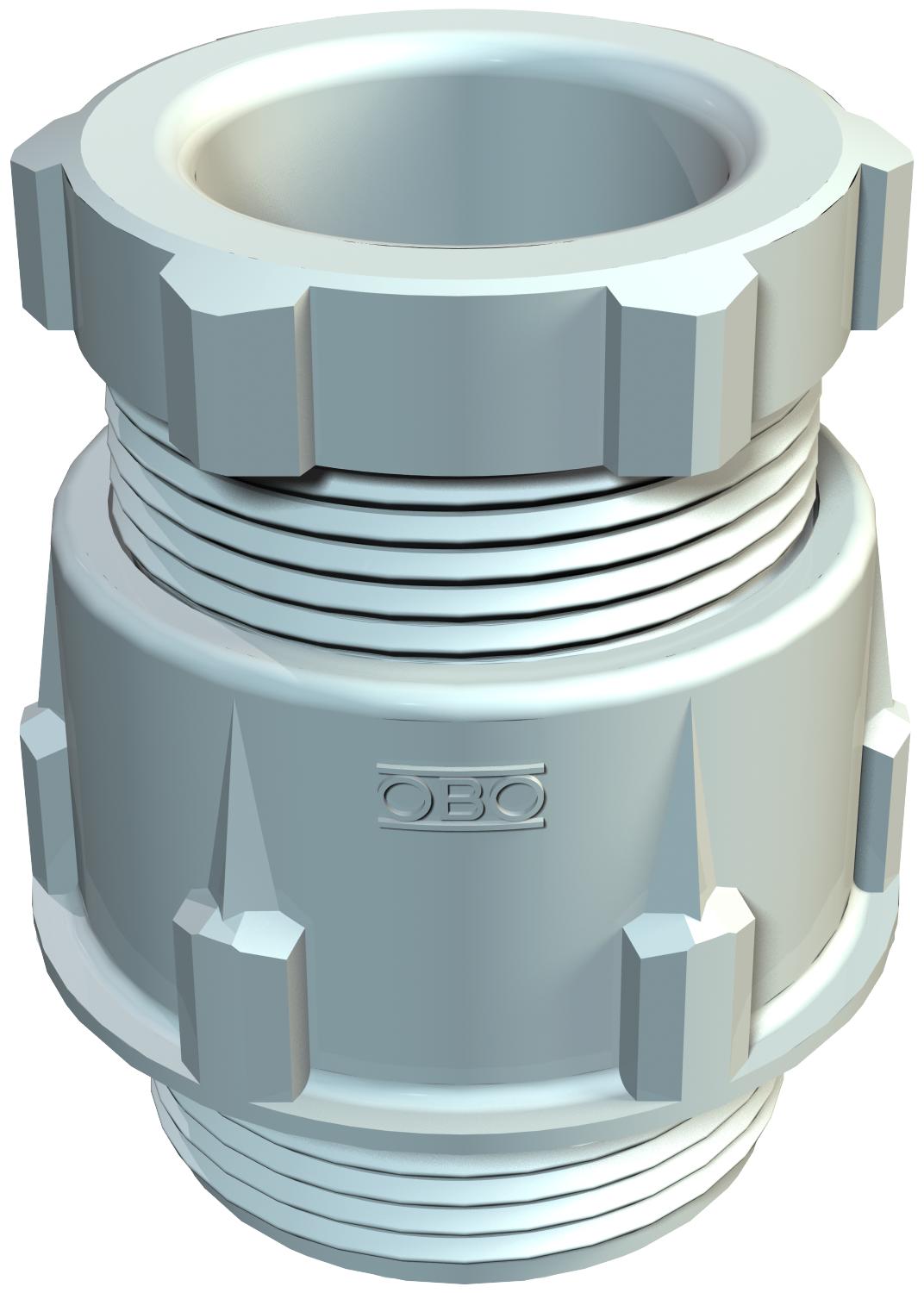

Cone cable gland, PG thread, light grey
Item no. 2036487 | EAN 4012195173113
- Product description
-
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG48 Dimension D1 44 mm Dimension D2 74 mm Dimension D3 50 mm Dimension D4 45,5 mm Dimension G Pg48 mm Dimension L max. 48 mm Dimension L1 14 mm Dimension L2 27 mm Dimension L3 9 mm Dimension L4 18,5 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 60 mm Impact-resistant no Length 70 mm Material Polystyrene Nominal thread size 48 Protection rating IP65 Sealing area D, max. 44 mm Sealing area D, min. 37 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 48 Thread length 14 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 65 mm WAF 2 60 mm Width 74 mm With locknut no - All types
