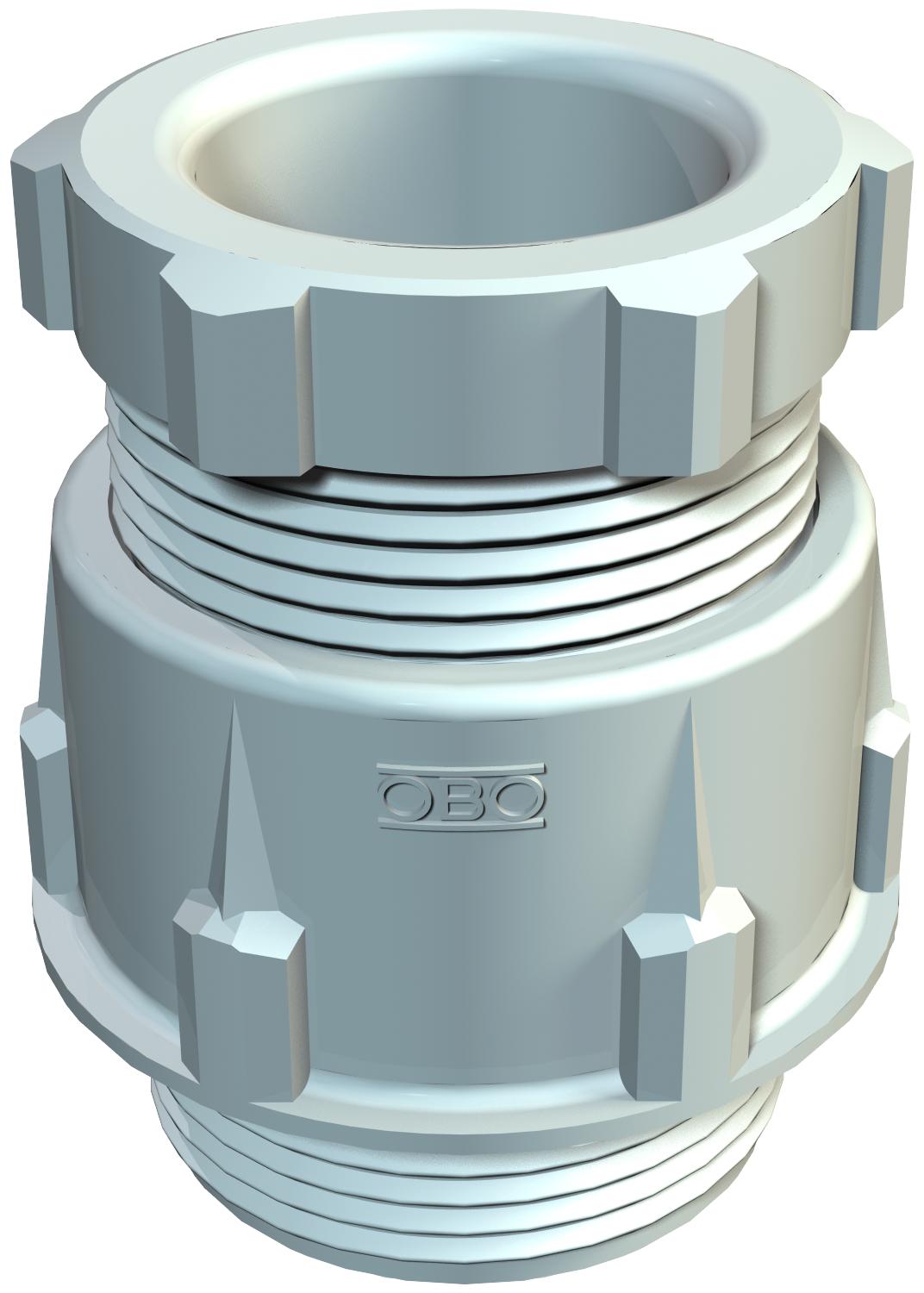

Cone cable gland, PG thread, light grey
Item no. 2036428 | EAN 4012195172994
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG42 Dimension D1 38 mm Dimension D2 68 mm Dimension D3 45 mm Dimension D4 40,5 mm Dimension G Pg42 mm Dimension L max. 48 mm Dimension L1 13 mm Dimension L2 27 mm Dimension L3 9 mm Dimension L4 18,5 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 59 mm Impact-resistant no Length 65 mm Material Polystyrene Nominal thread size 42 Protection rating IP65 Sealing area D, max. 38 mm Sealing area D, min. 30 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 42 Thread length 13 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 60 mm WAF 2 55 mm Width 68 mm With locknut no - All types
