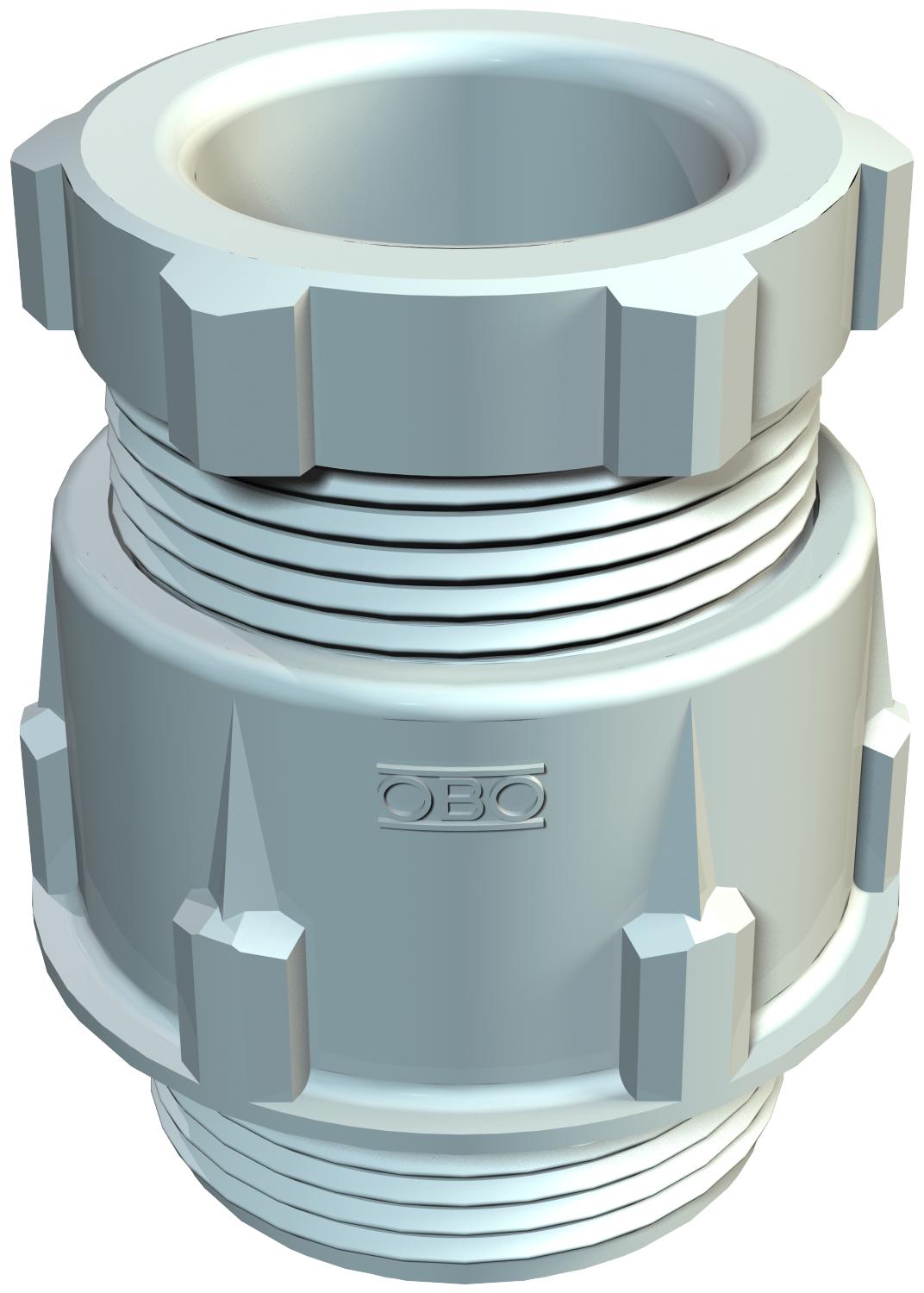

Cone cable gland, PG thread, light grey
Item no. 2036363 | EAN 4012195172871
- Product description
-
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG36 Dimension D1 32 mm Dimension D2 52 mm Dimension D3 38 mm Dimension D4 34,5 mm Dimension G Pg36 mm Dimension L max. 43 mm Dimension L1 12 mm Dimension L2 24 mm Dimension L3 8 mm Dimension L4 17 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 52 mm Impact-resistant no Length 58 mm Material Polystyrene Nominal thread size 36 Protection rating IP65 Sealing area D, max. 33 mm Sealing area D, min. 25 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 36 Thread length 12 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 53 mm WAF 2 50 mm Width 60 mm With locknut no - All types
