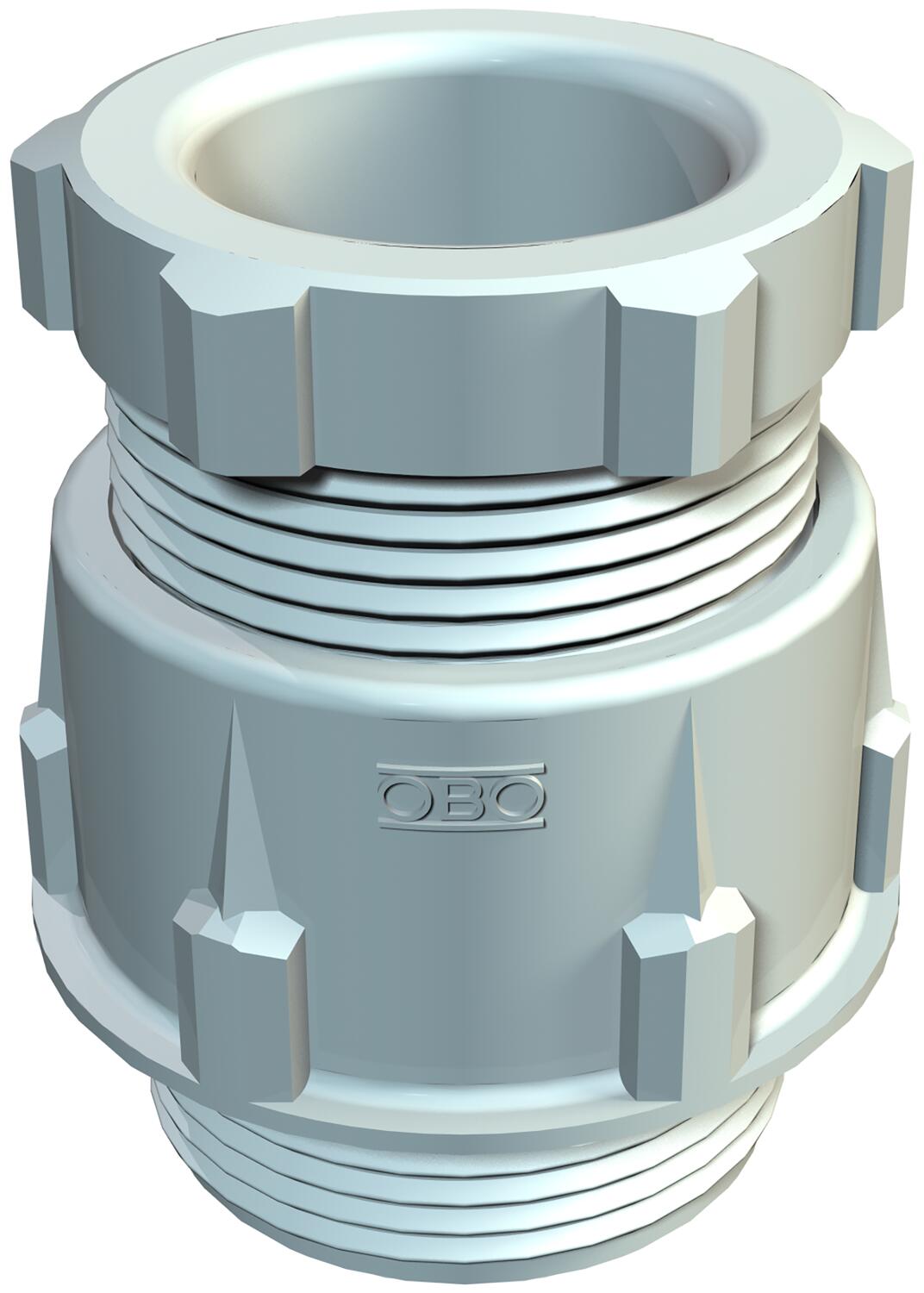

Cone cable gland, PG thread, light grey
Item no. 2036215 | EAN 4012195172635
- Product description
-
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG21 Dimension D1 18 mm Dimension D2 37,5 mm Dimension D3 21,2 mm Dimension D4 21 mm Dimension G Pg21 mm Dimension L max. 38 mm Dimension L1 10 mm Dimension L2 19 mm Dimension L3 7 mm Dimension L4 17 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 48 mm Impact-resistant no Length 37,5 mm Material Polystyrene Nominal thread size 21 Protection rating IP65 Sealing area D, max. 18 mm Sealing area D, min. 14 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 21 Thread length 11 mm Thread type PG Type of seal Sealing ring Version for Straight WAF 1 33 mm WAF 2 30 mm Width 37,5 mm With locknut no - All types
