Cone cable gland, PG thread, light grey
Item no. 2038436 | EAN 4012196688777
- Product description
-
Product description
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430
Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant
-
- Technical data
-
Technical data

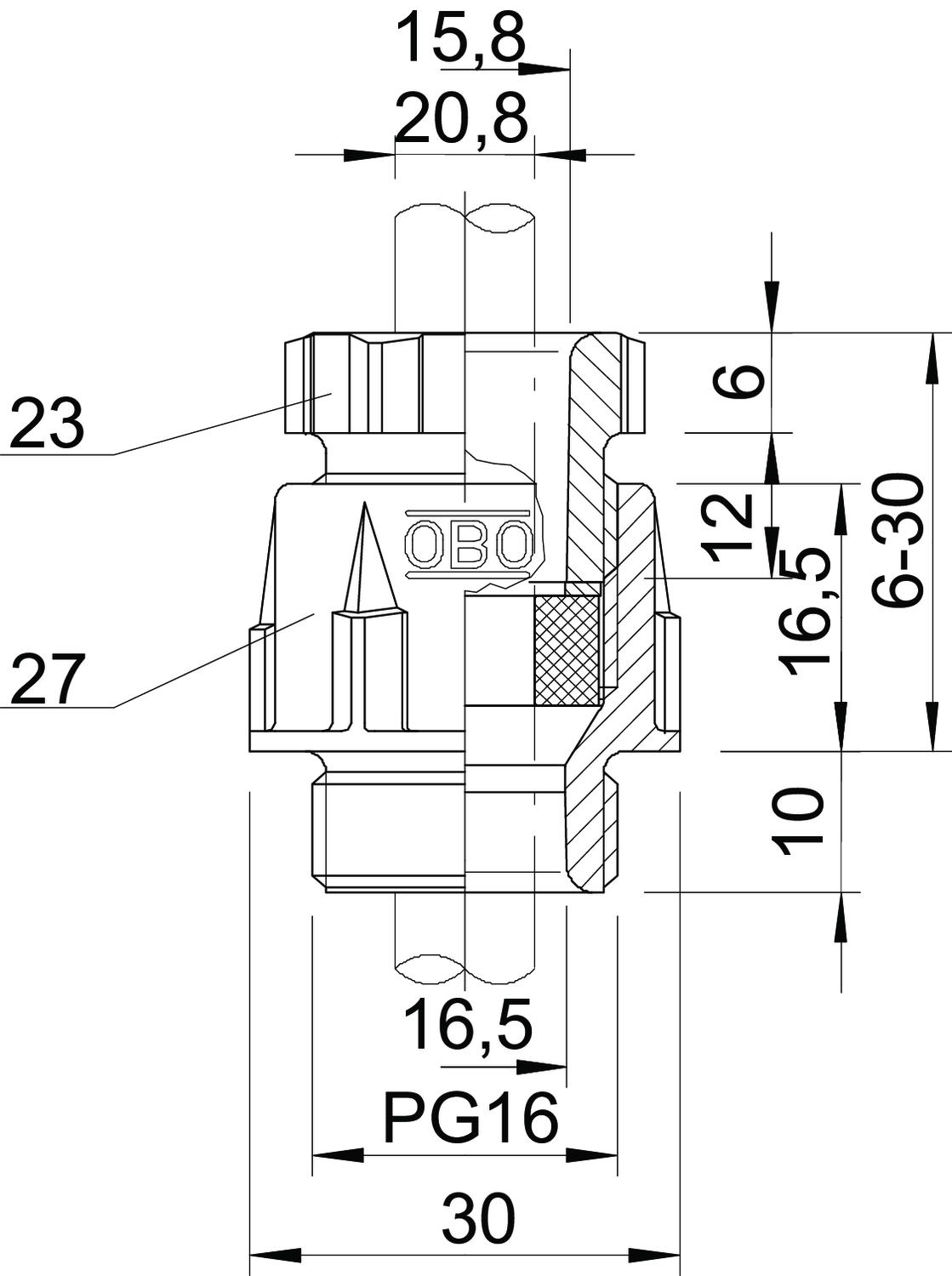

Bend protection no Colour Light grey; RAL 7035 Dimension PG16 Dimension D2 30 mm Dimension D3 15,8 mm Dimension D4 16,5 mm Dimension E1 (mm) 30 mm Dimension E2 15,8 mm Dimension E3 33 mm Dimension L max. 30 mm Dimension L min. 6 mm Dimension L1 10 mm Dimension L2 16,5 mm Dimension L3 6 mm Dimension L4 12 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Polystyrene Nominal thread size 16 Permitted temperature range, max. 65 °C Permitted temperature range, min. -20 °C Protection rating IP65 Sealing area D, max. 14 mm Sealing area D, min. 10 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 16 Thread type PG Type of seal Sealing ring Version for Straight WAF 1 27 mm WAF 2 23 mm WAF 3 30 mm With locknut no - All types
- Downloads
-
Data sheet 106+PG16 MG LGR / 2038436 , 0.23MB , pdfDeclaration of conformity 106+PG16 MG LGR / 2038436 , 0.13MB , pdf
