Cone cable gland, PG thread, cutting ring, nickel-plated
Item no. 2082543 | EAN 4012195187691
- Product description
-
Product descriptionCable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.
Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With cutting ring.
* Prices according to DEL notation.
-
- Technical data
-
Technical data

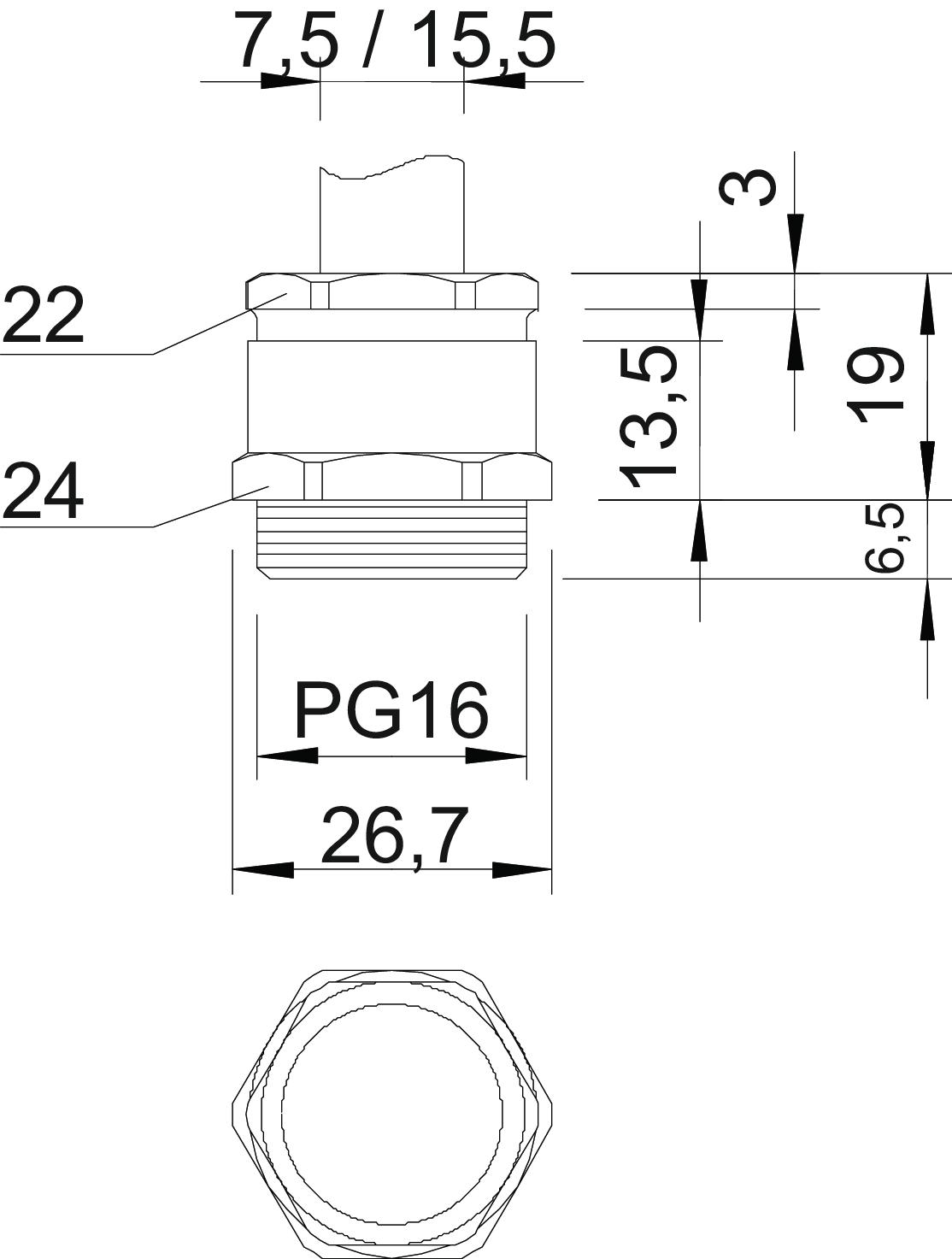

Bend protection no Dimension PG16 Dimension E 26,7 mm Dimension L 19 mm Dimension L max. 19 mm Dimension L1 6,5 mm Dimension L2 13,5 mm Dimension L3 3 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP54 Sealing area D, max. 15,5 mm Sealing area D, min. 7,5 mm Sealing insert, multiple no Strain relief option no Surface Nickel-plated Thread Pg 16 Thread length 6,5 mm Thread type PG Type of seal Cuttable sealing ring WAF 1 24 mm WAF 2 22 mm With locknut no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Locknut, PG thread
169 MS PG16 2091151 100 piece - Downloads
-
