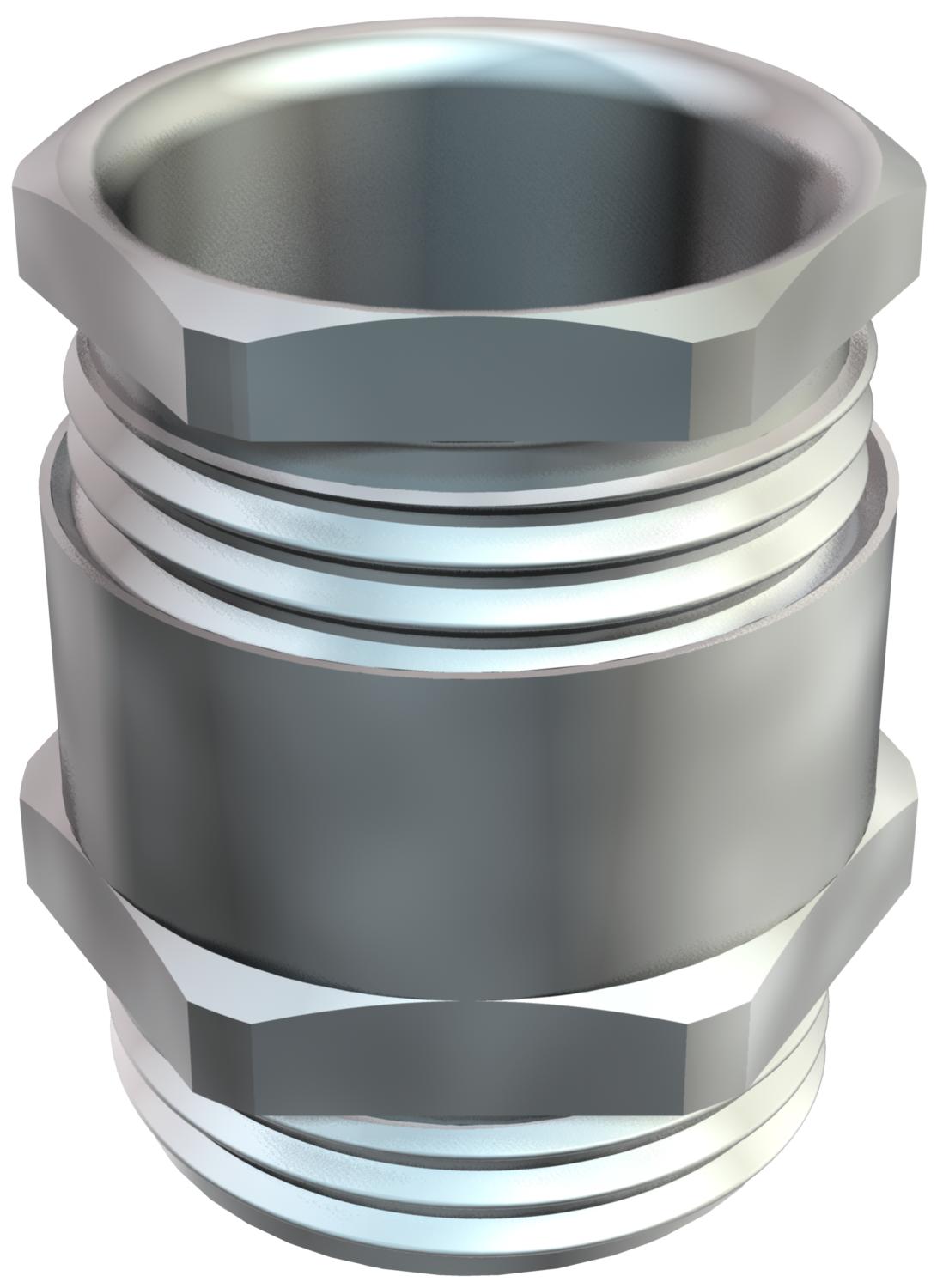

Cone cable gland, metric thread, small cutting ring, nickel-plated
Item no. 2083620 | EAN 4012195481393
- Product description
-
Product descriptionCable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel.
NR/SBR sealing ring.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.
With simple sealing ring, with small internal diameter.
* Prices according to DEL notation.
-
- Technical data
-
Technical data

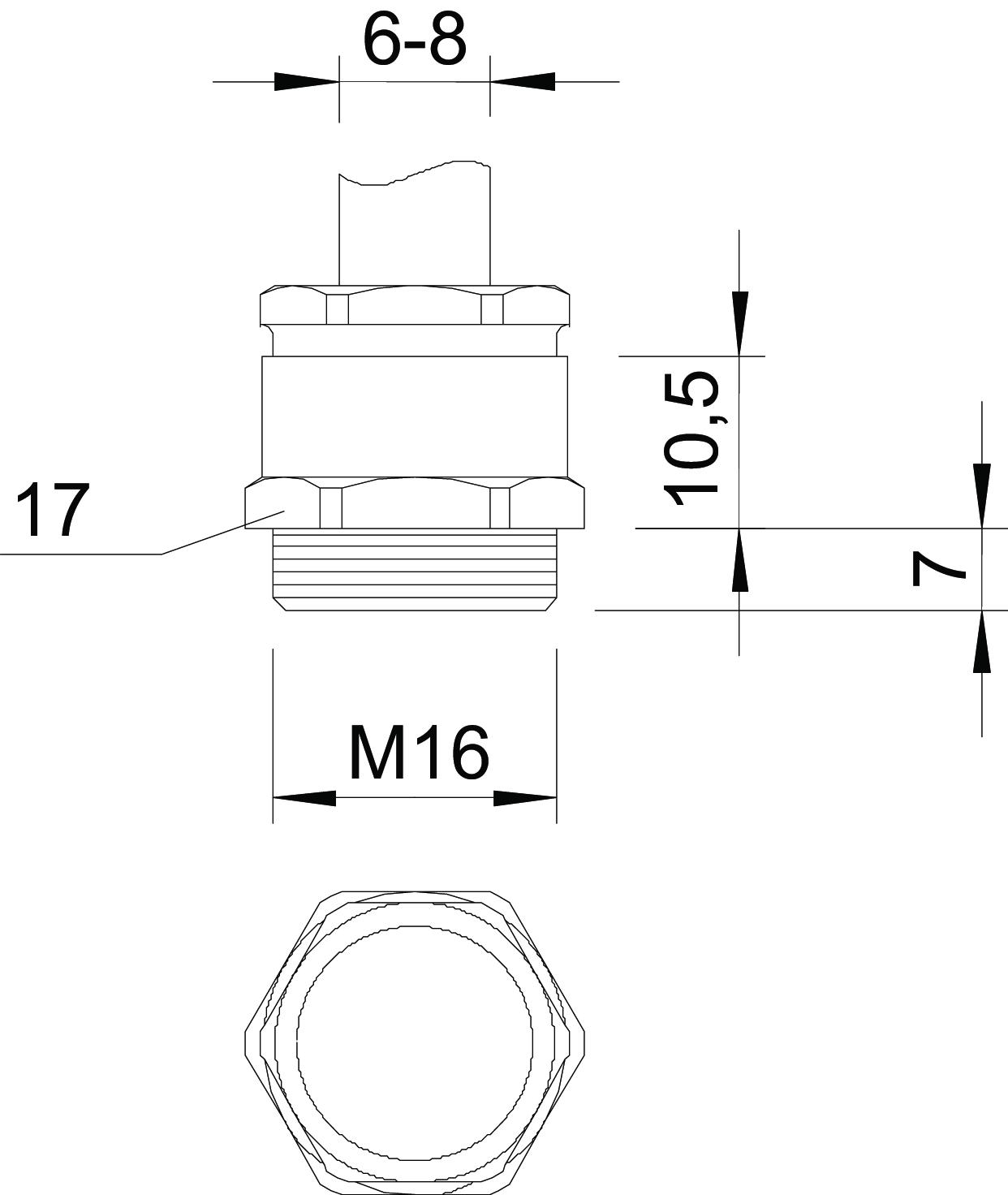

Bend protection no Dimension M16 Dimension E 18,9 mm Dimension L1 7 mm Dimension L2 10,5 mm explosion-proof no Fibre-glass reinforced no Flat cable gland no For Ex zone Without Halogen-free no Impact-resistant no Material Brass Protection rating IP54 Sealing area D, max. 8 mm Sealing area D, min. 6 mm Sealing insert, multiple no Strain relief option no Surface Nickel-plated Thread M16 x 1,5 Thread length 7 mm Thread type Metric Type of seal Sealing ring WAF 1 17 mm WAF 2 15 mm With locknut no - All types
- Downloads
-
Data sheet 163 MS M16 / 2083620 , 0.24MB , pdfEU declaration of conformity 163 MS M16 / 2083620 , 0.13MB , pdfREACH Declaration of conformity 163 MS M16 / 2083620 , 0.12MB , pdfRoHS Declaration of conformity 163 MS M16 / 2083620 , 0.12MB , pdf
