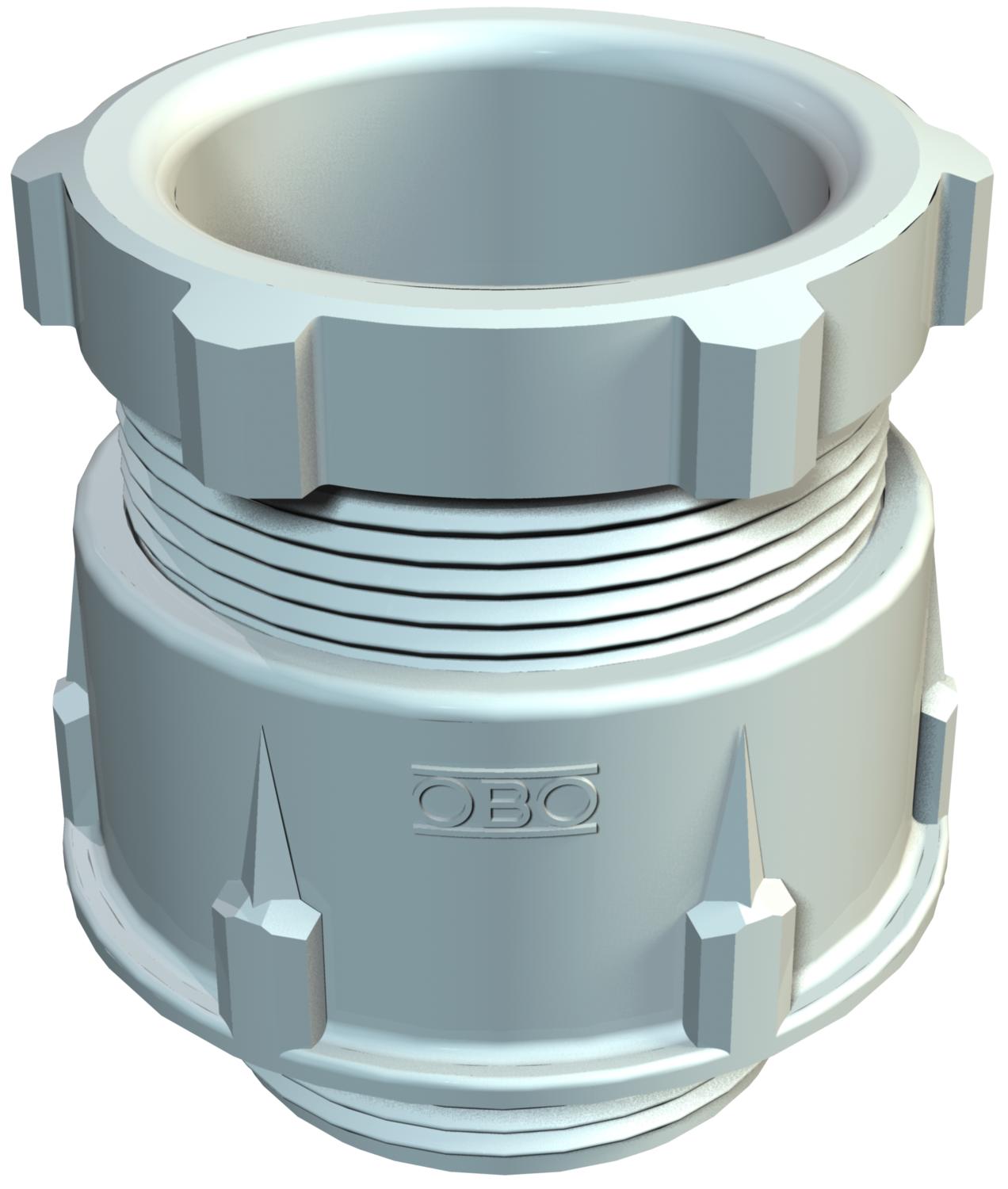

Cone cable gland, metric thread, light grey
Item no. 2035359 | EAN 4012195467410
- Product description
-
Product descriptionStandard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.
Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension M32 Dimension D1 25 mm Dimension D2 47,5 mm Dimension D3 30,3 mm Dimension D4 26 mm Dimension G M32x1,5 mm Dimension L max. 42 mm Dimension L1 11 mm Dimension L2 20,5 mm Dimension L3 8 mm Dimension L4 18 mm explosion-proof no Fibre-glass reinforced no For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 50,5 mm Impact-resistant yes Length 47,5 mm Material Polystyrene Nominal thread size 32 Protection rating IP65 Sealing area D, max. 25 mm Sealing area D, min. 18 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread M32 x 1,5 Thread length 11 mm Thread type Metric Type of seal Sealing ring Version for Straight WAF 1 42 mm WAF 2 40 mm Width 47,5 mm With locknut no - All types
- Downloads
-
Data sheet 106 M 32 PS / 2035359 , 0.24MB , pdfEU declaration of conformity 106 M 32 PS / 2035359 , 0.13MB , pdfREACH Declaration of conformity 106 M 32 PS / 2035359 , 0.12MB , pdfRoHS Declaration of conformity 106 M 32 PS / 2035359 , 0.12MB , pdf
