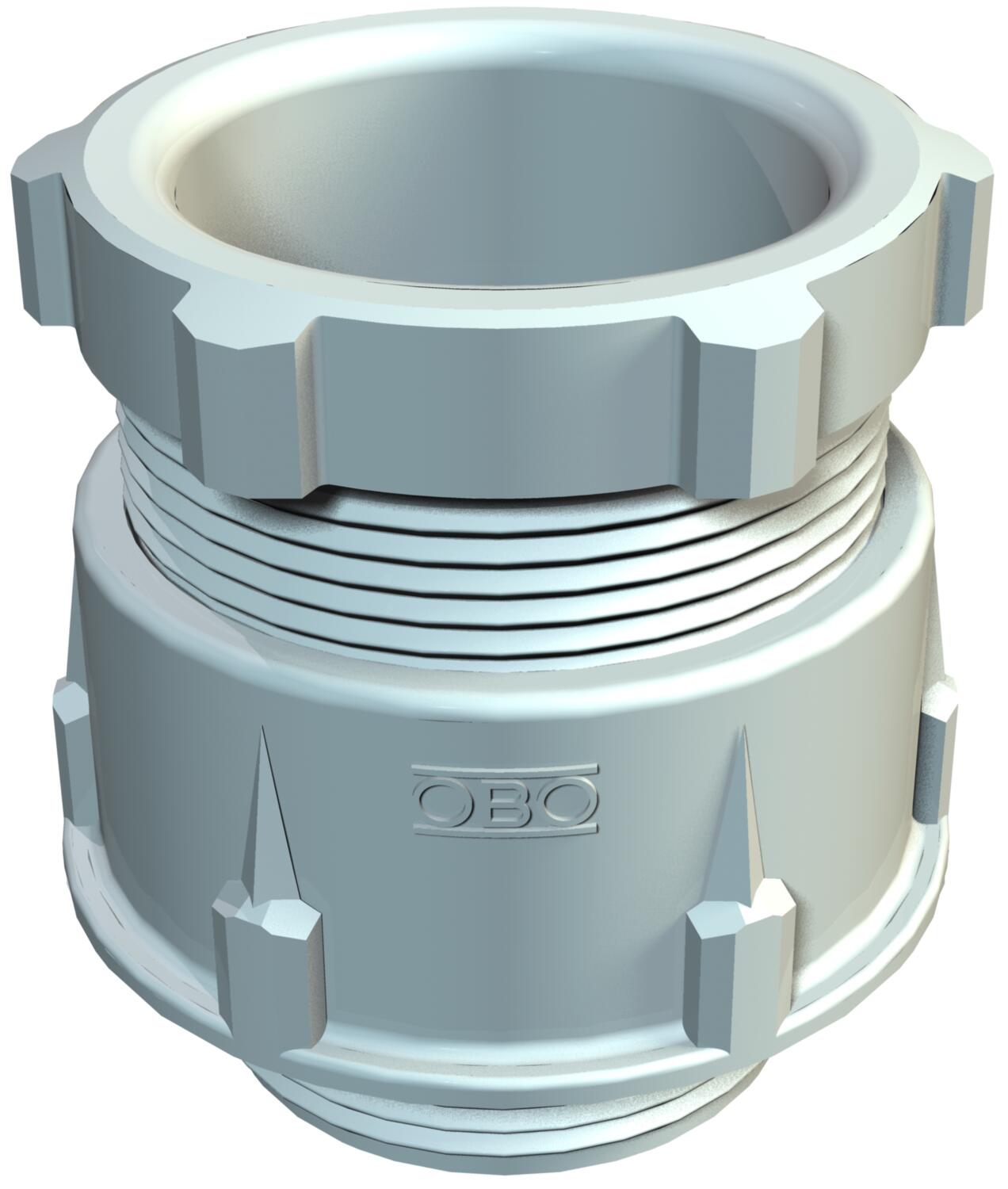

Cone cable gland, metric thread, light grey M25 x 1,5

Cone cable gland, metric thread, light grey

Item no. 2035340 | EAN 4012195465317

Item no. / Types

Thread

Product description

Product description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.

Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.

Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant

Technical data

Technical data

Bend protection	no
Colour	Light grey; RAL 7035
Dimension	M25
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Nominal thread size	25
Protection rating	IP65

Sealing area D, max.	14 mm
Sealing area D, min.	10 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	no
Thread	M25 x 1,5
Thread length	10 mm
Thread type	Metric
Type of seal	Sealing ring
Version for	Straight
WAF 1	27 mm
WAF 2	23 mm
With locknut	no

Dimensions

Dimension D1	14 mm
Dimension D2	30 mm
Dimension D3	15,8 mm
Dimension D4	16 mm
Dimension G	M25x1,5 mm
Dimension L max.	30 mm
Dimension L1	10 mm

Dimension L2	16,5 mm
Dimension L3	6 mm
Dimension L4	12 mm
Height	39 mm
Length	30 mm
Width	30 mm

All types

All types

Types	Thread	Item no.	Quantity	SSU
106 M12 PS	M12 x 1,5	2035316	piece	50 piece
106 M16 PS	M16 x 1,5	2035324	piece	50 piece
106 M 20 PS	M20 x 1,5	2035332	piece	50 piece
106 M 25 PS	M25 x 1,5	2035340	piece	50 piece
106 M 32 PS	M32 x 1,5	2035359	piece	10 piece
106 M 40 PS	M40 x 1,5	2035367	piece	10 piece
106 M 50 PS	M50 x 1,5	2035375	piece	5 piece
106 M 63 PS	M63 x 1,5	2035383	piece	5 piece
