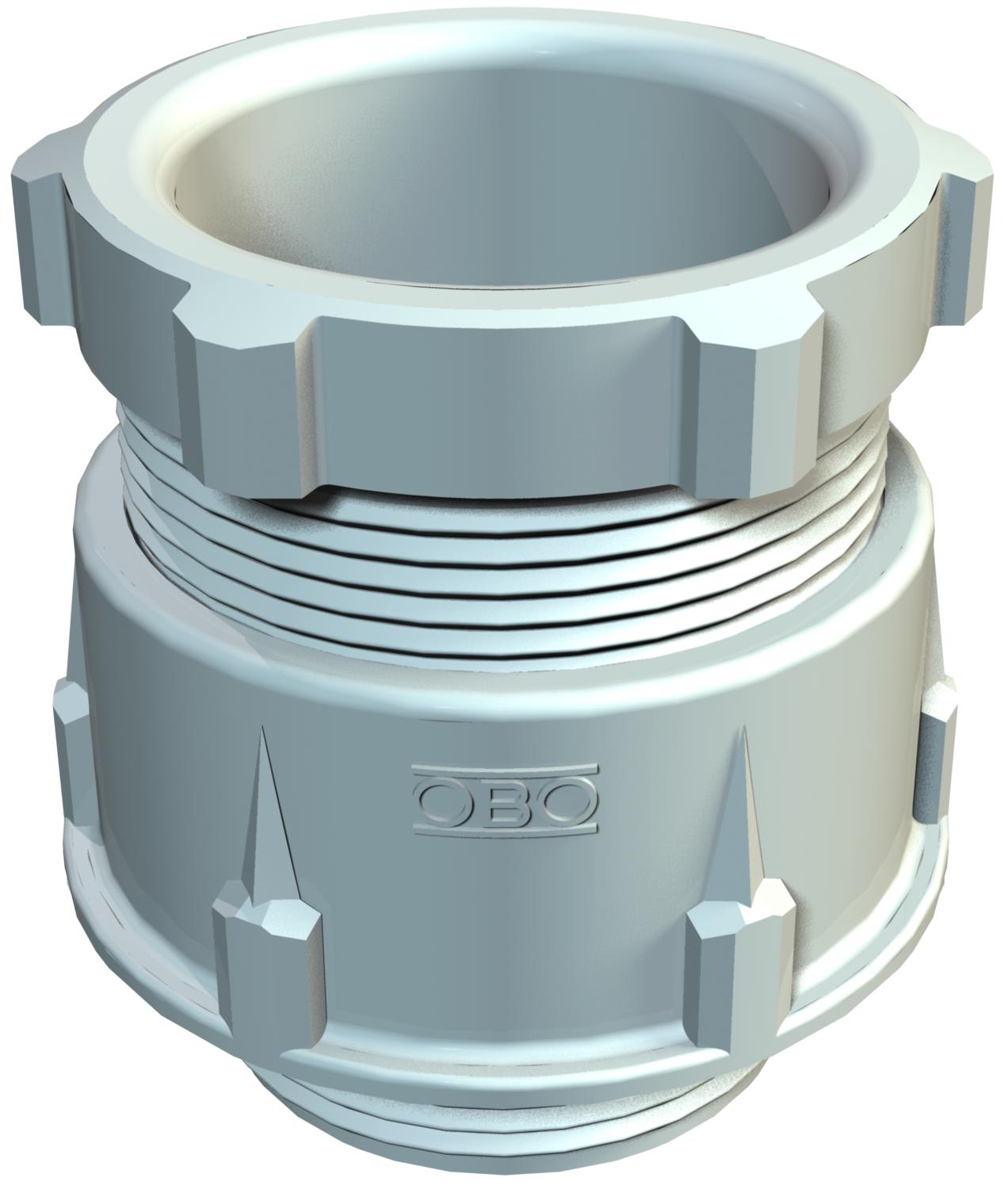

Cone cable gland, metric thread, light grey M20 x 1,5

Cone cable gland, metric thread, light grey

Item no. 2035332 | EAN 4012195465256

Item no. / Types

Thread

Product description

Product description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.

Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.

Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Shock-resistant

Technical data

Technical data

Bend protection	no
Colour	Light grey; RAL 7035
Dimension	M20
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Nominal thread size	20
Protection rating	IP65

Sealing area D, max.	13 mm
Sealing area D, min.	9 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	no
Thread	M20 x 1,5
Thread length	9 mm
Thread type	Metric
Type of seal	Sealing ring
Version for	Straight
WAF 1	24 mm
WAF 2	21 mm
With locknut	no

Dimensions

Dimension D1	13 mm
Dimension D2	27 mm
Dimension D3	13,4 mm
Dimension D4	13,5 mm
Dimension G	M20x1,5 mm
Dimension L max.	28 mm
Dimension L1	9 mm

Dimension L2	16 mm
Dimension L3	5 mm
Dimension L4	10,8 mm
Height	35 mm
Length	27 mm
Width	27 mm

All types

All types

Types	Thread	Item no.	Quantity	SSU
106 M12 PS	M12 x 1,5	2035316	piece	50 piece
106 M16 PS	M16 x 1,5	2035324	piece	50 piece
106 M 20 PS	M20 x 1,5	2035332	piece	50 piece
106 M 25 PS	M25 x 1,5	2035340	piece	50 piece
106 M 32 PS	M32 x 1,5	2035359	piece	10 piece
106 M 40 PS	M40 x 1,5	2035367	piece	10 piece
106 M 50 PS	M50 x 1,5	2035375	piece	5 piece
106 M 63 PS	M63 x 1,5	2035383	piece	5 piece
