Cone cable gland, metric thread, cutting ring, nickel-plated

Item no. 2083732 | EAN 4012195517993

Product description

Product description

Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.

Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.

With cutting ring.

* Prices according to DEL notation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread metric
Technical data

Technical data

Bend protection no

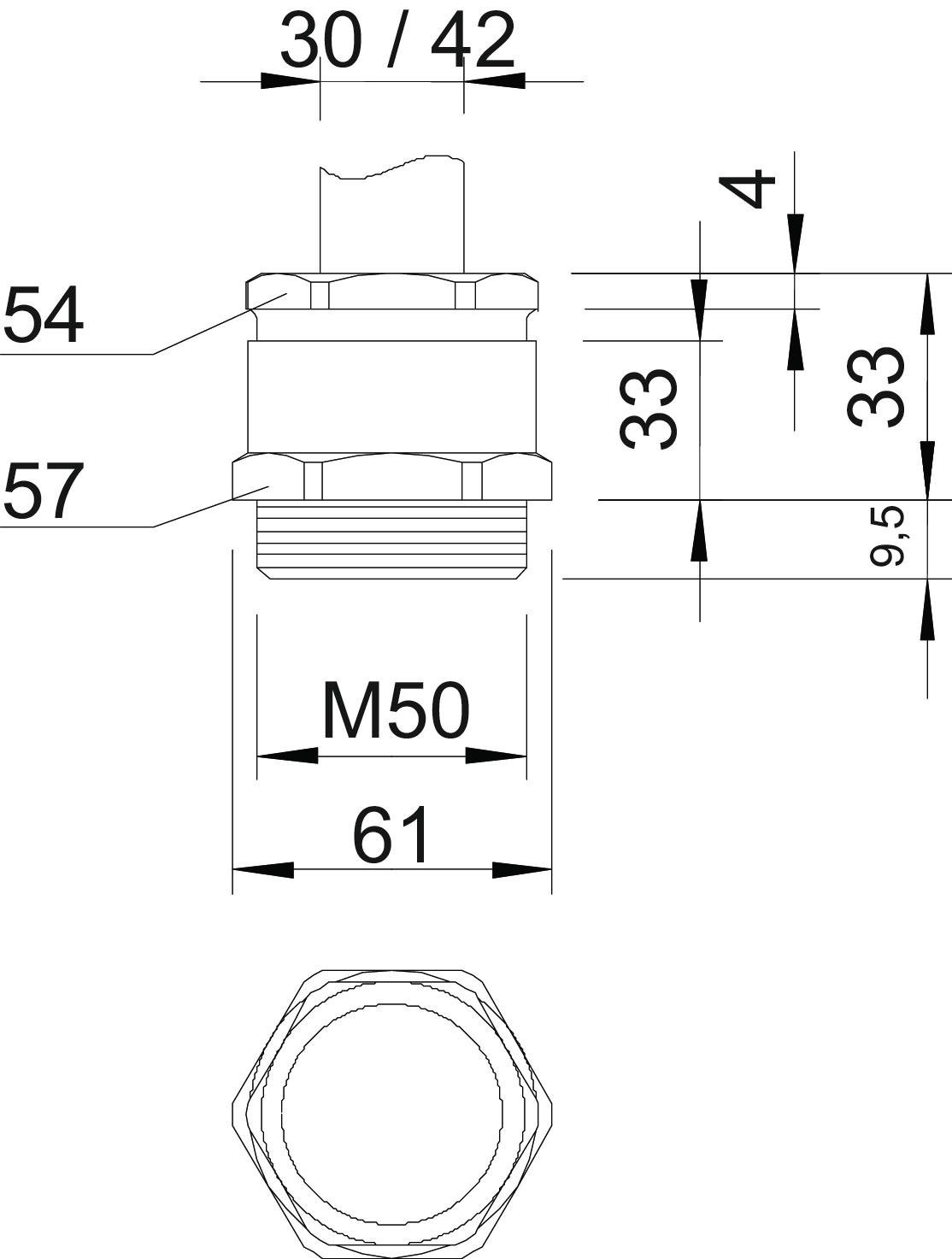

Dimension M50
Dimension E 61 mm
Dimension L 33 mm
Dimension L max. 33 mm
Dimension L1 9,5 mm
Dimension L2 33 mm
Dimension L3 4 mm
explosion-proof no
Fibre-glass reinforced no
Flat cable gland no
For Ex zone Without
Halogen-free no
Impact-resistant no
Material Brass
Protection rating IP65
Sealing area D, max. 42 mm
Sealing area D, min. 30 mm
Sealing insert, multiple no
Strain relief option no
Surface Nickel-plated
Thread M50 x 1,5
Thread length 9,5 mm
Thread type Metric
Type of seal Cuttable sealing ring
WAF 1 57 mm
WAF 2 54 mm
With locknut no
All types

All types

Types Thread Item no. Quantity SSU
162 MS M12 M12 x 1,5 2083706
50 piece
162 MS M16 M16 x 1,5 2083712
50 piece
162 MS M20 M20 x 1,5 2083716
25 piece
162 MS M25 M25 x 1,5 2083720
25 piece
162 MS M32 M32 x 1,5 2083724
10 piece
162 MS M40 M40 x 1,5 2083728
10 piece
162 MS M50 M50 x 1,5 2083732
5 piece
162 MS M63 M63 x 1,5 2083736
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Locknut, metric thread Locknut, metric thread 169 MS M50 2091674
50 piece
