Note: This article is discontinued.

Concealed accessory/connection box 48 | 60 | 20 mm | 8

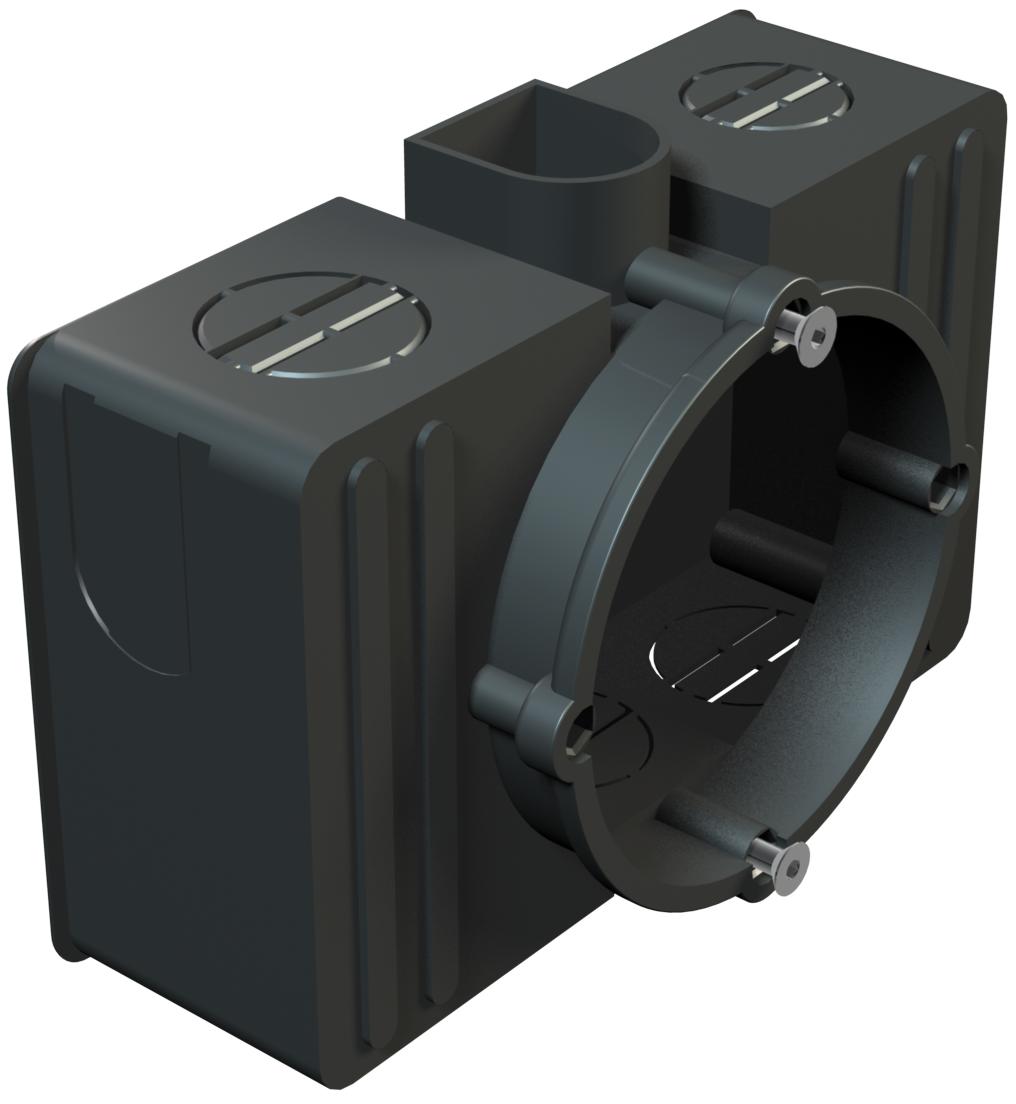

Concealed accessory/connection box

Item no. 2003023 | EAN 4012195003571

Item no. / Types	2003023 / UG 60 VK

Height	48 mm

Diameter	60 mm

for pipe diameter	20 mm

No. of entries	8

Product description

Product description

Device/connection socket with increased socket volume on both sides of the device installation opening to accept connection terminals. Torsion-resistant guaranteed standard combination spacing of 71 mm (to DIN 49 073-1) through snap–lock coupling. Break-out openings for cables and pipes of up to Ø 21 mm, low-lying plaster brackets,
device bolt spacing 60 mm, for screw fastening with 3.2 mm self-tapping screws,
with 4 screw bosses and 2 device screws, protection rating IP20.

Technical data

Technical data

Accessory screw clearance	60 mm
Airtight	no
Colour	Black
Cover	Without
Cover fastening	Not applicable
Device fixing	Screws ,
Diameter	60 mm
Diameter, interior	60 mm

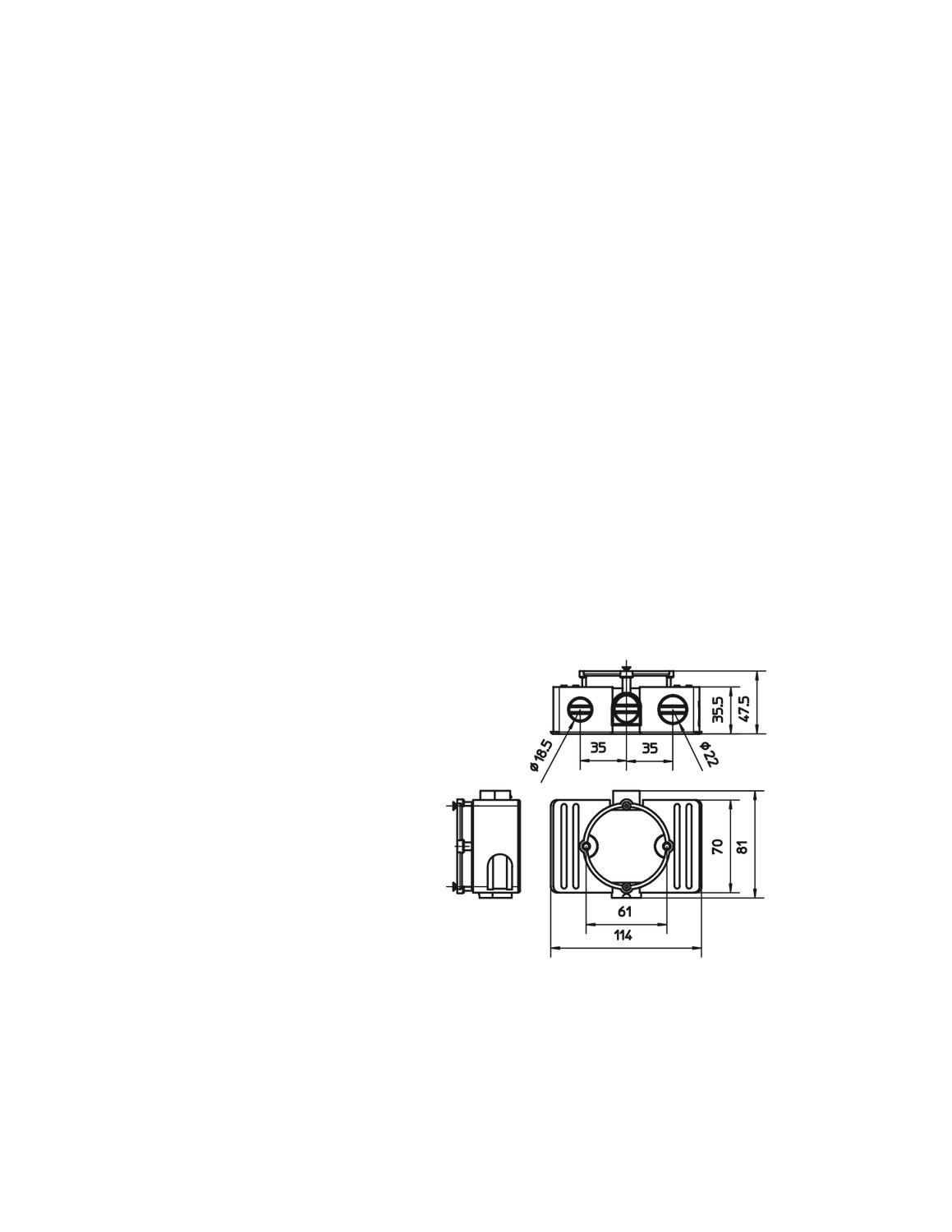

Dimension	70x110x48
Entries	8
Entry from rear	no
Equipment	Without
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Floor height, min.	50 mm
for pipe diameter	20 mm
Halogen-free	yes
Height	48 mm
Impact-resistant	yes

Length	110 mm
Maintain electrical functions	Without
Material	Polystyrene
No. of entries	8
Nominal cross-section, max.	2,5 mm²
Nominal cross-section, min.	1,5 mm²
Number of switch boxes	1
Protection rating	IP20
Rated voltage	400 V
Sealable	no
Shape	Rectangular
Support	Tunnel support
Type of housing penetration	Pre-marking
Type of insertion…	break-out openings for cables and pipes to Ø 21 mm
Width	70 mm
With bolts	yes
With nail strap	no
With screening	no
