Combined protection device 3in1 for CCTV camera systems

Item no. 5081072 | EAN 4012196676972

Item no. / Types	5081072 / PND-3in1-C-OS

Plug-in system	BNC

Product description

Product description

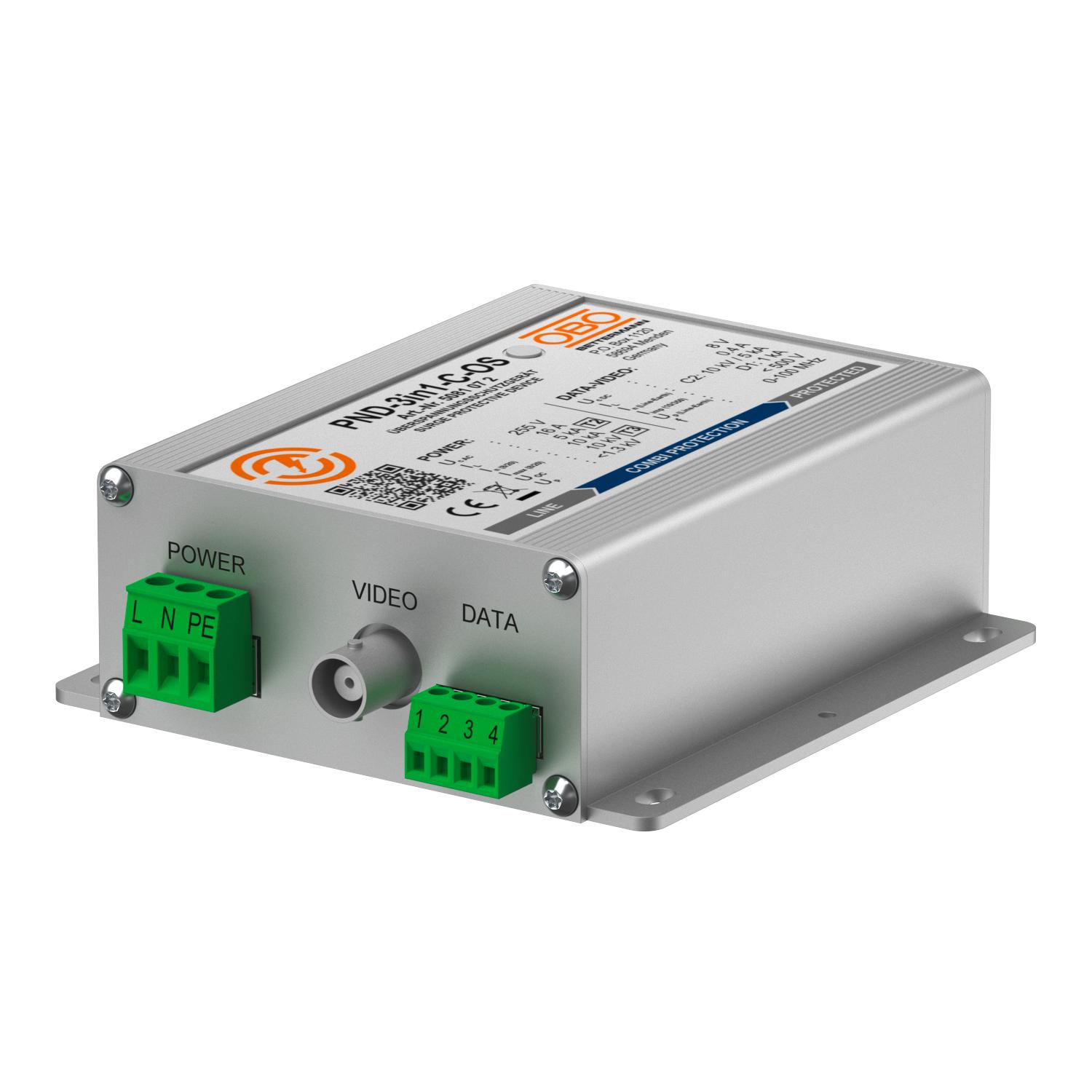

Combination protection device for coaxial TV/camera systems

• Protection of power and data interfaces in a single device

• In aluminium housing

• Simple mounting with adapter

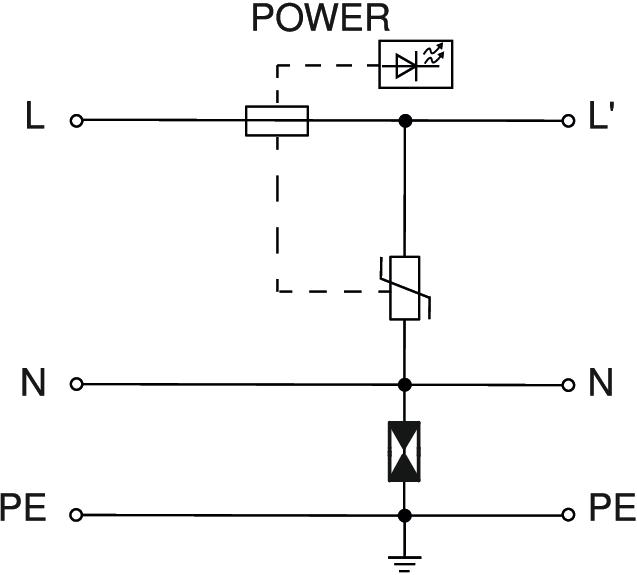

• Two-stage protection circuit

• Three-pole power connection for the power interface

• With LED operation display (OS)

• Incl. DIN rail fastening set

Application: Protection of CCTV, video signals, cameras and/or TV systems

Technical data

Technical data

Channel performance Ansi/EA	CAT 5e
Channel performance ISO/IEC	Class E
Dimension	230V
Earthing via:	Connection cable / DIN rail

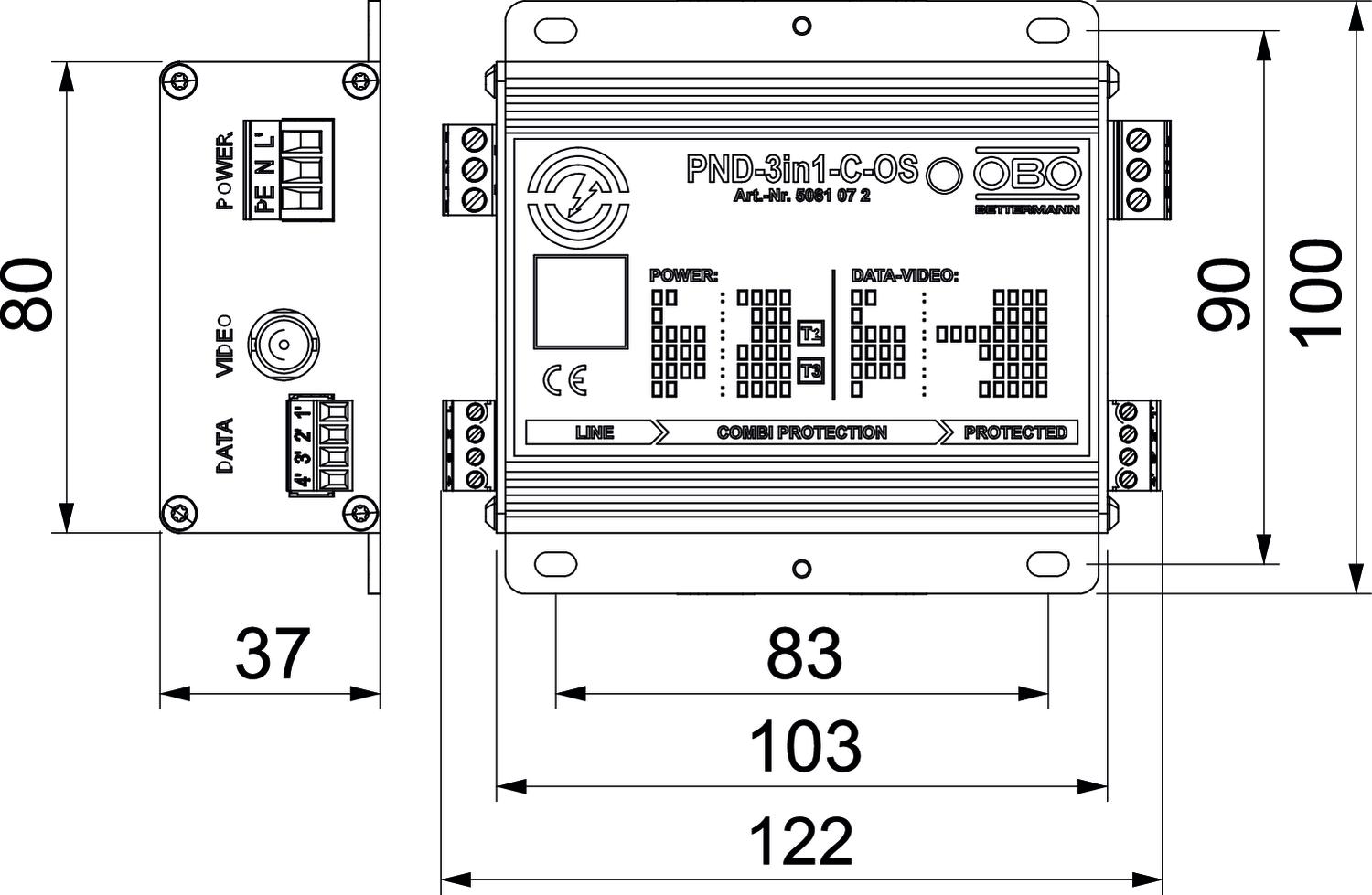

Height	37,1 mm
Length	122,5 mm
Lightning protection zone LPZ	1→3
Maximum continuous voltage (L-N)	255 V
Maximum discharge current (8/20 μs)	10 kA
Nominal discharge current (8/20 µs)	5 kA

Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-20 °C
Plug-in system	BNC
Protection level	<1,3 kV
Protection rating	IP20
Rated current	16 A
SPD to EN 61643-11	Type 2+3
SPD to IEC 61643-1	Class II+III
Width	100 mm
