Product description

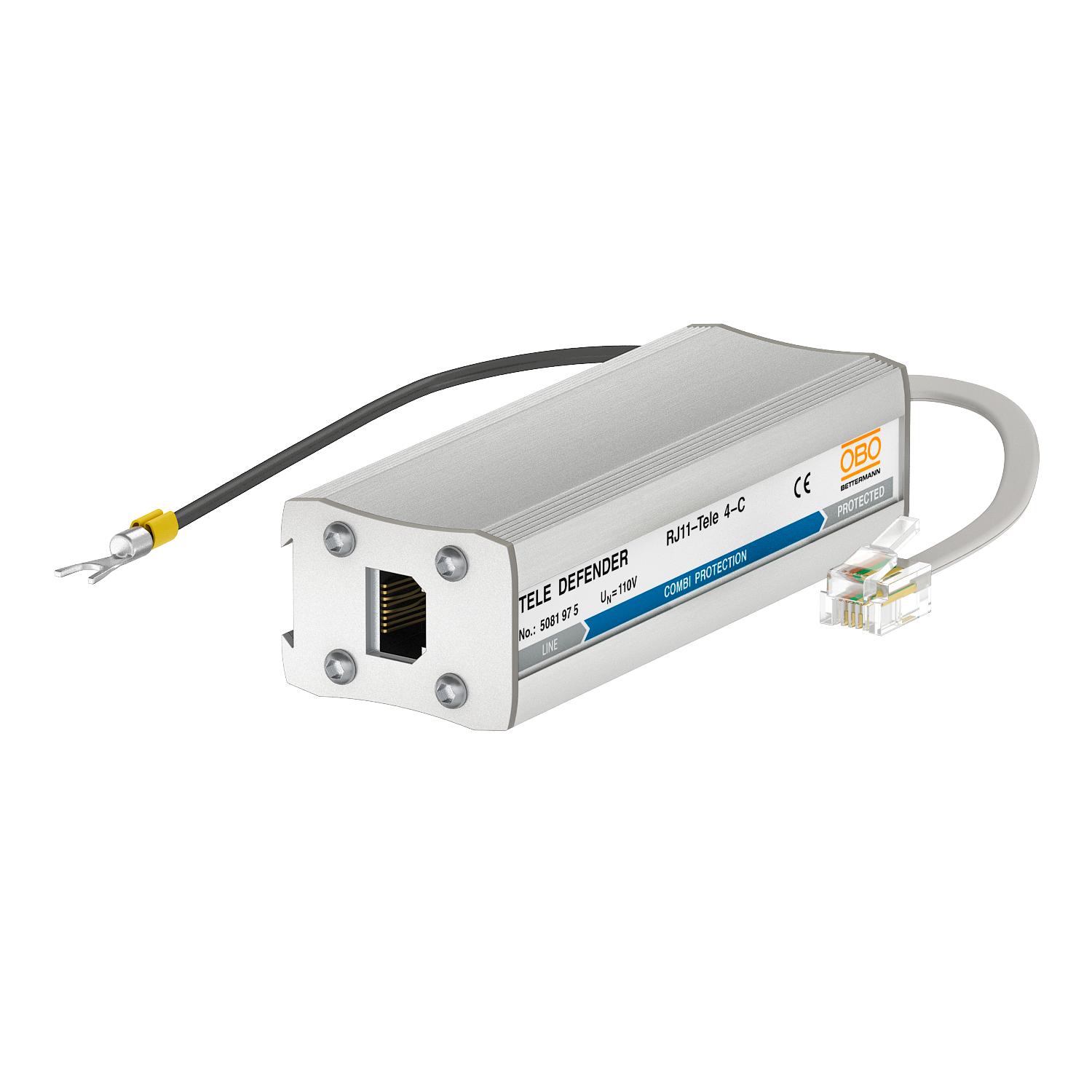

Data line protection device for analogue telecommunications systems
• In aluminium housing
• With 2-stage protection circuit
• Simple mounting
• Incl. 150 mm connection cable with RJ11 and/or RJ45 connectors
• Optimised bandwidth for TC systems
• DIN rail mounting with DLS-BS accessories (5082 38 2)
Application: For analogue telecommunication systems
• In aluminium housing
• Simple mounting on hat rail or on terminal
• Incl. 150 mm connection cable with RJ411 connectors
• Optimised bandwidth for telecommunications systems
- Technical data
-

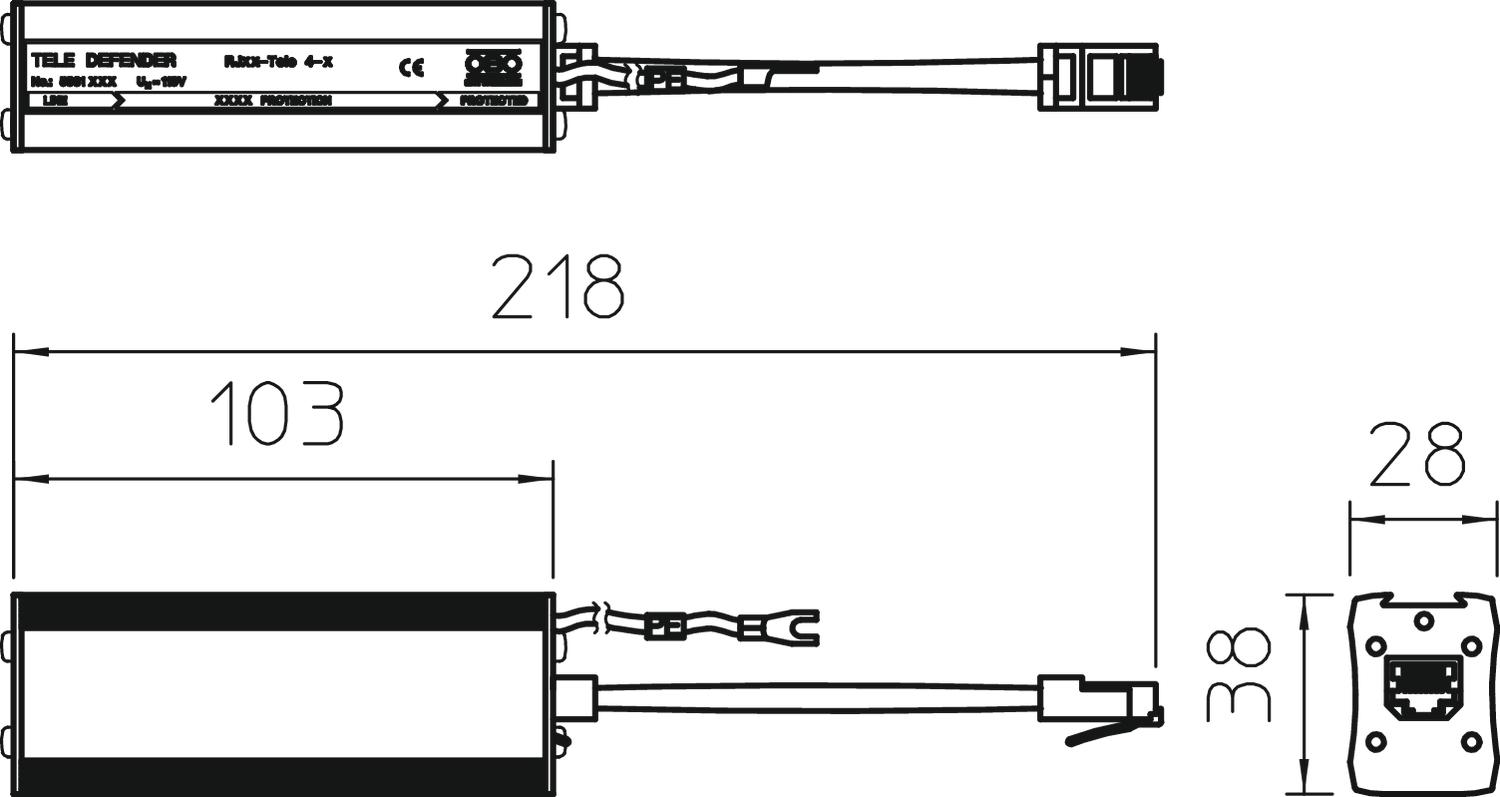

Technical data

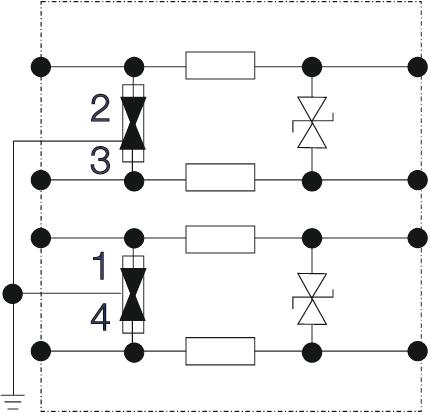

Cable type for surge protection devices Telecommunications line Capacity (wire-earth) <20 pF Capacity (wire-wire) <500 pF Cut-off frequency 12 MHz Dimension 170V Earthing via: Connection cable Impulse durability wire-earth C2: 2 kV / 1 kA (8/20) Impulse durability wire-wire C1: 1 kV / 0,5 kA (8/20) Insertion loss ≤3 dB Insulation resistance > 34 MΩ Kategorie Type 1+2+3 / D1+C2+C1 Lightning protection zone LPZ 0→3 Maximum continuous voltage AC 120 Maximum continuous voltage DC 170 Nominal load current AC 0,2 Nominal load current DC 0,3 A Number of poles 4 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system RJ11 Protection level wire-earth <600 V Protection level wire-wire <300 V Protection level, wire-earth at 1 kV/µs (C3) <245 Protection rating IP40 Series resistance per wire 8,2 Ω ± 10 % Signalling on device Without SPD to IEC 61643-21 Class I+II+III / D1+C2+C1 Testing standard IEC 61643-21 Total discharge current (10/350) 1,5 Total discharge current (8/20) 4 kA Version for Combi protection, 4 wires - All types
-
All types
