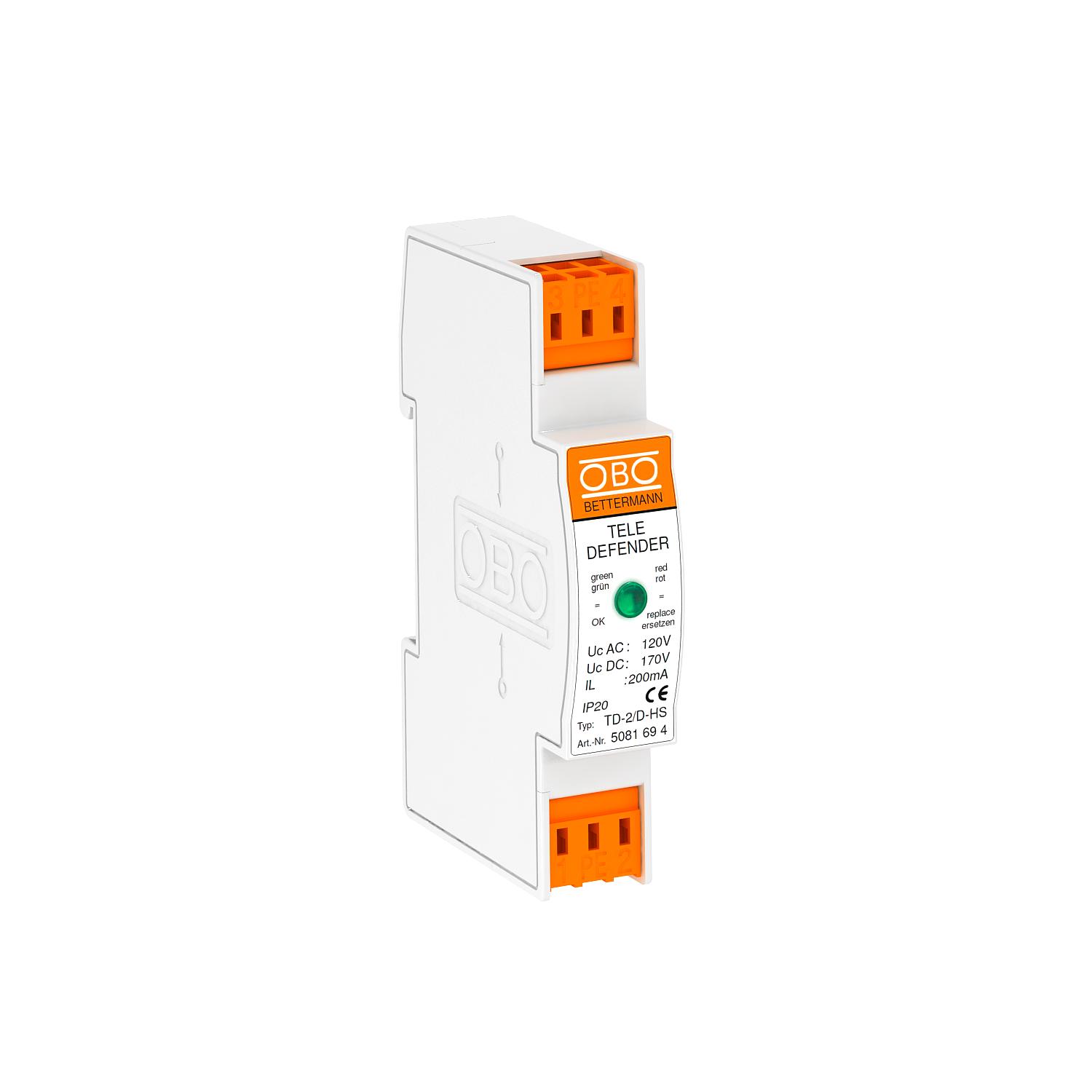

Product descriptionData cable protection devices for telecommunication systems
• Low protection level at high current load
• Screwless terminals or connectable
• Bandwidth-optimised for secure transmission
• Quick mounting onto DIN rail for a telephone line
• Visual function display
Application: DSL systems, ISDN or analogue telecommunication
- Technical data
-
Technical data
Arrestor monitoring no Cable type for surge protection devices Telecommunications line Capacity (wire-earth) <50 pF Capacity (wire-wire) <50 pF Colour White Connection cross-section, flexible, max. 2,5 mm² Connection cross-section, flexible, min. 0,14 mm² Connection cross-section, multi-wire, max. 2,5 mm² Connection cross-section, multi-wire, min. 0,14 mm² Connection cross-section, rigid, max. 2,5 mm² Connection cross-section, rigid, min. 0,14 mm² Cut-off frequency 75 MHz Dimension 170V Division unit TE (17.5 mm) 1 Earthing via: Connection cable Explosion-tested version no Impulse durability wire-earth C2: 18 kV / 9 kA (8/20µs) Impulse durability wire-wire C2: 18 kV / 9 kA (8/20µs) Insertion loss ≤3 dB Insulation resistance >1 MΩ Kategorie Type 1+2+3 / D1+C2+C1 Lightning impulse current 2,5 kA Lightning protection zone LPZ 0→3 Material Plastic Maximum continuous voltage AC 120 V Maximum continuous voltage DC 170 V Nominal load current AC 0,14 A Nominal load current DC 0,2 A Number of poles 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system Terminal Protection level wire-earth <650 V Protection level wire-wire <300 V Protection rating IP20 Screening Direct Series resistance per wire 9 Ω ± 10 % Shielding connection available no Signalling on device Visual SPD to IEC 61643-21 Class I+II+III / D1+C2+C1 Telecommunications contact no Testing standard IEC 61643-21 Total discharge current (10/350) D1: 5 kA Total discharge current (8/20) 10 kA - All types
- Downloads
-
Data sheet TD-2/D-HS / 5081694 , 0.31MB , pdfEU declaration of conformity TD-2/D-HS / 5081694 , 0.11MB , pdfREACH Declaration of conformity TD-2/D-HS / 5081694 , 0.12MB , pdfRoHS Declaration of conformity TD-2/D-HS / 5081694 , 0.12MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdf
