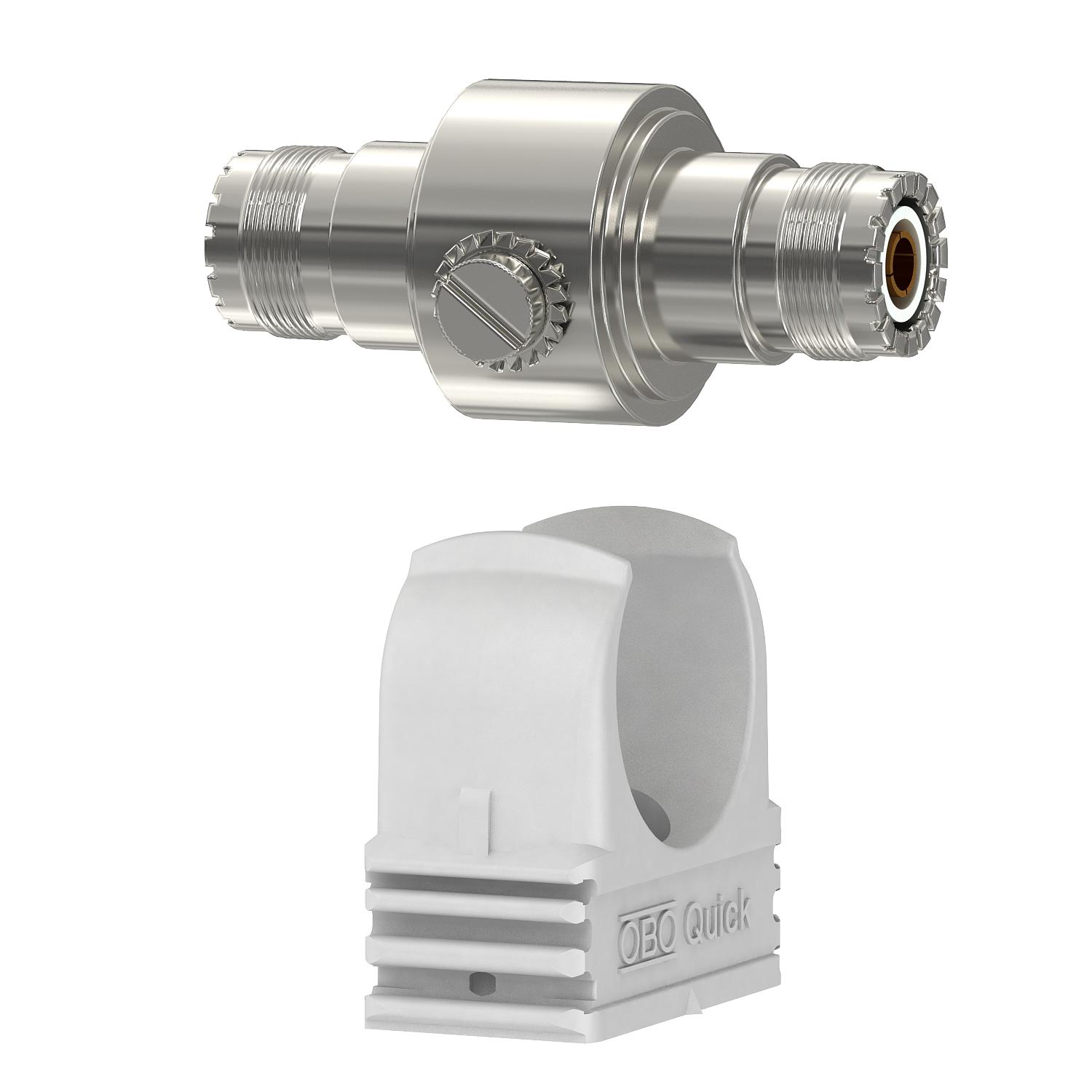

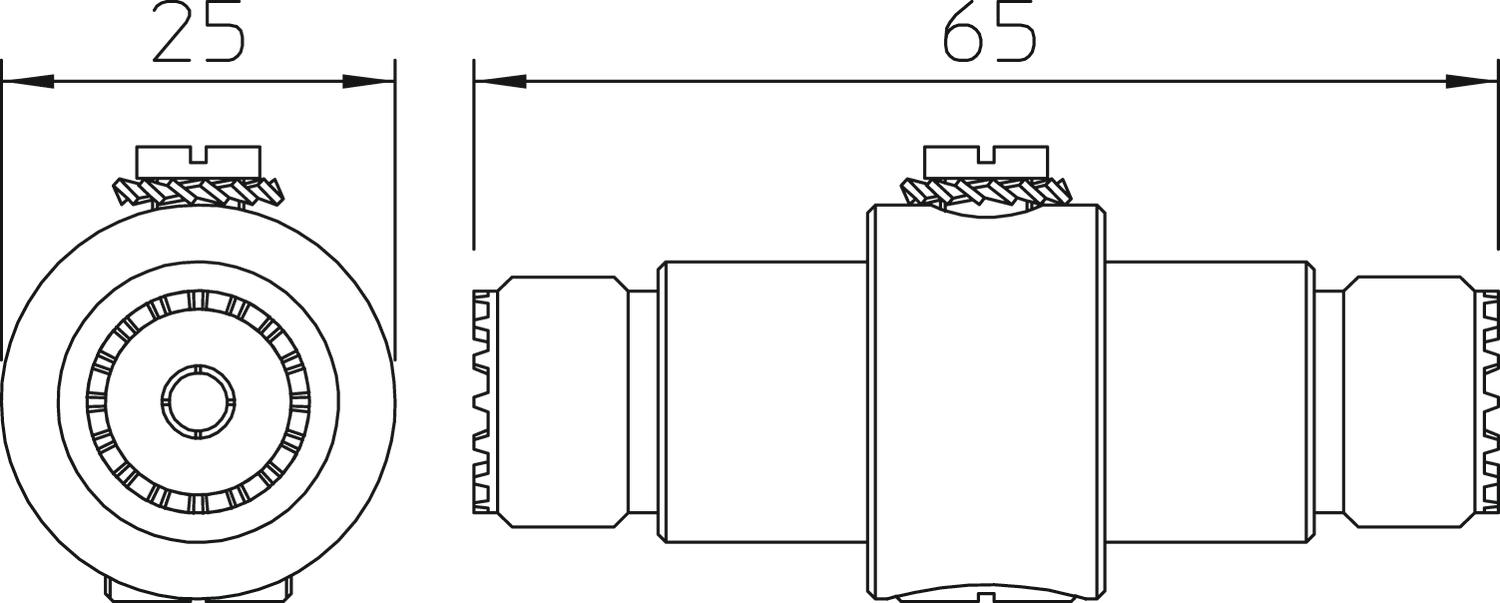

Coaxial protection devices for S-UHF connection: female/female 1 | 130 | 185 | UHF

Coaxial protection devices for S-UHF connection: female/female

Item no. 5093015 | EAN 4012195390671

Item no. / Types

Number of poles	1

Maximum continuous voltage AC	130 V

Maximum continuous voltage DC	185 V

Plug-in system	UHF

Product description

Product description

Coaxial data cable protection devices

• Basic protection

• High pulsed current carrying capacity 2 x 2.5 kA (10/350 µs)

• Simple installation (adapter plug), m = male/f = female connector

• Various plug combinations

• With UHF connector

• Optimised transmission behaviour

• Including OBO M25 Quick clip for simple installation

Technical data

Technical data

Arrestor monitoring	no
Cable type for surge protection devices	Data cable COAX
Capacity (wire-earth)	<20 pF
Capacity (wire-wire)	<10 pF
Cut-off frequency	1300 MHz
Dimension	130V
Explosion-tested version	no
Impulse durability wire-earth	C2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wire	C2: 10 kV / 5 kA (8/20µs)
Insertion loss	≤0,2 dB
Insulation resistance	>1 GΩ
Kategorie	Type 1+2 / D1+C2
Lightning impulse current	2,5 kA
Lightning protection zone LPZ	0→2
Maximum continuous voltage AC	130 V
Maximum continuous voltage DC	185 V
Nominal load current AC	7 A
Nominal load current DC	10 A

Number of poles	1
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	UHF
Protection level	<800 V
Protection level wire-earth	<800 V
Protection level wire-wire	<800 V
Protection rating	IP40
Return loss	≥14 dB
Screening	Direct
Shielding connection available	yes
Signalling on device	None
SPD to IEC 61643-21	Class I+II / D1+C2
Telecommunications contact	no
Testing standard	IEC 61643-21
Total discharge current (10/350)	5 kA
Total discharge current (8/20)	10 kA
Wave resistance	50 Ω
