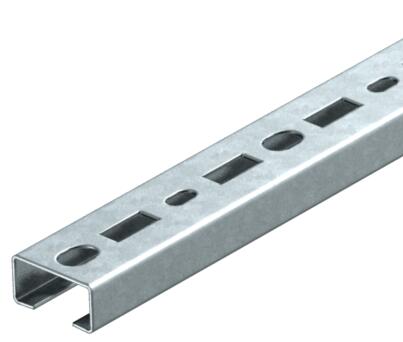

CML3518 profile rail, slot 17 mm, FS, perforated

Item no. 1104500 | EAN 4012195038771

Item no. / Types

Length

Width	35 mm

Height	18 mm

Material thickness	1.25 mm

Material	Steel

Surface	Strip galvanized

Product description

Product description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.

Technical data

Technical data

Breakable	no
Bundle	20 m
CO₂ Footprint (GWP) Cradle-to-Gate	1,82 kg CO₂e / 1 Meter

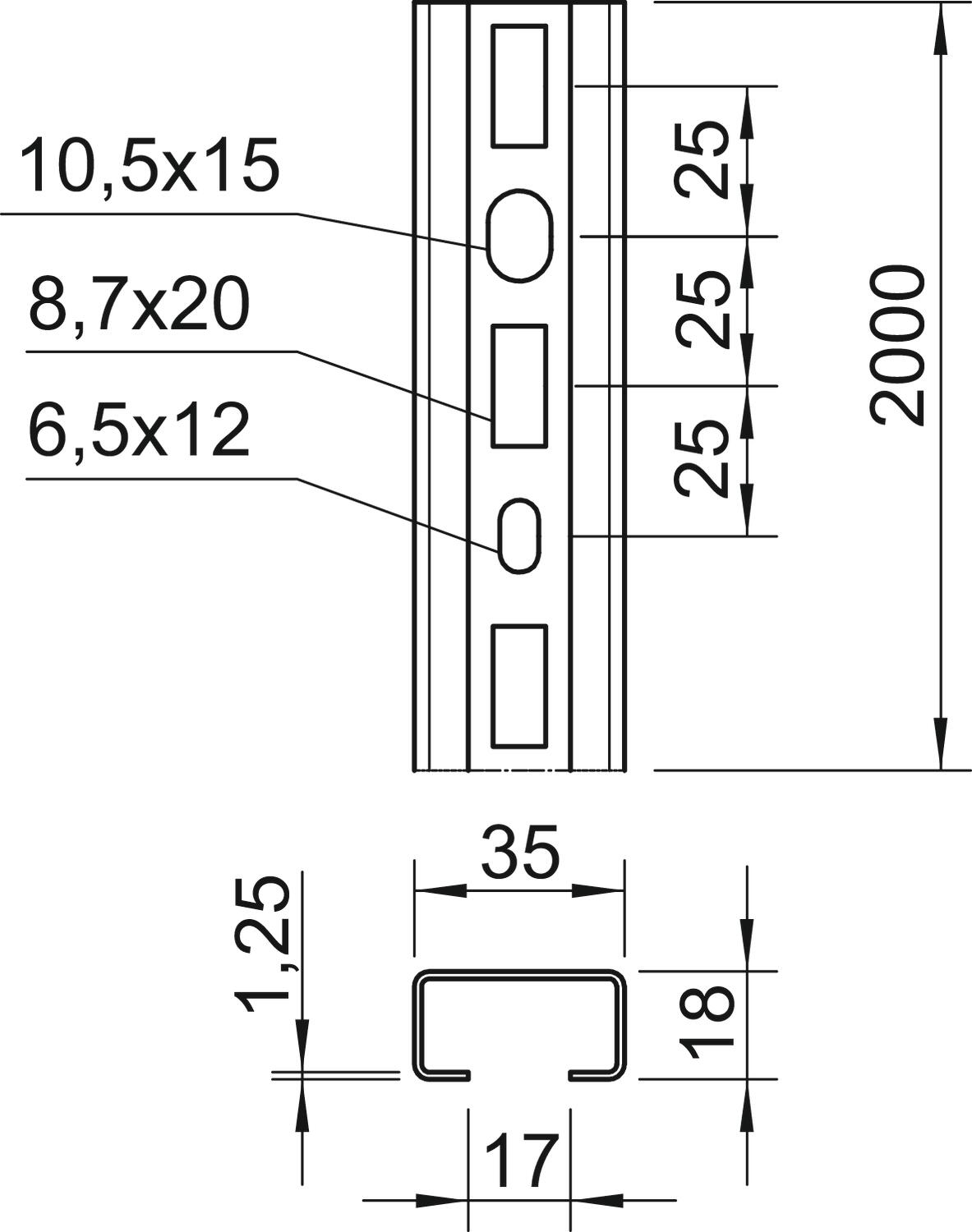

Dimension	2000x35x18
Dimension L	2000 mm
Drill hole spacing, centre	25 mm
Height	18 mm
Length	2000 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	1,25 mm
Profile shape	C profile

Slot width	17 mm
Static value A	0,88 cm²
Static value ly	0,41 cm
Static value lz	1,81 cm
Static value Wy	0,41 cm²
Static value Wz	1,03 cm²
Surface	Strip galvanized
Type of perforation	Perforated back
Version for	Single profile
Width	35 mm
With perforation	yes
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Material	Surface	Item no.	Quantity	SSU
CML3518P0150FS	150 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104241	piece	25 piece
CML3518P0200FS	200 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104268	piece	25 piece
CML3518P0300FS	300 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104284	piece	25 piece
CML3518P0400FS	400 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104292	piece	10 piece
CML3518P0500FS	500 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104306	piece	10 piece
CML3518P0600FS	600 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104310	piece	10 piece
CML3518P0700FS	700 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104315	piece	10 piece
CML3518P0800FS	800 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104320	piece	10 piece
CML3518P0900FS	900 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104325	piece	10 piece
CML3518P1000FS	1000 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104497	m	1 m
CML3518P2000FS	2000 mm	35 mm	18 mm	1.25 mm	Steel	Strip galvanized	1104500	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	ACMSN M8 ZL	1147060	piece	100 piece
Hammer-head bolt ZL	ACMHB M8x30 ZL	1148060	piece	50 piece
Clamp clip, single, plastic pressure trough, FT	2056 12 FT	1160125	piece	100 piece
