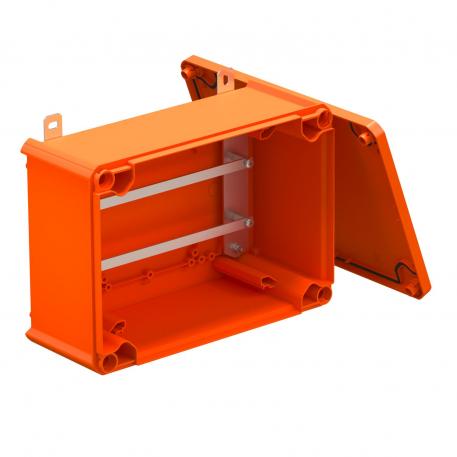

Closed FireBox T350, empty 267x182x110 | | IP66 | | Pastel orange; RAL 2003

Closed FireBox T350, empty

Item no. 7205786 | EAN 4012196820269

Item no. / Types

Clear internal dimensions

Protection rating	IP66

Colour	Pastel orange; RAL 2003

Product description

Product description

Unequipped, closed connection or junction box for free termination with ceramic terminals and cable glands. Dimension A states the available support rail length for the wiring terminals. Sufficiently large wiring compartment through diagonally arranged support rail. Fastening on easily accessible external flaps made of stainless steel. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90.

Technical data

Technical data

Colour	Pastel orange; RAL 2003
Cover	Not transparent
Cover fastening	Screwed
Dimension	285x201x120
Entry from rear	no
Equipment	Support rail
Halogen-free	yes
Maintain electrical functions	E 90

Material	Polypropylene
Nominal cross-section, max.	16 mm²
Nominal cross-section, min.	0,5 mm²
Protection rating	IP66
Sealable	no
with lid	yes
With screening	no

Dimensions

Clear internal dimensions	267x182x110 mm
Dimension A	386 mm
Dimension B	201 mm
Dimension H	120 mm
Dimension L	285 mm

Dimension L1	205 mm
Dimension L2	230 mm
Height	120 mm
Length	285 mm
Width	201 mm

All types

All types

Types	Clear internal dimensions	Protection rating	Colour	Item no.	Quantity	SSU
T100E 0VA	136x102x57 mm	IP66	Pastel orange; RAL 2003	7205780	piece	1 piece
T160E 0VA	176x135x67 mm	IP66	Pastel orange; RAL 2003	7205782	piece	1 piece
T250E 0VA	225x173x86 mm	IP66	Pastel orange; RAL 2003	7205784	piece	1 piece
T350E 0VA	267x182x110 mm	IP66	Pastel orange; RAL 2003	7205786	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Ceramic terminal	TK 04	7205700	piece	5 piece
Ceramic terminal, single	TK 06	7205702	piece	5 piece
Ceramic terminal, double	TK 06-2	7205703	piece	5 piece
Ceramic terminal, single	TK 10	7205704	piece	5 piece
Ceramic terminal, double	TK 10-2	7205705	piece	5 piece
Ceramic terminal, single	TK 16	7205706	piece	5 piece
Ceramic terminal, double	TK 16-2	7205707	piece	5 piece
Fuse holder for FireBox T series	TE-FH 520	7205570	piece	1 piece
Cable gland with locknut as a set	V-TEC VM16+ OR	7205657	piece	10 piece
Cable gland with locknut as a set	V-TEC VM20+ OR	7205660	piece	10 piece
Cable gland with locknut as a set	V-TEC VM25+ OR	7205663	piece	10 piece
Cable gland with locknut as a set	V-TEC VM32+ OR	7205666	piece	10 piece
Cable gland with locknut as a set	V-TEC VM40+ OR	7205669	piece	10 piece
Identification plate for maintenance of electrical function	KS-E DE	7205423	piece	10 piece
