Click-snap clip

Item no. 2148528 | EAN 4012195863830

Item no. / Types

Drill hole depth	40 mm

Breaking load for concrete B25

Clamping range D, min.

Clamping range D, max.

Product description

Product description

With moulded-on push-fit plug for rapid mounting in concrete walls and masonry.
Push plug into hole until the clip makes contact with the surface. When the pipe is pressed into the clip, the arms of the clip grip it.

Technical data

Technical data

Breaking load for concrete B25	500 N
Clamping range D, max.	21,5 mm
Clamping range D, min.	16 mm
Colour	Light grey; RAL 7035

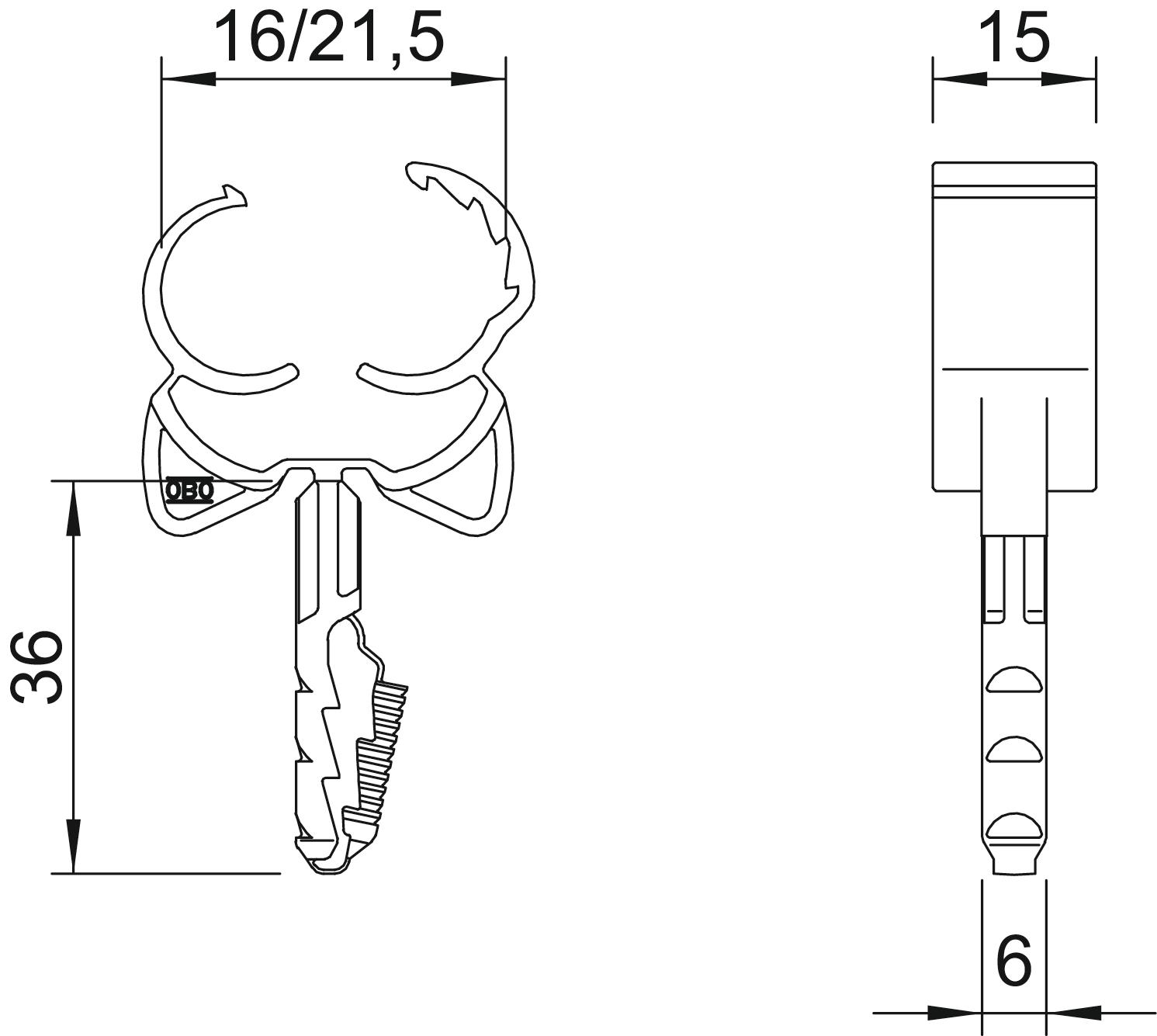

Dimension	16-21,5mm
Drill hole depth	40 mm

Drill hole diameter, min.	6 mm
Fastening type	Plug fastening
Halogen-free	yes
Material	Polyamide
Version for	Closed

All types

All types

Types	Drill hole depth	Breaking load for concrete B25	Clamping range D, min.	Clamping range D, max.	Item no.	Quantity	SSU
1976 12-15	40 mm	190 N	12 mm	15.5 mm	2148501	piece	100 piece
1976 16-21	40 mm	500 N	16 mm	21.5 mm	2148528	piece	100 piece
1976 22-28	40 mm	500 N	22.5 mm	28.5 mm	2148536	piece	100 piece
