Clamping piece LKS 40 FS

Item no. 6221076 | EAN 4012196164530

Item no. / Types	6221076 / LKS 40 FS

Height	45 mm

Material	Steel

Surface	Strip galvanized

Product description

Product description

Clamping piece for fastening cable ladders of side height 45 and 60 mm to wall or support brackets.

Technical data

Technical data

Dimension	40x22
Height	45 mm

Material	Steel
Surface	Strip galvanized

All types

All types

Types	Height	Material	Surface	Item no.	Quantity	SSU
LKS 40 FS	45 mm	Steel	Strip galvanized	6221076	piece	10 piece

Downloads

Data sheet LKS 40 FS / 6221076 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LKS 40 FS / 6221076 , 0.10MB , pdf

UK Declaration of Conformity LKS 40 FS / 6221076 , 0.09MB , pdf

Download

REACH Declaration of conformity LKS 40 FS / 6221076 , 0.12MB , pdf

Download

RoHS Declaration of conformity LKS 40 FS / 6221076 , 0.13MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions Weitspannkabelleitern , 11.33MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

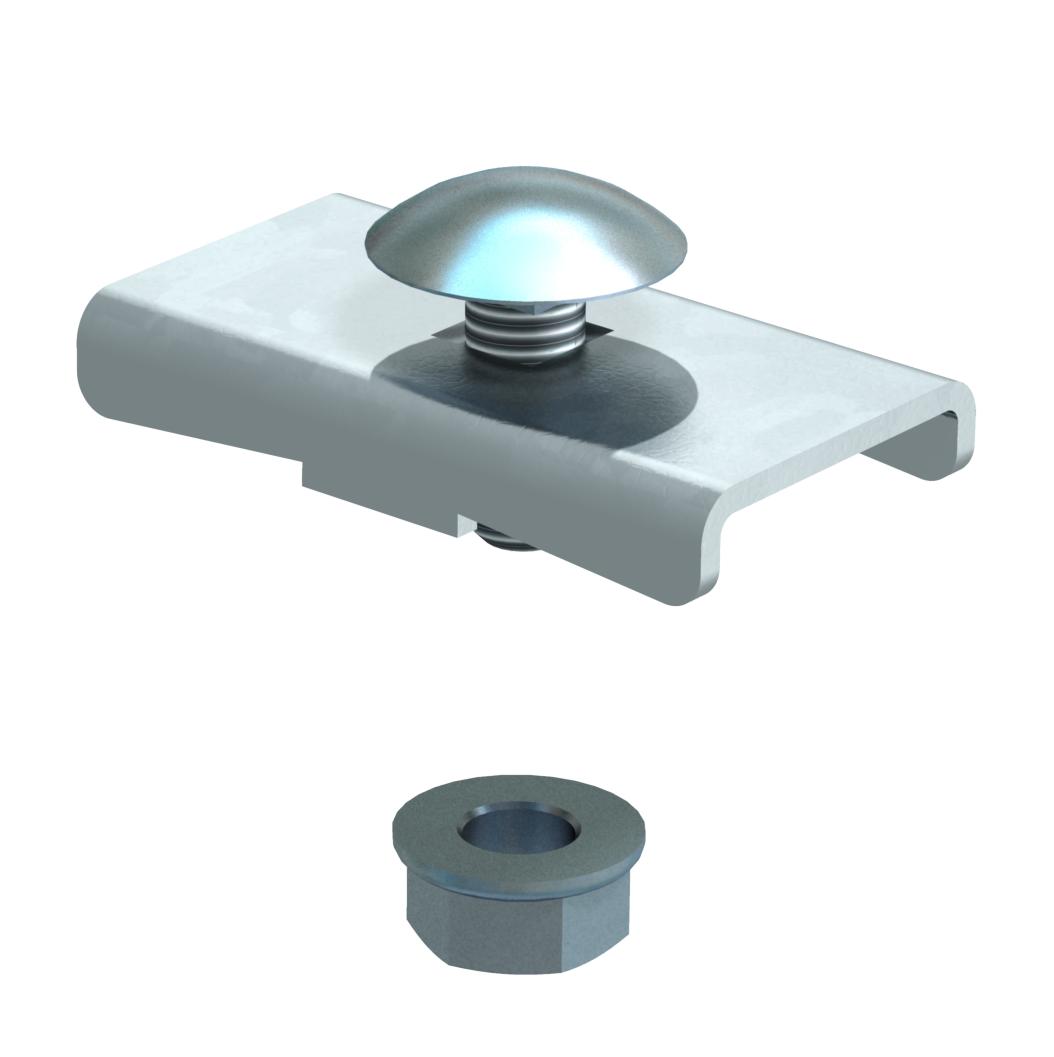

Product graphic LKS 40 FS / 6221076, 32.93 kB, jpg

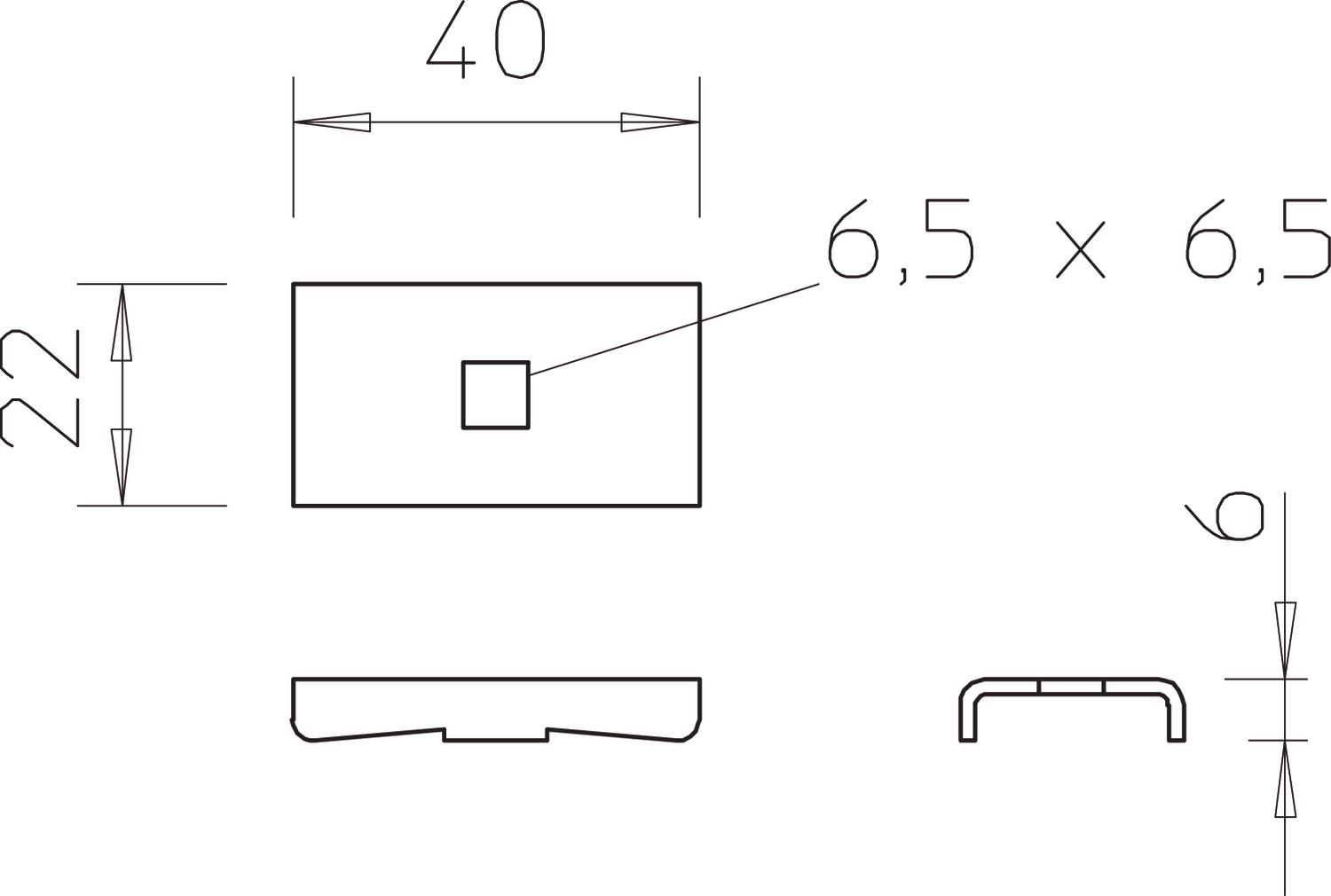

Scale drawing LKS 40 FS / 6221076, 40.78 kB, jpg

LKS 40 FS / 6221076

6221076_KSTP1.stp, 89.53 kB
