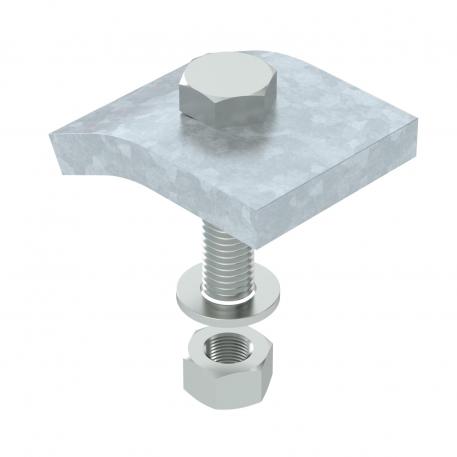

Clamping angle KWS FT 10 | 5.7
morepic-1 morepic-2 video-1

Clamping angle KWS FT

Item no. 6355226 | EAN 4012196194834

5.7 kN
Product description
Product description

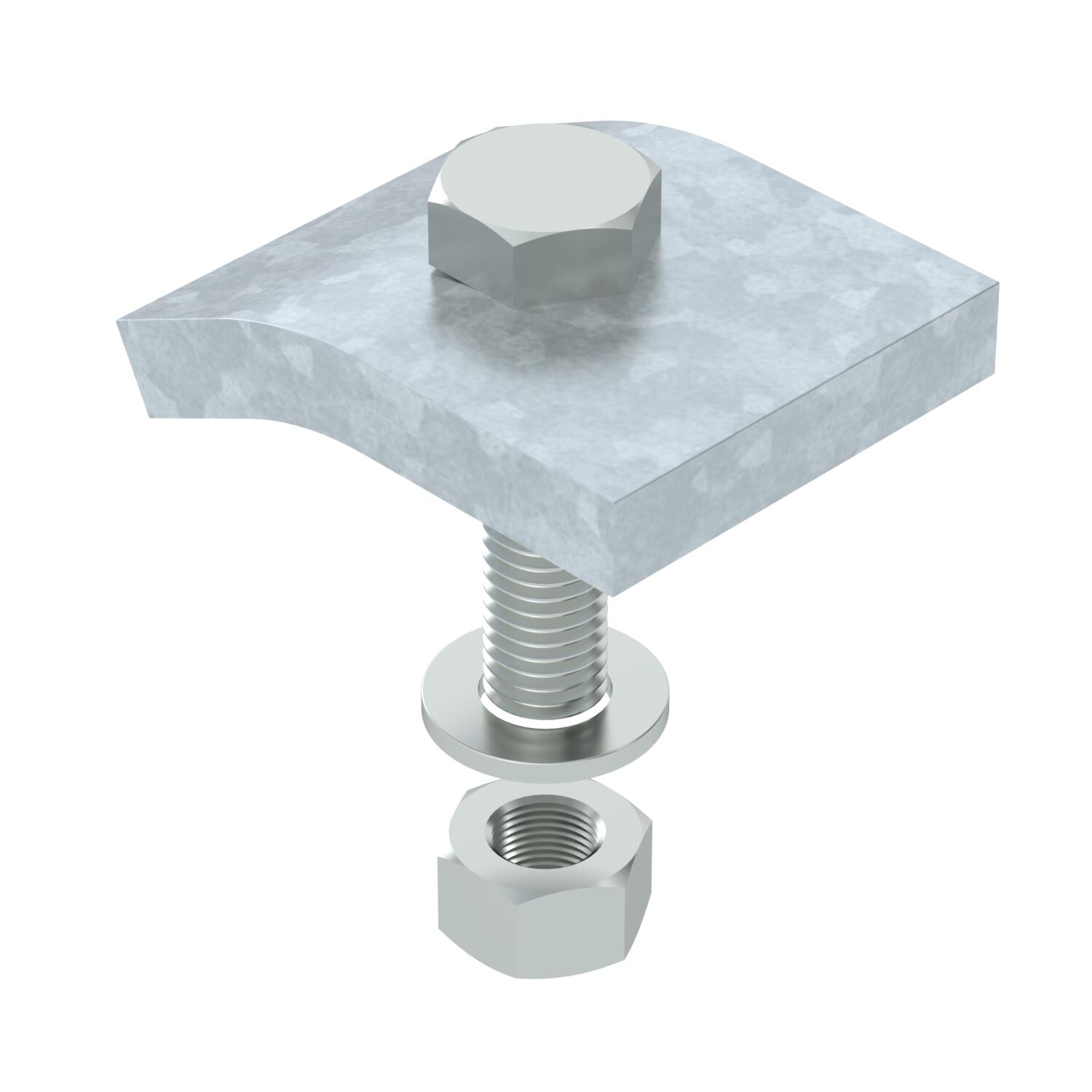

Clamping angle, with hexagonal bolt, type KWS, for direct fixing of constructions to steel girder flanges.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bolt M12 x 50
Colour zinc

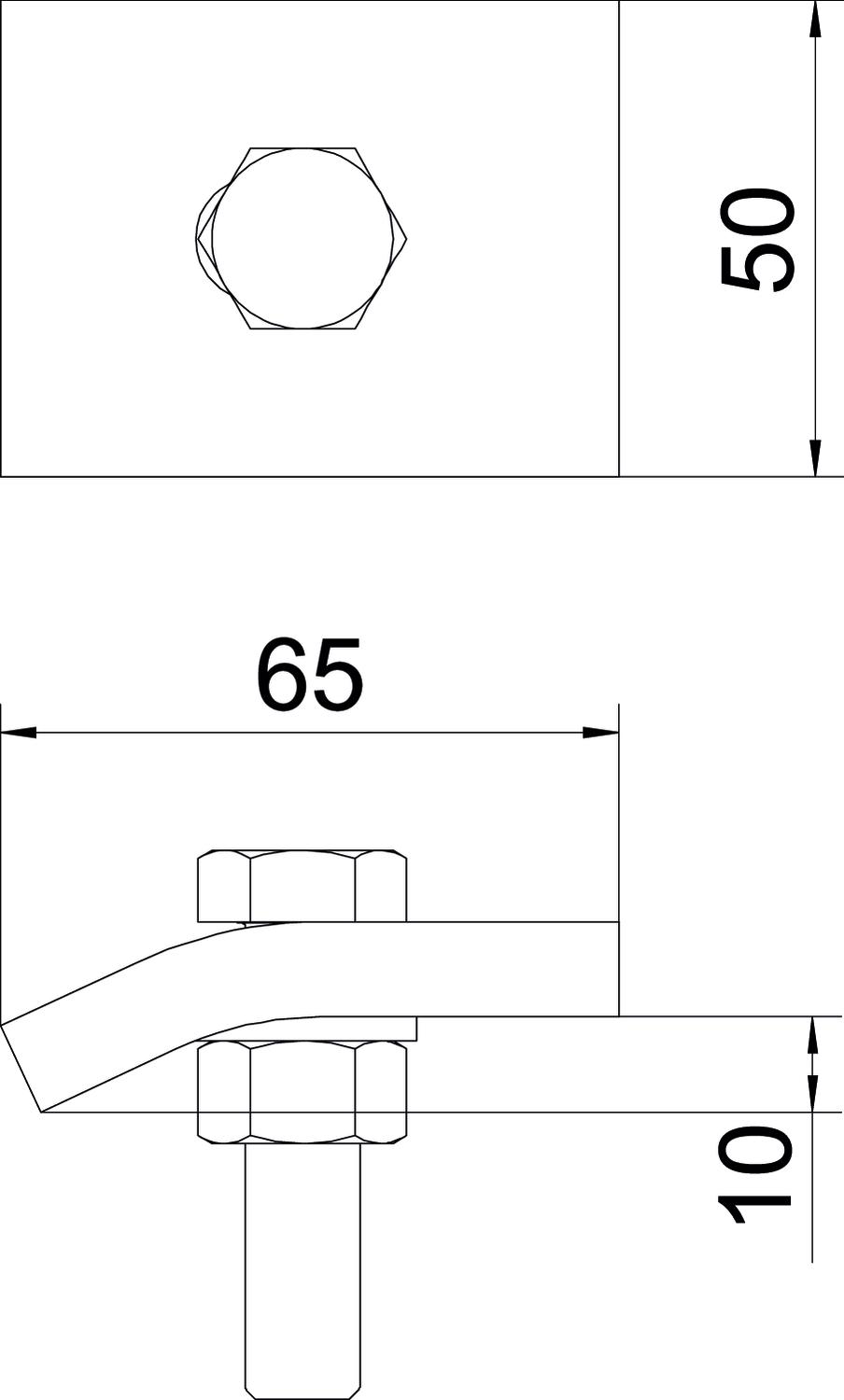

Dimension 60x50
F in kN 5,7 kN
Height 10 mm
Material Steel
Surface Hot-dip galvanised
Thread metric 12
All types

All types

Types Height F in kN Item no. Quantity SSU
KWS 5 FT 5 mm 5.7 kN 6355218
10 Pair
KWS 10 FT 10 mm 5.7 kN 6355226
10 Pair
KWS 15 FT 15 mm 5.7 kN 6355234
10 Pair
KWS 20 FT 20 mm 5.7 kN 6355242
10 Pair
KWS 25 FT 25 mm 5.7 kN 6355250
10 Pair
Downloads

Download

Download
Download

EU declaration of conformity KWS 10 FT / 6355226 , 0.11MB , pdf
Download
REACH Declaration of conformity KWS 10 FT / 6355226 , 0.12MB , pdf
Download
RoHS Declaration of conformity KWS 10 FT / 6355226 , 0.12MB , pdf
Download

Download
Download

KWS 10 FT / 6355226
