Clamping angle KWH FT 5 | 5.7

morepic-1

morepic-2

Clamping angle KWH FT

Item no. 6355021 | EAN 4012196194476

Item no. / Types

Height

F in kN	5.7 kN

Product description

Product description

Clamping angle, with hook-head bolt, type KWH, for fastening in the mounting rail, type MS5030.

Technical data

Technical data

Bolt	M12 x 40
Dimension	60x50
F in kN	5,7 kN
Height	5 mm

Material	Steel
Surface	Hot-dip galvanised
Thread metric	12

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
KWH 5 FT	5 mm	5.7 kN	6355021	Pair	10 Pair

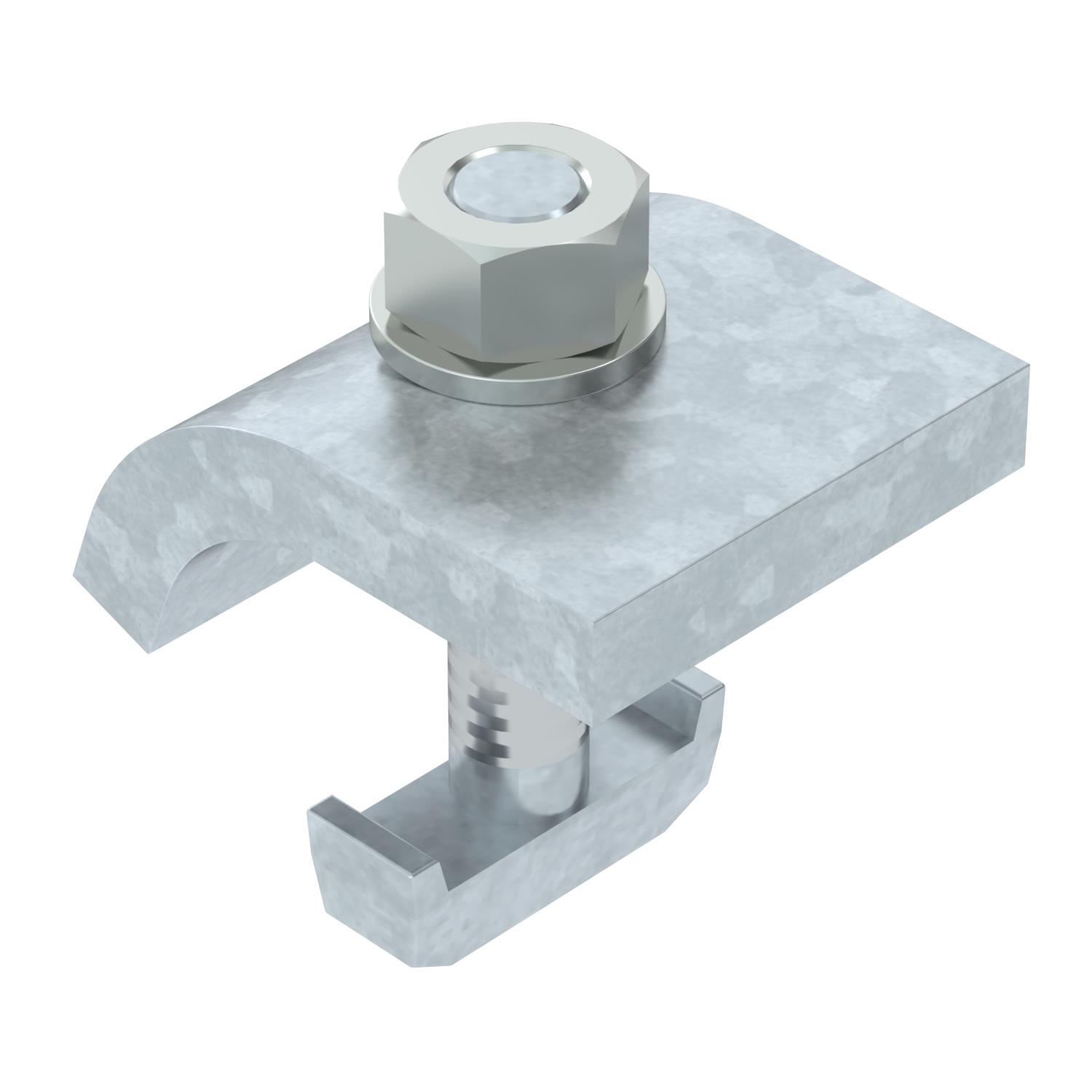

KWH 10 FT	10 mm	5.7 kN	6355048	Pair	10 Pair

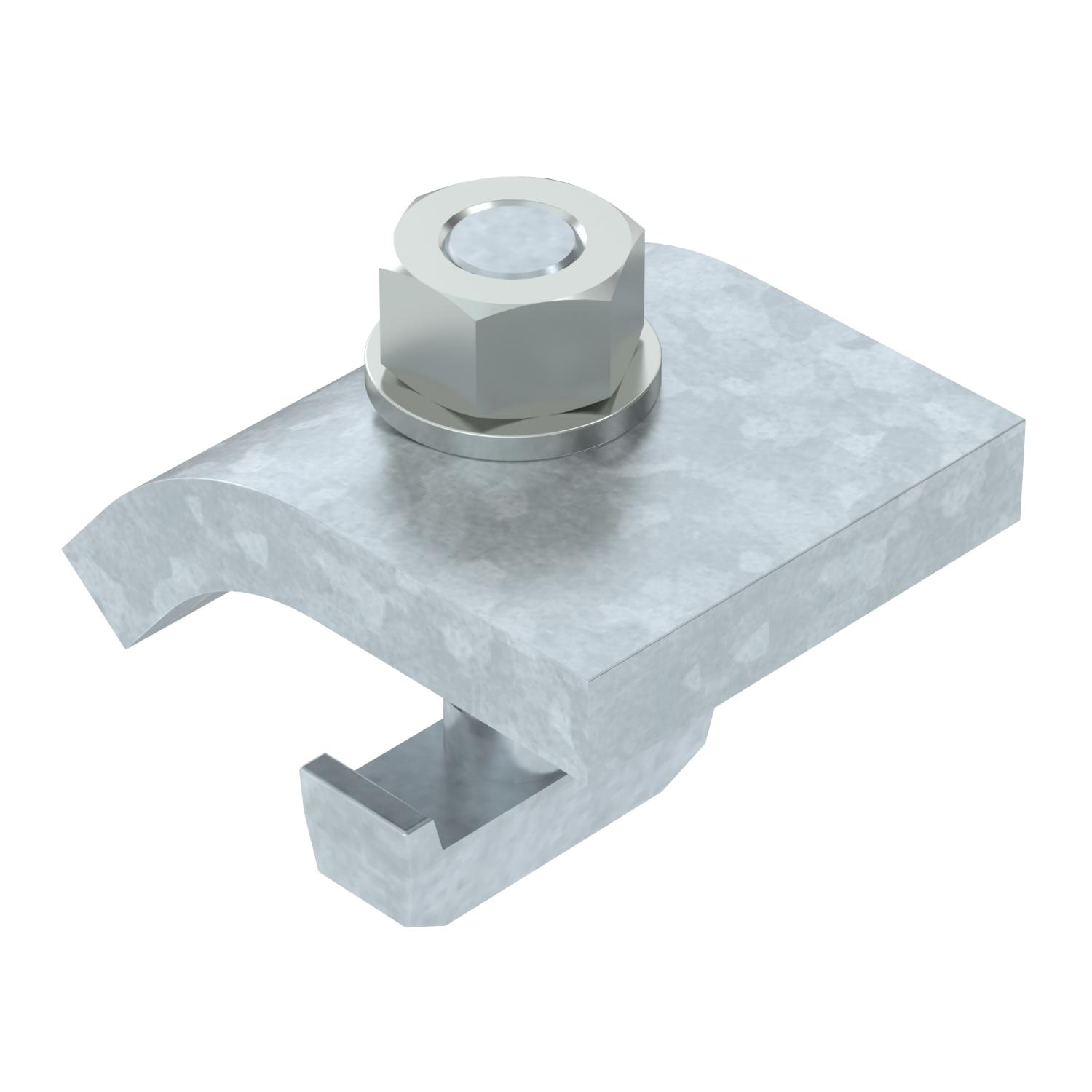

KWH 15 FT	15 mm	5.7 kN	6355056	Pair	10 Pair
KWH 20 FT	20 mm	5.7 kN	6355064	Pair	10 Pair
KWH 25 FT	25 mm	5.7 kN	6355072	Pair	10 Pair

Downloads

Data sheet KWH 5 FT / 6355021 , 0.16MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity KWH 5 FT / 6355021 , 0.11MB , pdf

REACH Declaration of conformity KWH 5 FT / 6355021 , 0.12MB , pdf

Download

RoHS Declaration of conformity KWH 5 FT / 6355021 , 0.12MB , pdf

Download

Mounting instructions Mounting instructions, clamp fastening , 0.04MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic KWH 5 FT / 6355021, 59.99 kB, jpg

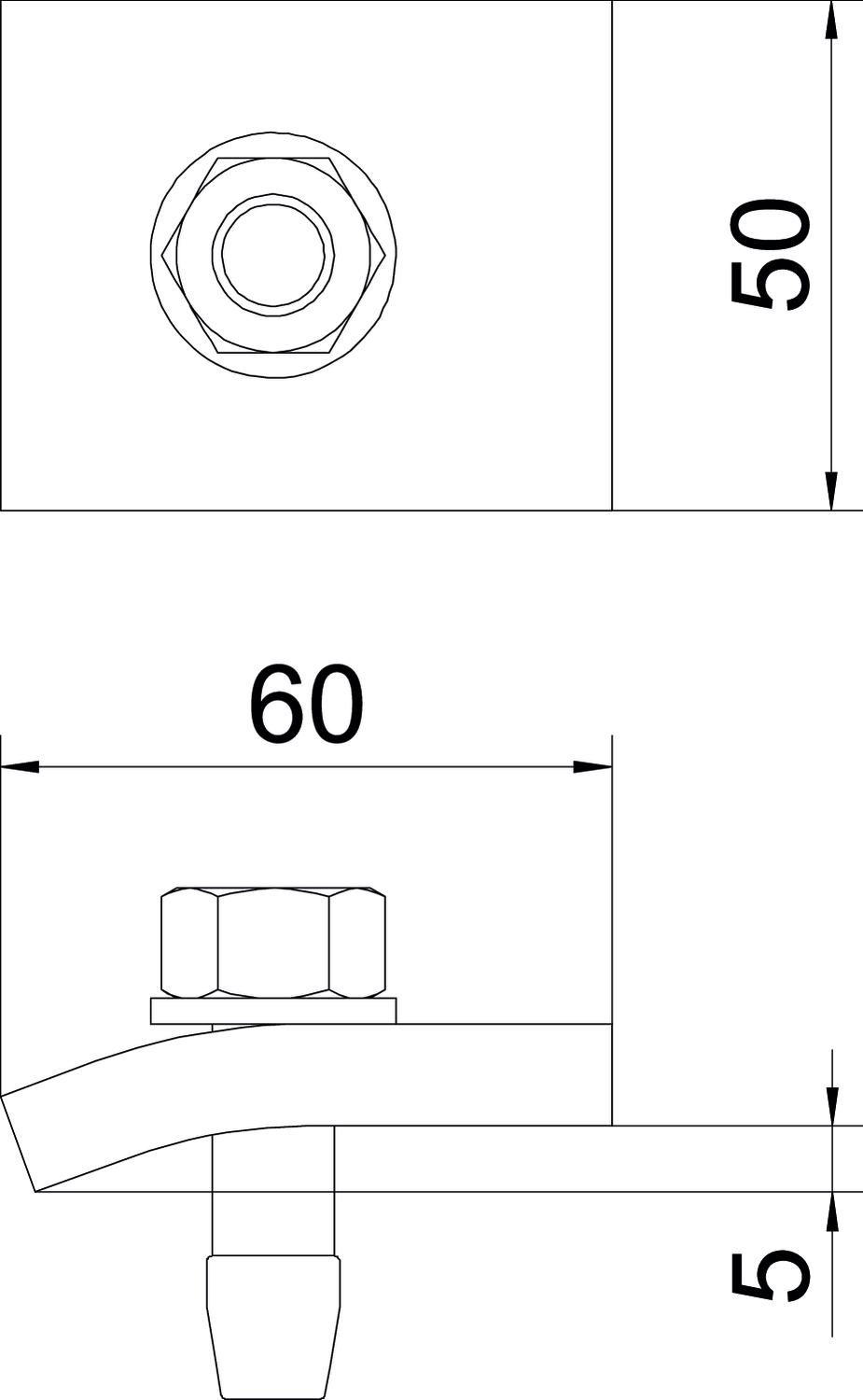

Scale drawing KWH 5 FT / 6355021, 51.59 kB, jpg

KWH 5 FT / 6355021

6355021_KSTP1.STP, 150.44 kB
