Clamping angle KWH FT 15 | 5.7

morepic-1

morepic-2

Clamping angle KWH FT

Item no. 6355056 | EAN 4012196194599

Item no. / Types

Height

F in kN	5.7 kN

Product description

Product description

Clamping angle, with hook-head bolt, type KWH, for fastening in the mounting rail, type MS5030.

Technical data

Technical data

Bolt	M12 x 50
Dimension	60x50
F in kN	5,7 kN
Height	15 mm

Material	Steel
Surface	Hot-dip galvanised
Thread metric	12

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
KWH 5 FT	5 mm	5.7 kN	6355021	Pair	10 Pair
KWH 10 FT	10 mm	5.7 kN	6355048	Pair	10 Pair
KWH 15 FT	15 mm	5.7 kN	6355056	Pair	10 Pair
KWH 20 FT	20 mm	5.7 kN	6355064	Pair	10 Pair
KWH 25 FT	25 mm	5.7 kN	6355072	Pair	10 Pair

Downloads

Data sheet KWH 15 FT / 6355056 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity KWH 15 FT / 6355056 , 0.11MB , pdf

REACH Declaration of conformity KWH 15 FT / 6355056 , 0.12MB , pdf

Download

RoHS Declaration of conformity KWH 15 FT / 6355056 , 0.12MB , pdf

Download

Mounting instructions Mounting instructions, clamp fastening , 0.04MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic KWH 15 FT / 6355056, 59.99 kB, jpg

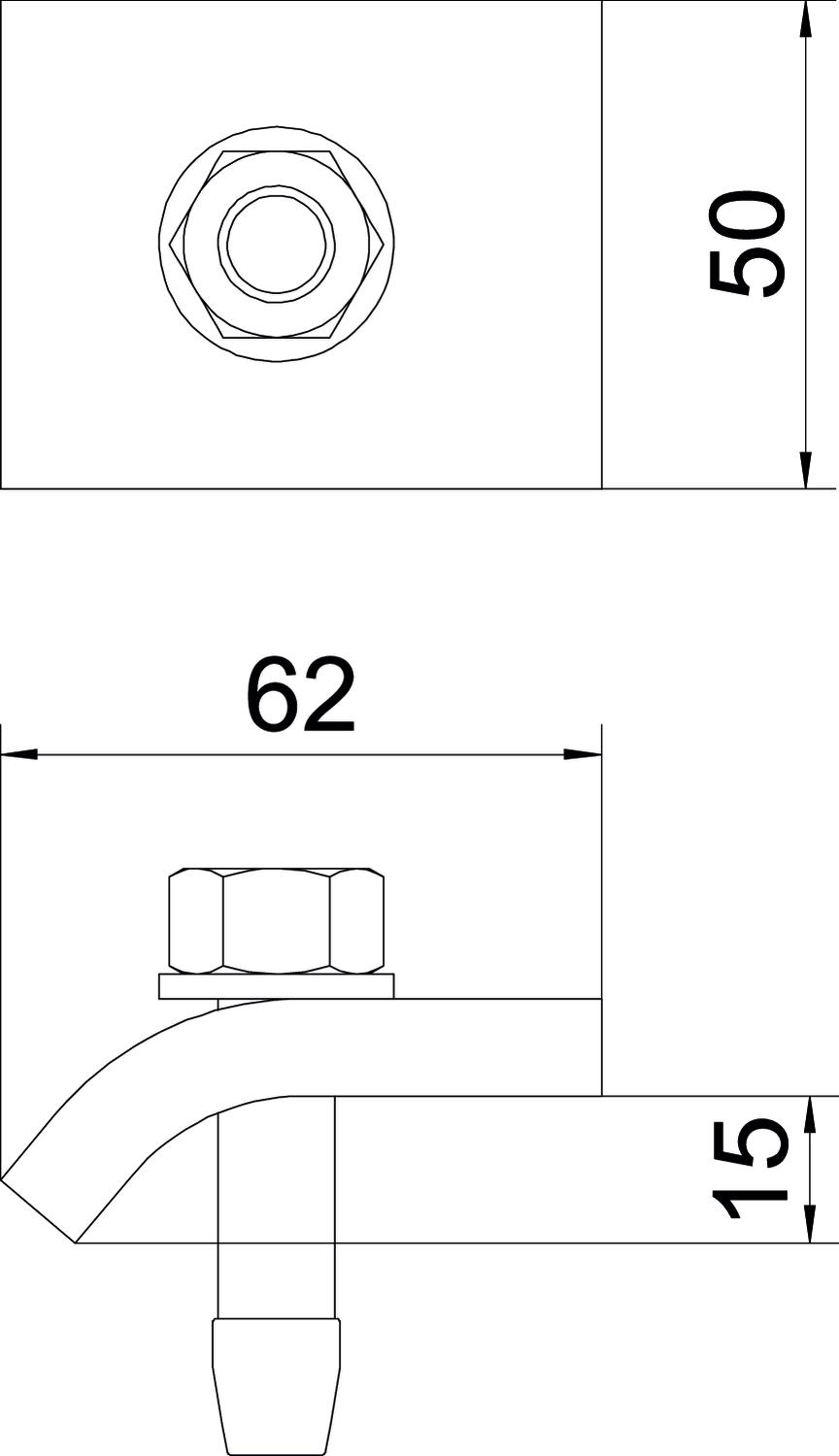

Scale drawing KWH 15 FT / 6355056, 49.70 kB, jpg

KWH 15 FT / 6355056

6355056_KSTP1.stp, 152.64 kB
